VENTURI

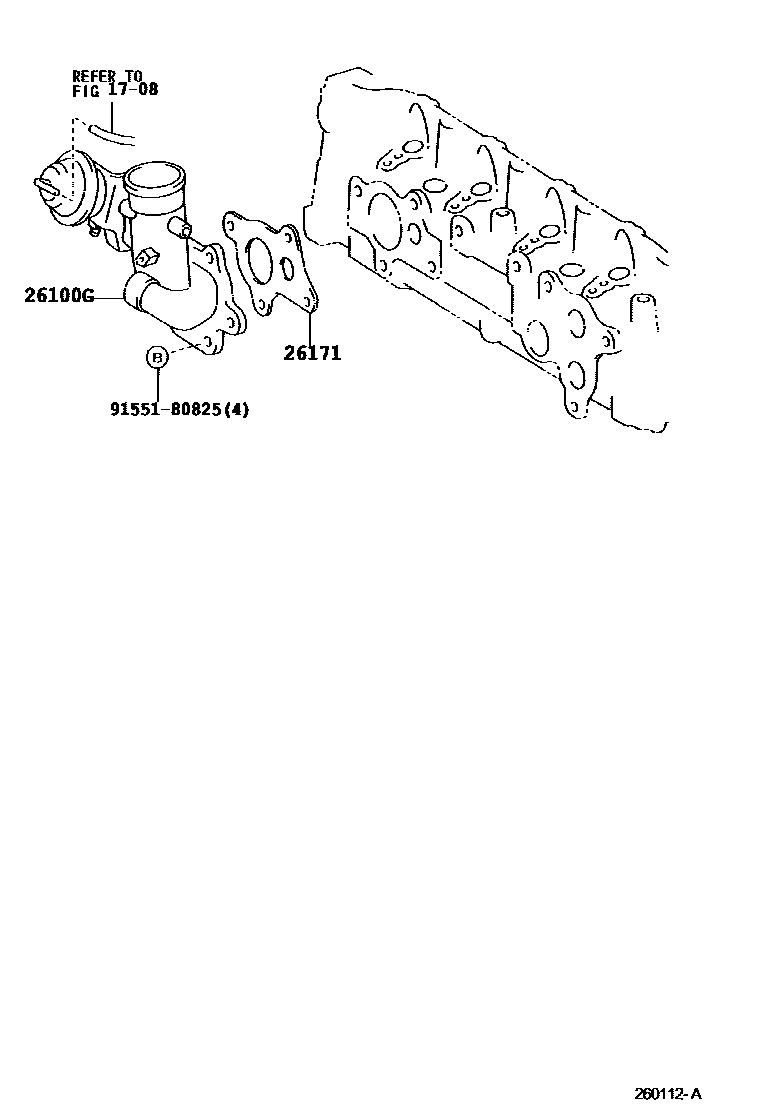

Parts diagram

1708VACUUM PIPING

→ Go to FIG 17-08

26100GBODY ASSY, DIESEL THROTTLE

main26100-33010i200302

26171GASKET, VENTURI

main26171-0N010i200302-200307

main26171-33011i200307

9155180825

main91551-80825

4 parts on this diagram · 1 diagram in section
