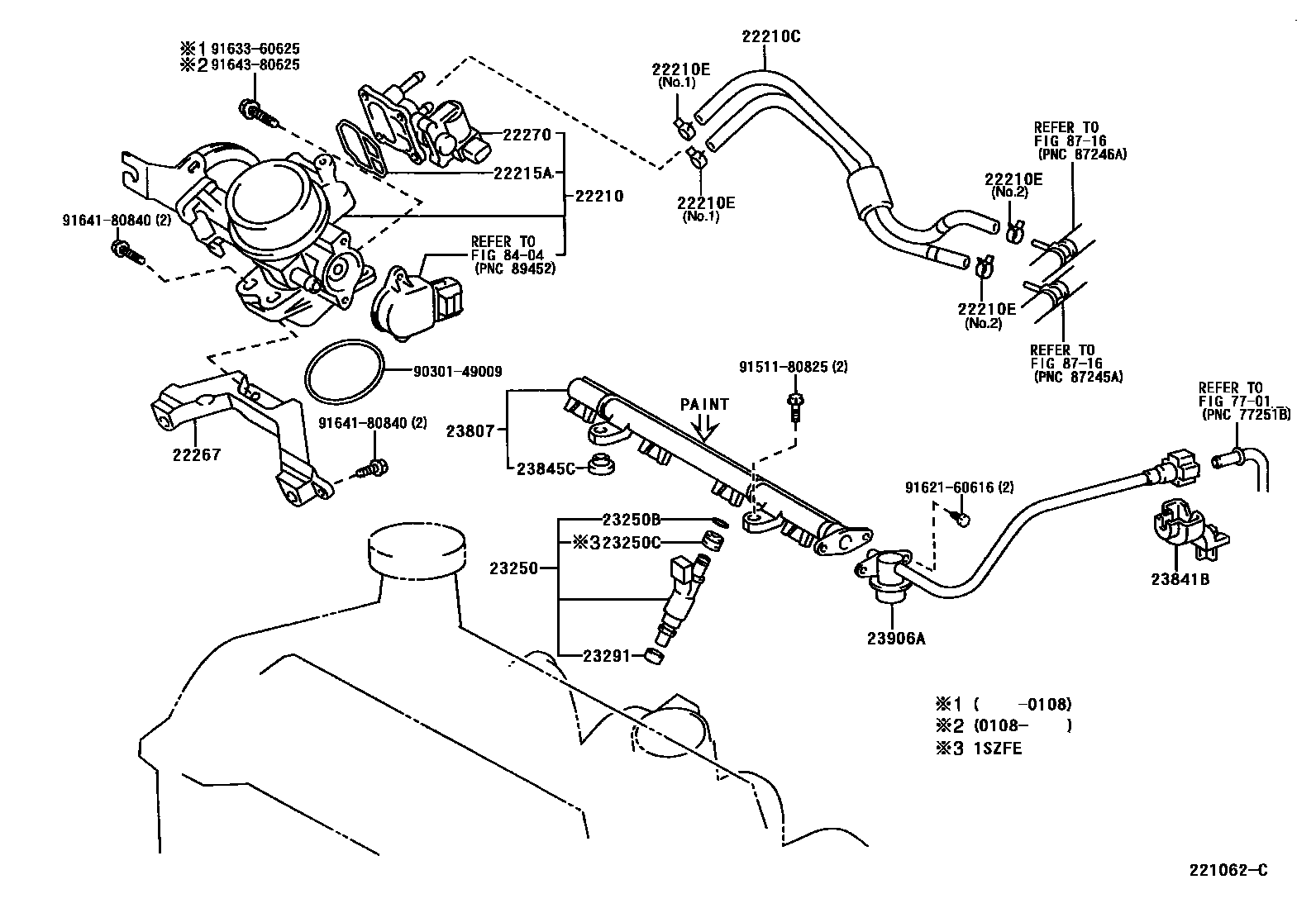

FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1 0005 1

22210BODY ASSY, THROTTLE

main22030-23010i1SZFE..SCP10..FRP..5FS200302

main22210-0J010i1SZFE,2SZFE..SCP1#..FRP..(4FC,5F)200101-200302

sub22210-0J011

22210CHOSE, WATER BY-PASS, NO.1

main16260-0J010i1SZFE,2SZFE..SCP1#..FRP..(4FC,5F)200302

(L)

main16260-0J020i1SZFE..SCP10..FRP..5FS200302

main16260-23010i1SZFE,2SZFE..SCP1#..FRP..(4FC,5F)200302

(J)

main16260-23010i1SZFE,2SZFE..SCP1#200101-200302

22210ECLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1)

main90466-12001i1SZFE,2SZFE..SCP1#..FRP200101-200302

NO.2

main96135-41100i1SZFE..SCP10200101-200204

NO.1

sub96135-51100

main96135-51100i1SZFE,2SZFE..SCP1#..FRP200204-200302

NO.1

22215AGASKET, IDLE SPEED CONTROL VALVE

main22215-74400i1SZFE,2SZFE..SCP1#..FRP..(4FC,5F)200101-200302

22267BRACKET, THROTTLE BODY

main22267-23010i1SZFE,2SZFE..SCP1#200101-200302

22270VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)

main22270-23020i1SZFE,2SZFE..SCP1#..FRP..(4FC,5F)200101-200302

23250INJECTOR ASSY, FUEL

main23209-09010i1SZFE..SCP10200101-200302

main23209-09020i2SZFE..SCP12200205-200302

23250BRING, O(FOR FUEL INJECTOR)

main90080-30100i1SZFE..SCP10..FRP..(SOL,TRSTD)..5F200106-200302

(L)

main90301-07024i2SZFE..SCP12..FRP;1SZFE..SCP10..FRP..5FS;1SZFE..SCP10..FRP..TSGS200205-200302

main90301-07030i1SZFE..SCP10200106-200302

(J)

main90301-07030i1SZFE..SCP10200101-200106

23250CGROMMET(FOR FUEL INJECTOR)

main90080-48058i1SZFE..SCP10200101-200302

23291INSULATOR, INJECTOR VIBRATION

main23291-0J010i1SZFE..SCP10..FRP..(SOL,TRSTD)..5F200101-200302

main23291-0J020i2SZFE..SCP12..FRP;1SZFE..SCP10..FRP..5FS;1SZFE..SCP10..FRP..TSGS200205-200302

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-23020i1SZFE..SCP10200101-200205

sub23807-23030

main23807-23020i2SZFE..SCP12;1SZFE..SCP10..RHD200205-200302

NO PAINT

sub23807-23030

main23807-23021i1SZFE,2SZFE..SCP1#..FRP200310

main23807-23030i1SZFE,2SZFE..SCP1#..FRP200302-200310

sub23807-23021

main23807-23030i1SZFE,2SZFE..SCP1#..LHD200205-200302

BLUE PAINTED

sub23807-23021

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-28010i1SZFE,2SZFE..SCP1#200101-200302

sub23841-21050

23845CINSULATOR, FUEL PIPE

main23845-23010i1SZFE,2SZFE..SCP1#200101-200302

23906AHOSE SUB-ASSY, FUEL

main23906-0J011i1SZFE..SCP10200101-200511

sub23906-0J012

main23906-0J020i2SZFE..SCP12..FRP200205-200511

sub23906-0J021

7701

8404

8716

9030149009

main90301-49009

9151180825

main91511-80825

9162160616

main91621-60616

9163360625

main91633-60625

9164180840

main91641-80840

9164380625

main91643-80625

23 parts on this diagram · 5 diagrams in section
