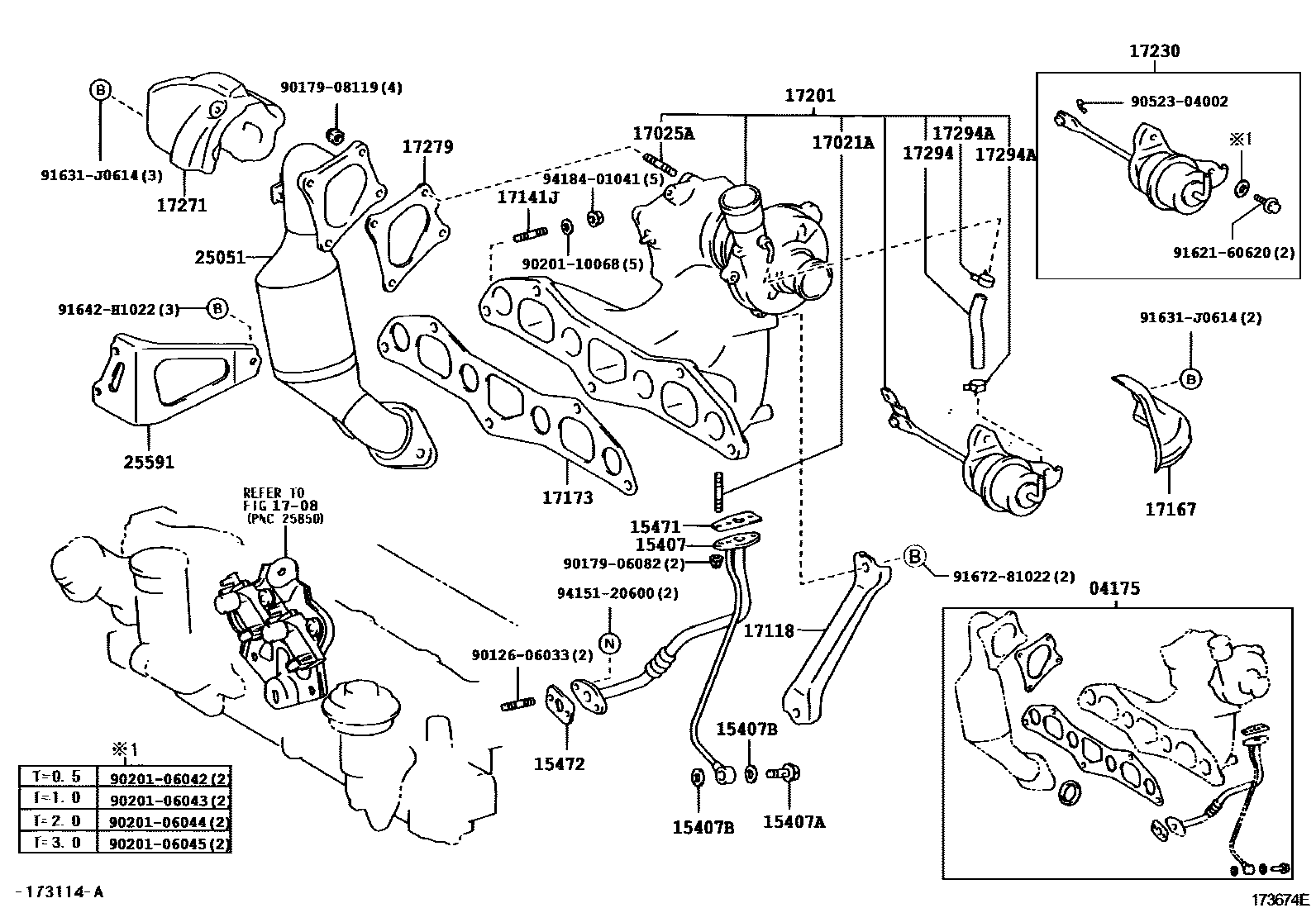

MANIFOLD
04175GASKET KIT, TURBOCHARGER
15407PIPE SUB-ASSY, TURBO OIL INLET
15407ABOLT, UNION(FOR TURBO OIL INLET PIPE)
15407BGASKET(FOR TURBO OIL INLET PIPE)
15471GASKET, TURBO OIL INLET
15472GASKET, TURBO OIL OUTLET, NO.1
17021ABOLT, STUD(FOR BEARING HOUSING)
17025ABOLT, STUD(FOR TURBINE HOUSING)
1708VACUUM PIPING
17118STAY, MANIFOLD
17141MANIFOLD, EXHAUST
(L)
(J)
17141JBOLT, STUD(FOR EXHAUST MANIFOLD, RH)
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17173GASKET, EXHAUST MANIFOLD TO HEAD
(L)
(L)
(J)
(J)
17201TURBOCHARGER SUB-ASSY
17230ACTUATOR ASSY, W/BRACKET
17271INSULATOR, TURBO, NO.1
17279GASKET, TURBINE OUTLET ELBOW
17294HOSE, ACTUATOR
17294ACLIP(FOR ACTUATOR HOSE)
25051CONVERTER SUB-ASSY, EXHAUST MANIFOLD
*114=TOYOTA/0J010/Y
*115=TOYOTA/03-/Y
25591BRACKET, MANIFOLD SUPPORT
9012606033
main90126-06033
9017906082
main90179-06082
9017908119
main90179-08119
9020106042
main90201-06042
9020106043
main90201-06043
9020106044
main90201-06044
9020106045
main90201-06045
9020110068
main90201-10068
9052304002
main90523-04002
9162160620
main91621-60620
91631J0614
main91631-J0614
91642H1022
main91642-H1022
9167281022
main91672-81022
9415120600
main94151-20600
9418401041
main94184-01041
37 parts on this diagram · 4 diagrams in section
