V-BELT

1106TIMING GEAR COVER & REAR END PLATE

→ Go to FIG 11-06

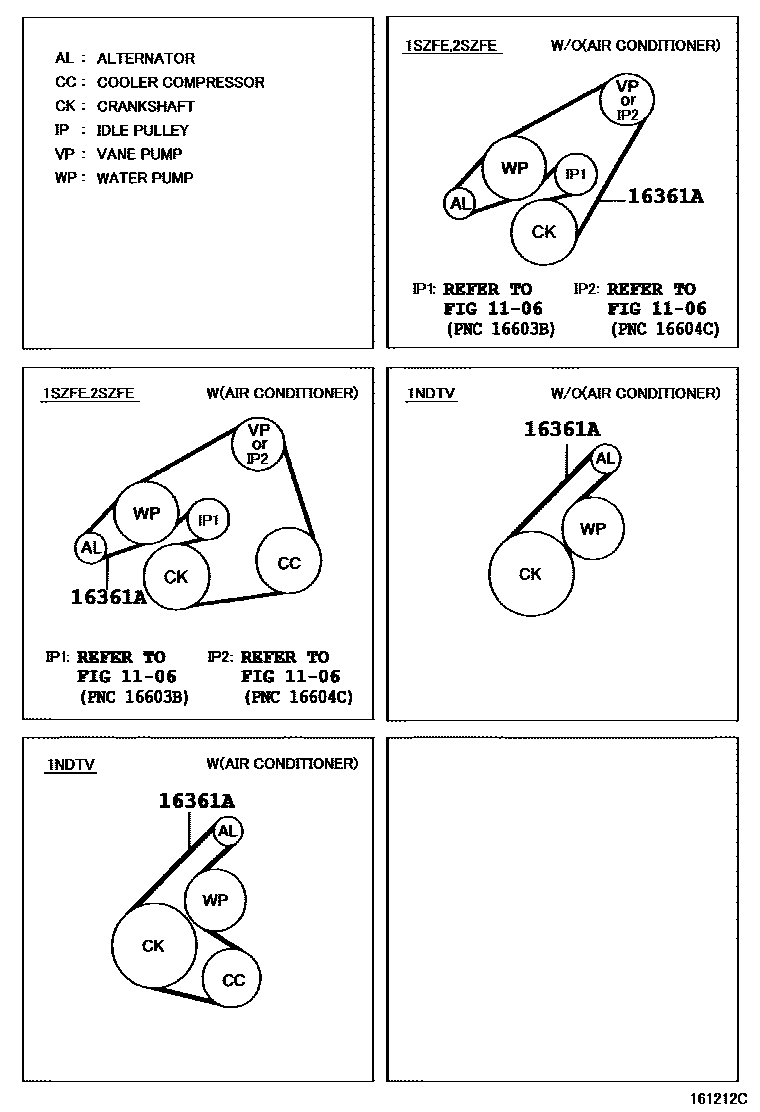

16361ABELT, V(FOR FAN & ALTERNATOR)

main90080-91198i1SZFE,2SZFE..SCP1#200101-200302

L=780

main90080-91199i1SZFE..SCP10200101-200302

W(AIR CONDITIONER)

main90080-91223i2SZFE..SCP12200205-200302

W(AIR CONDITIONER)

main99365-A0930i1NDTV..NLP10..FRP200302-200401

main99365-A1190i1NDTV..NLP10..FRP200302-200401

W(AIR CONDITIONER)

main99365-C0930i1NDTV..NLP10..FRP200401

main99365-C1190i1NDTV..NLP10..FRP200401

W(AIR CONDITIONER)

2 parts on this diagram · 1 diagram in section
