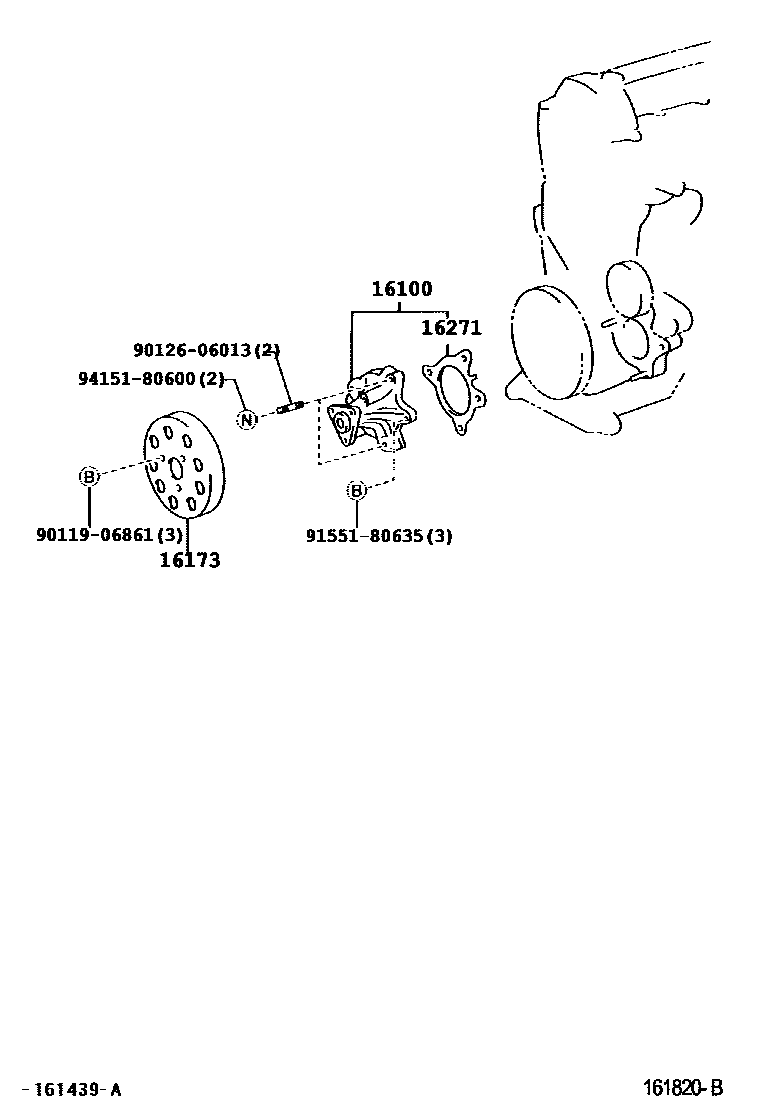

WATER PUMP

0001 1 0002 1

16100PUMP ASSY, ENGINE WATER

main16100-09140i1SZFE,2SZFE..SCP1#200101-200302

main16100-09141i1SZFE,2SZFE..SCP1#..FRP200306

main16100-29195i1NDTV..NLP10..FRP200302-200310

main16100-29196i1NDTV..NLP10..FRP200310

16173PULLEY, WATER PUMP

main16173-0J010i1SZFE,2SZFE..SCP1#..FRP200302

(L)

main16173-23030i1SZFE,2SZFE..SCP1#200101-200302

main16173-33010i1NDTV..NLP10..FRP200302

16271GASKET, WATER PUMP

main16271-0J010i1SZFE,2SZFE..SCP1#200101-200302

main16271-23020i1SZFE,2SZFE..SCP1#..FRP200306

main16271-33020i1NDTV..NLP10..FRP200302

9011906861

main90119-06861

9012606013

main90126-06013

9155180635

main91551-80635

9415180600

main94151-80600

7 parts on this diagram · 2 diagrams in section
