HORN

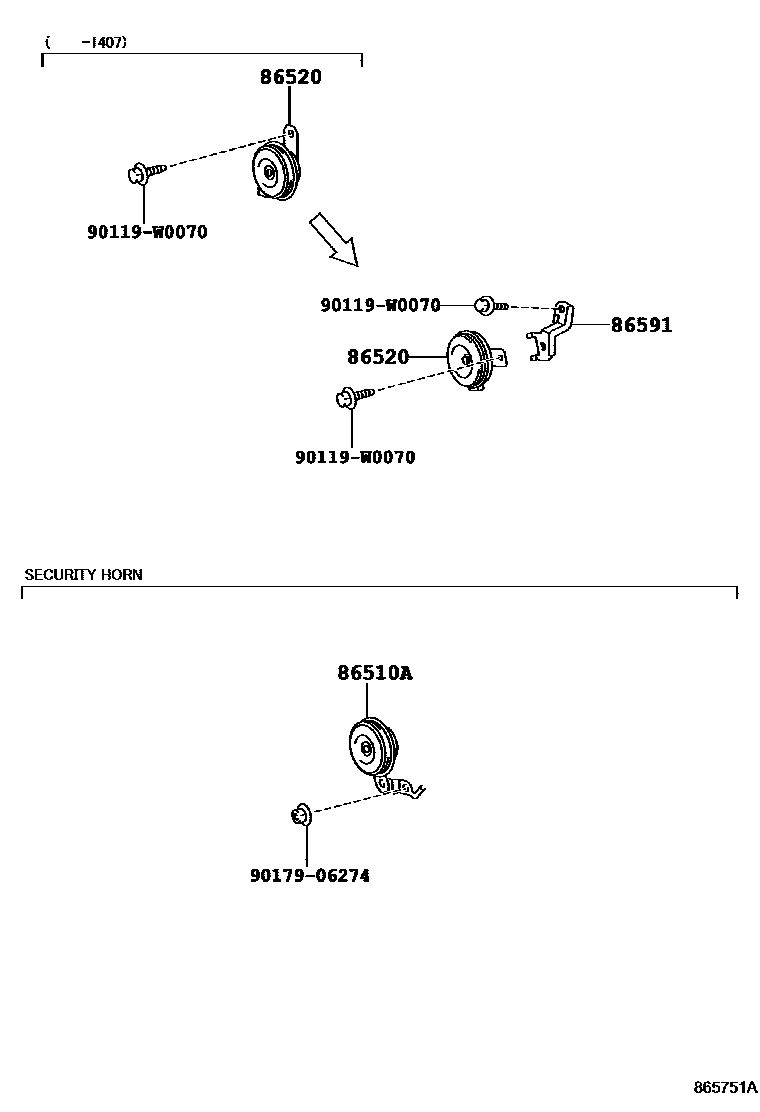

Parts diagram

86510AHORN ASSY, SECURITY

main86560-52010i201407-201607

MEXICO SPEC&WIRELESS DOOR LOCK-WITH(1 TRANSMITTER) & WITH(PANIC BUTTON)

86520HORN ASSY, LOW PITCHED

main86520-0D050i201305-201407

main86520-0D220i201407-201703

86591BRACKET, HORN

main86591-0D050i201407-201703

main86591-0D110i201703-201907

90119W0070

main90119-W0070

9017906274

main90179-06274

5 parts on this diagram · 2 diagrams in section
