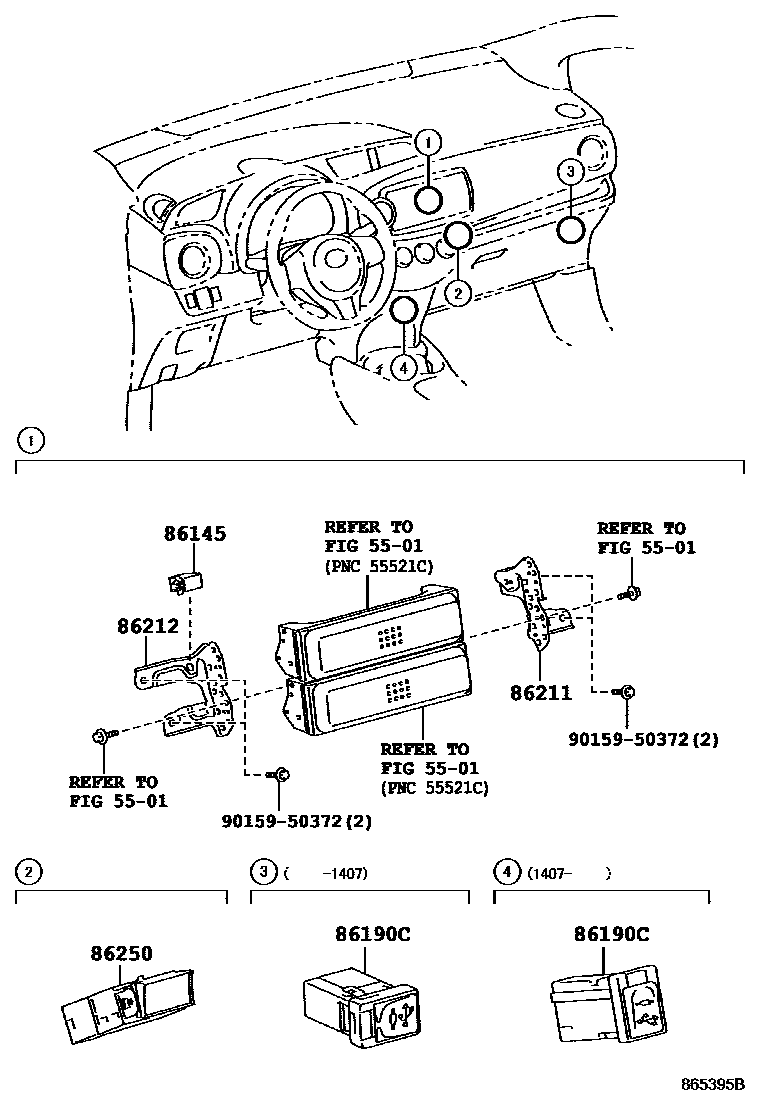

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1CONDENSER

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

86145CONNECTOR, ANTENNA MALE

main86145-52010iNCP131201305-201407

86190CADAPTER ASSY, STEREO JACK, NO.1

main86190-0D030iNCP131201407-201703

AUDIO JACK-WITH(AUX & USB)

main86190-0D070iNCP131201305-201407

AUDIO JACK-WITH(AUX & USB)

86211BRACKET, RADIO, NO.1

main86211-0D130iNCP131201407-201703

main86211-0D210iNCP131201703-201907

86212BRACKET, RADIO, NO.2

main86212-0D130iNCP131201407-201703

main86212-0D200iNCP131201703-201907

86250MICROPHONE ASSY, AMPLIFIER

main86250-0D010iNCP131201305-201407

MICROPHONE & MIKE-AMPLIFIER-WITH

main86250-0D030iNCP131201407-201703

MICROPHONE & MICROPHONE AMPLIFIER-WITH

9015950372

main90159-50372

7 parts on this diagram · 3 diagrams in section
