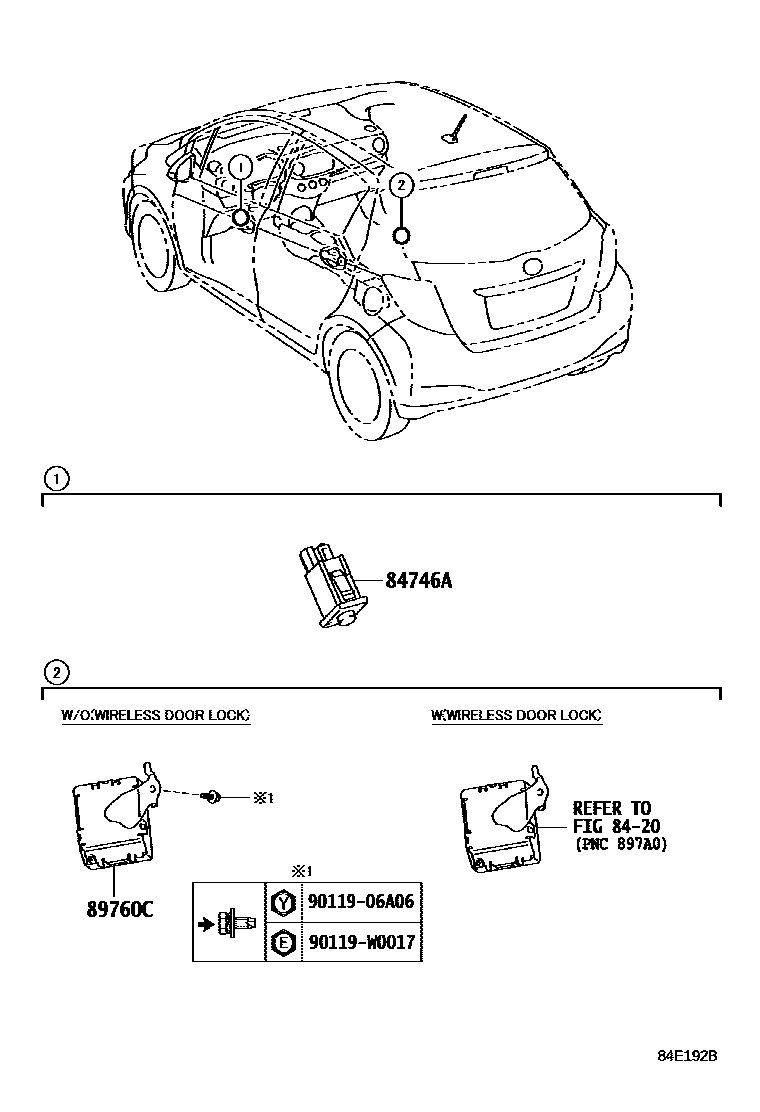

TIRE PRESSURE WARNING SYSTEM
8420WIRELESS DOOR LOCK
84746ASWITCH, TIRE PRESSURE WARNING, NO.1
MEXICO SPEC; MEXICO SPEC&WIRELESS DOOR LOCK-WITH(1 TRANSMITTER) & WITH(PANIC BUTTON)
89760CRECEIVER ASSY, TIRE PRESSURE MONITOR
MEXICO SPEC; REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL CR LABEL +ID&MEXICO SPEC
9011906A06
main90119-06A06
90119W0017
main90119-W0017
5 parts on this diagram · 1 diagram in section
