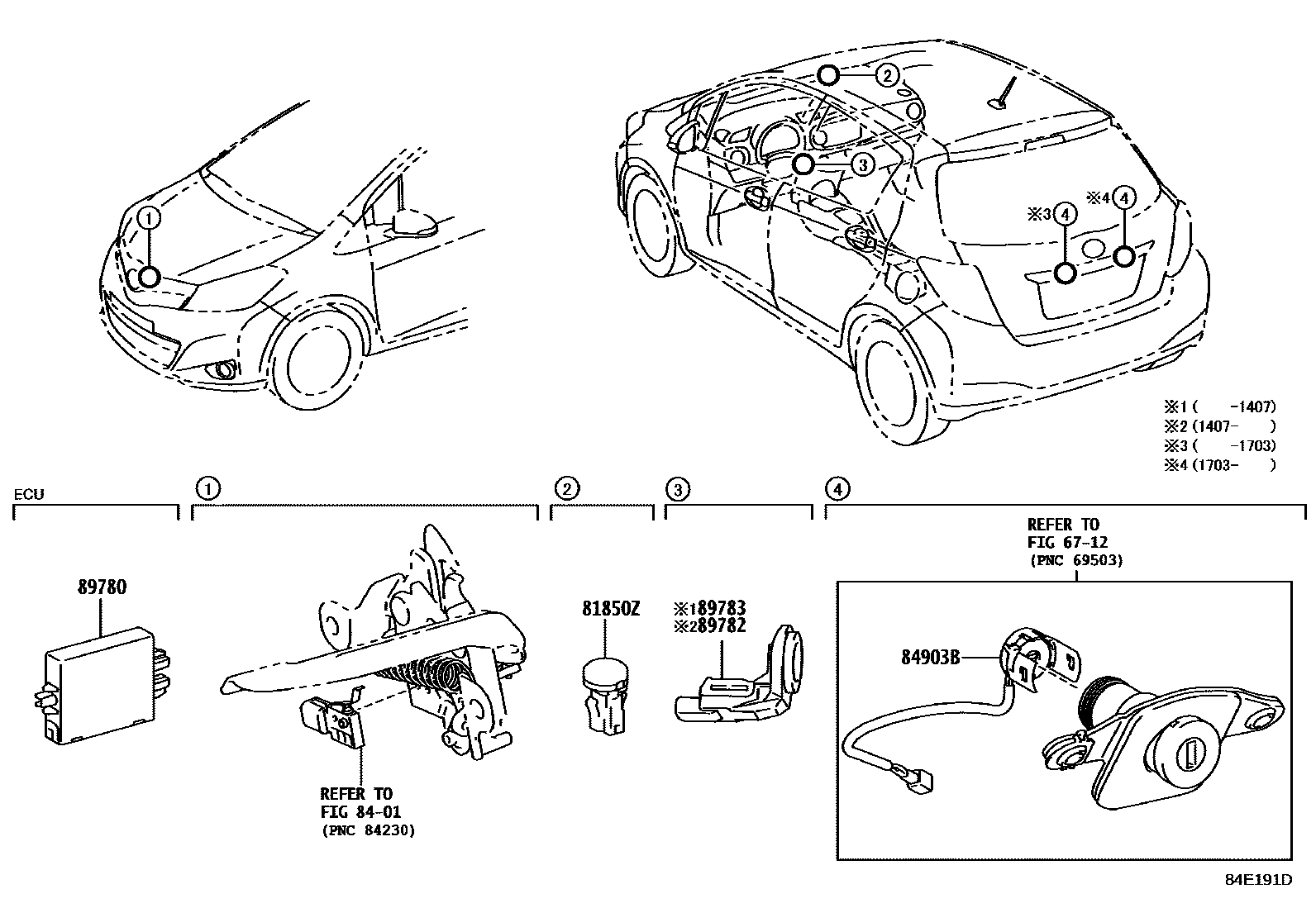

ANTI-THEFT DEVICE
6712LOCK CYLINDER SET
81850ZLAMP ASSY, THEFT WARNING INDICATOR
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)&WIRELESS DOOR LOCK-WITH(2 TRANSMITTER)&POWER WINDOW-WITH(FRONT & REAR); ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)&WIRELESS DOOR LOCK-WITH(2 TRANSMITTER)&POWER WINDOW-WITH(FRONT ONLY); PUERTO RICO SPEC&WIRELESS DOOR LOCK-WITH(1 TRANSMITTER)
8401SWITCH & RELAY & COMPUTER
84903BSWITCH SUB-ASSY, DOOR UNLOCK
89780COMPUTER ASSY, TRANSPONDER KEY
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)&WIRELESS DOOR LOCK-WITH(2 TRANSMITTER) & WITH(PANIC BUTTON)
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)&WIRELESS DOOR LOCK-WITH(2 TRANSMITTER)&POWER WINDOW-WITH(FRONT & REAR); ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)&WIRELESS DOOR LOCK-WITH(2 TRANSMITTER)&POWER WINDOW-WITH(FRONT ONLY)
89782COIL, TRANSPONDER KEY
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)&WIRELESS DOOR LOCK-WITH(2 TRANSMITTER) & WITH(PANIC BUTTON)
89783AMPLIFIER, TRANSPONDER KEY
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)&WIRELESS DOOR LOCK-WITH(2 TRANSMITTER)&POWER WINDOW-WITH(FRONT & REAR); ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)&WIRELESS DOOR LOCK-WITH(2 TRANSMITTER)&POWER WINDOW-WITH(FRONT ONLY)
7 parts on this diagram · 1 diagram in section
