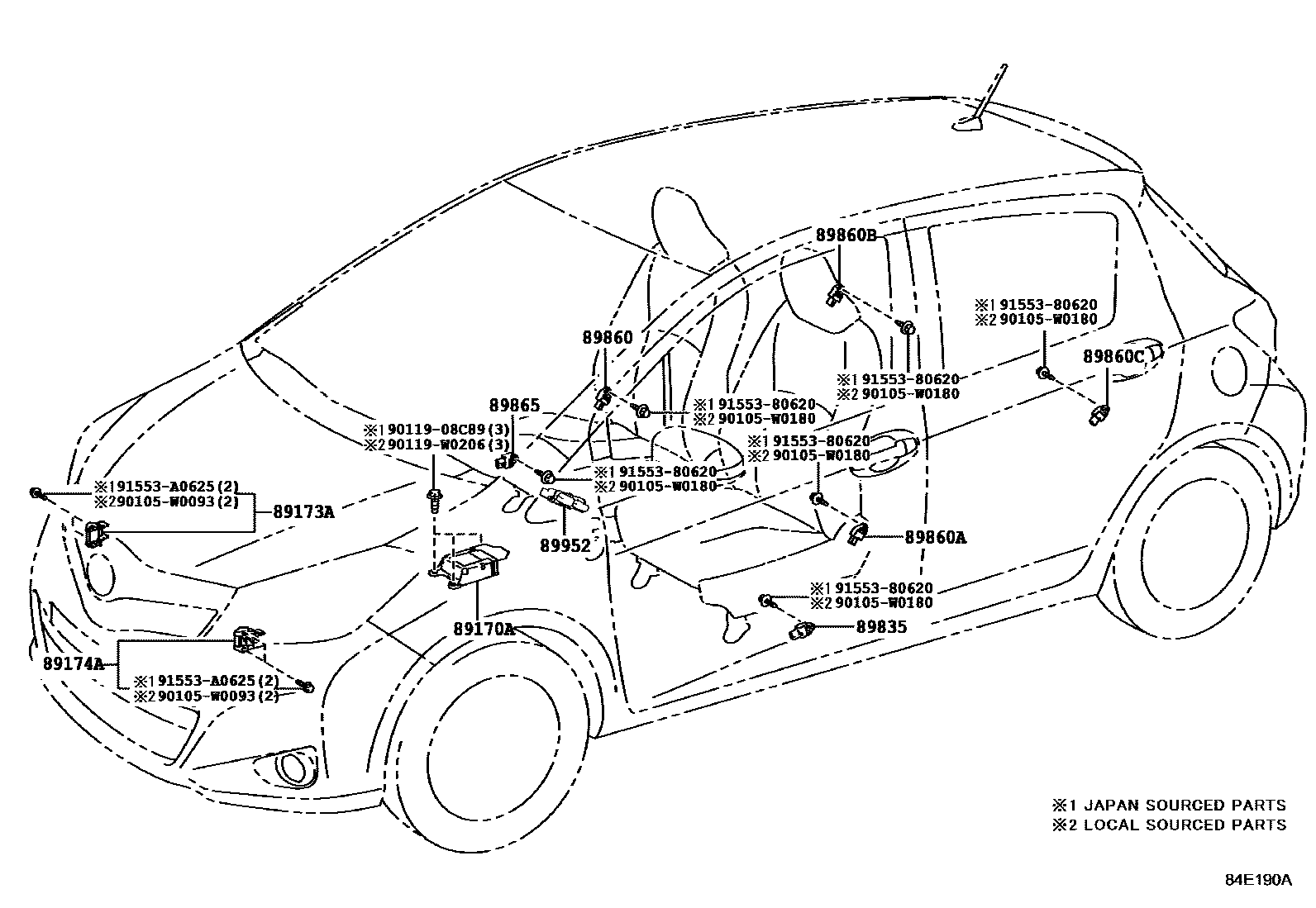

AIR BAG
89170ACOMPUTER ASSY, AIRBAG
89173ASENSOR, AIRBAG, FRONT RH
89174ASENSOR, AIRBAG, FRONT LH
89835SENSOR, DOOR SIDE AIRBAG, LH
89860SENSOR ASSY, SIDE AIRBAG, RH
89860ASENSOR ASSY, SIDE AIRBAG, LH
89860BSENSOR ASSY, SIDE AIRBAG, RH, NO.2
89860CSENSOR ASSY, SIDE AIRBAG, LH, NO.2
89865SENSOR, DOOR SIDE AIRBAG, RH
89952COMPUTER, OCCUPANT DETECTION
90105W0093
main90105-W0093
90105W0180
main90105-W0180
9011908C89
main90119-08C89
90119W0206
main90119-W0206
9155380620
main91553-80620
91553A0625
main91553-A0625
16 parts on this diagram · 1 diagram in section
