METER

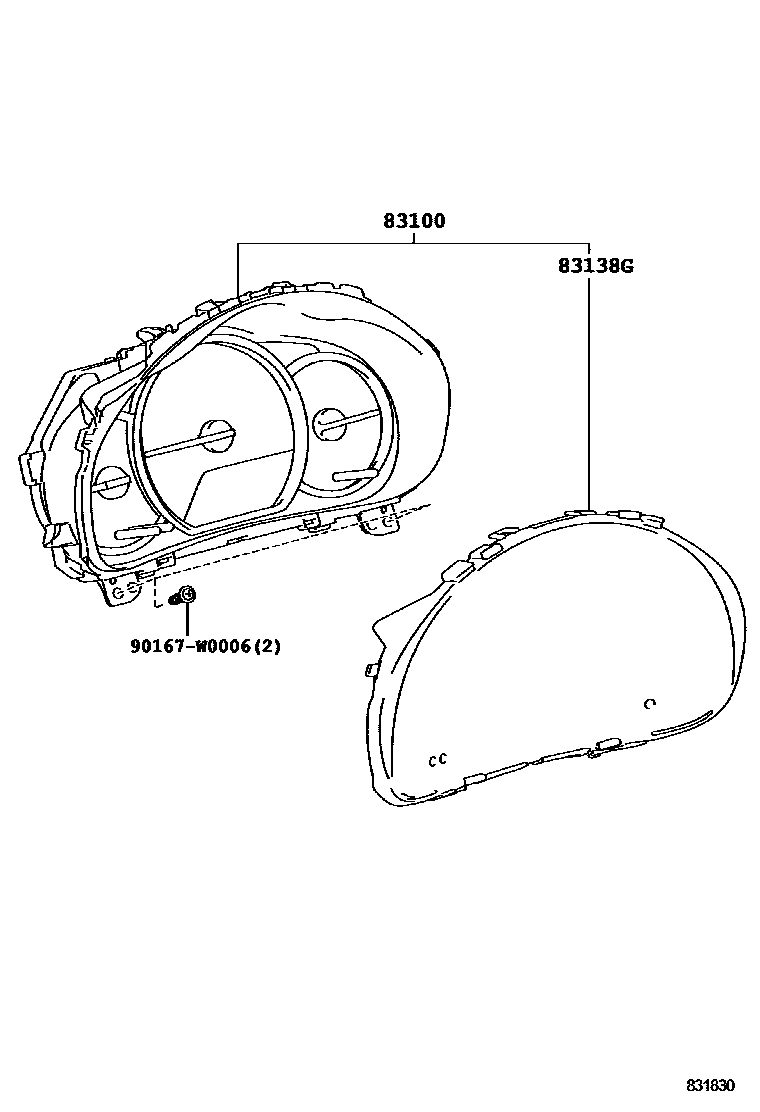

83100METER ASSY, COMBINATION

main83800-0U160i201407-201606

main83800-0UD10i201607-201610

SPEEDOMETER-MPH(MAIN) & KM/H,WITH(TACHOMETER)

main83800-0UD40i201607-201610

main83800-0UD41i201610-201703

main83800-F5490supersedes 83800-F5480i201703-201907

main83800-0U090supersedes 83800-5CA80i201407-201703

SPEEDOMETER-MPH(MAIN) & KM/H,WITHOUT(TACHOMETER)

main83800-0U110supersedes 83800-5CA60i201407-201606

SPEEDOMETER-MPH(MAIN) & KM/H,WITH(TACHOMETER)

main83800-0U130i201505-201606

SPEEDOMETER-MPH(MAIN) & KM/H,WITH(TACHOMETER)

main83800-0U150supersedes 83800-5CB00i201407-201606

MEXICO SPEC&SPEEDOMETER-KM/H(MAIN) & MPH,WITH(TACHOMETER); SPEEDOMETER-KM/H(MAIN) & MPH,WITH(TACHOMETER)

main83800-0UD11supersedes 83800-5CA60i201610-201703

SPEEDOMETER-MPH(MAIN) & KM/H,WITH(TACHOMETER)

main83800-0UD20i201607-201610

SPEEDOMETER-MPH(MAIN) & KM/H,WITH(TACHOMETER)

main83800-0UD21supersedes 83800-F5460i201610-201703

SPEEDOMETER-MPH(MAIN) & KM/H,WITH(TACHOMETER)

main83800-0UD30i201607-201610

SPEEDOMETER-KM/H(MAIN) & MPH,WITH(TACHOMETER)

main83800-0UD31supersedes 83800-5CB00i201610-201703

SPEEDOMETER-KM/H(MAIN) & MPH,WITH(TACHOMETER)

main83800-5CA00supersedes 83800-5CB00i201305-201407

SPEEDOMETER-ANALOGUE KM/H(MAIN) & MILE,W(TACHO)

main83800-5CA60supersedes 83800-5CA80i201305-201407

SPEEDOMETER-ANALOGUE MILE(MAIN) & KM/H,W/O(TACHO)

main83800-5CA80supersedes 83800-5CA60i201305-201407

SPEEDOMETER-ANALOGUE MILE(MAIN) & KM/H,W(TACHO)

main83800-5CA90supersedes 83800-F5460i201305-201407

SPEEDOMETER-ANALOGUE MILE(MAIN) & KM/H,W/(TACHO) HI

main83800-F5470supersedes 83800-F5460i201703-201907

SPEEDOMETER-MPH(MAIN) & KM/H,WITH(TACHOMETER)

83138GGLASS, COMBINATION METER

main83852-0U250i201407-201703

main83852-5CB20i201305-201407

90167W0006

3 parts on this diagram · 1 diagram in section
