INTERIOR LAMP

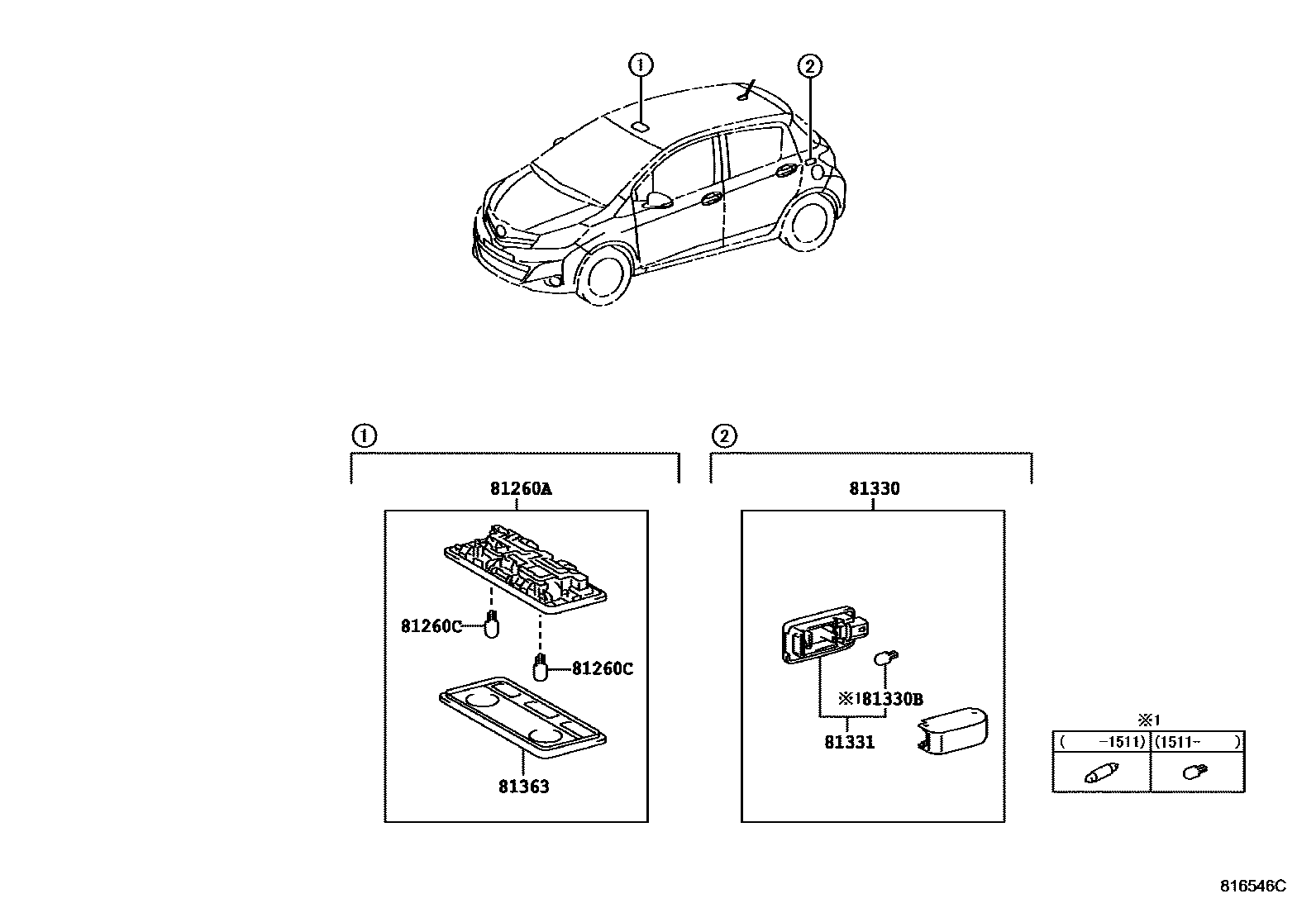

Parts diagram

81260ALAMP ASSY, MAP

main81260-0D070-B0i201407-201703

LT.GRAY,TRIM0#,1#,2#,3#; LT.GRAY,TRIM1#,2#; LT.GRAY,TRIM2#,3#

81260CBULB(FOR MAP LAMP)

main90981-12010×2i201407-201703

12V 5W

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81330-02060i201511-201703

main81330-05050i201305-201407

81330BBULB, LUGGAGE COMPARTMENT LAMP

main90981-WB021i201511-201703

12V 5W

main90981-WE003i201305-201407

12V 5W

81331LENS, LUGGAGE COMPARTMENT LAMP

main81250-02030i201703-201907

main81250-05040i201305-201407

81363LENS, ROOM LAMP, OUTER

main81363-0D010i201407-201703

6 parts on this diagram · 1 diagram in section
