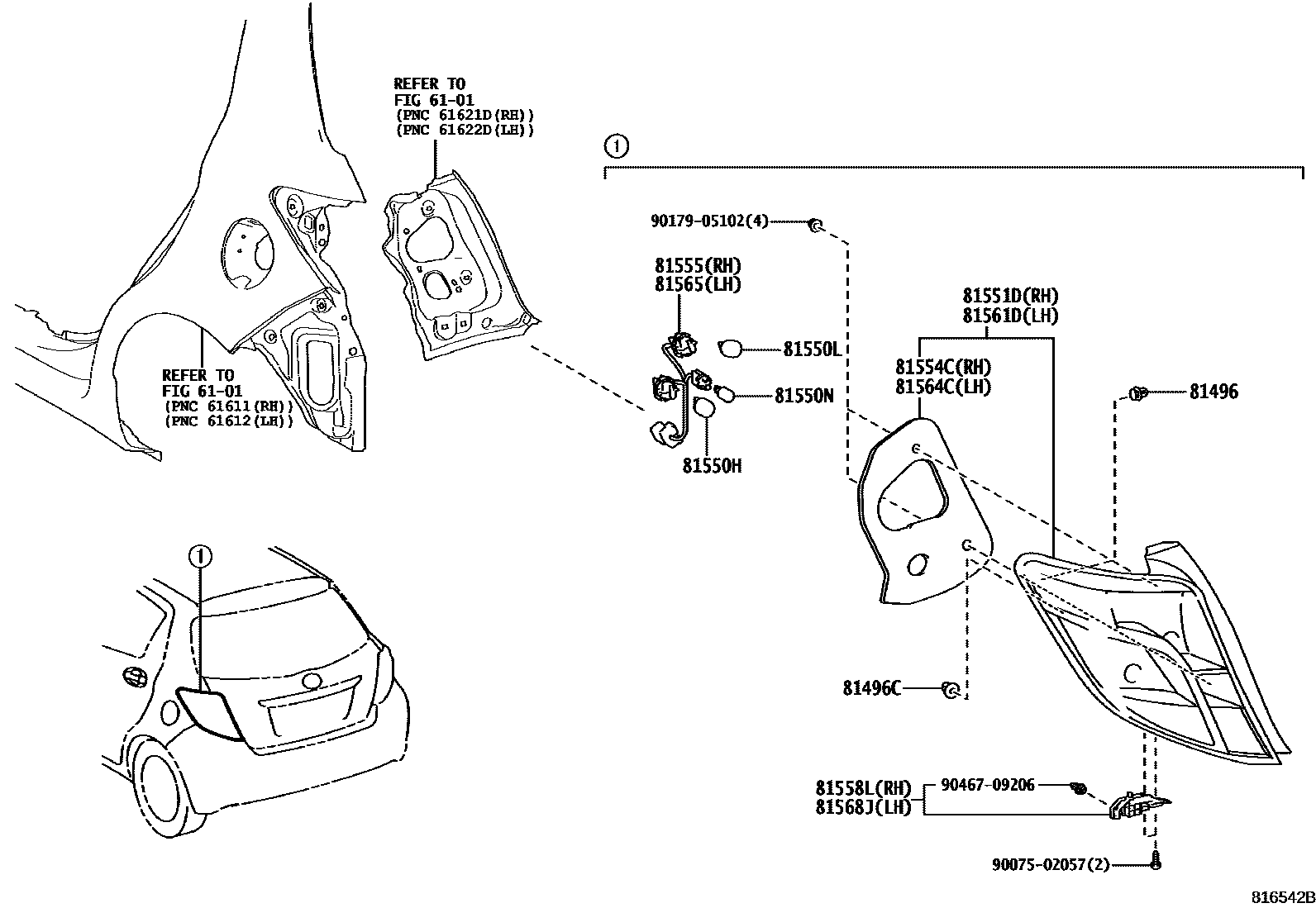

REAR COMBINATION LAMP

0001 1 0002 1 0003 1

6101SIDE MEMBER

→ Go to FIG 61-01

81496GUIDE, REAR COMBINATION LAMP

main81496-60010×2iNCP131201407-201703

81496CGUIDE, REAR COMBINATION LAMP, NO.2

main81496-52020×2iNCP131201407-201703

81550LAMP ASSY, REAR COMBINATION, RH

main81550-0DB80iNCP131201703-201907

81550HBULB, TAIL & STOP LAMP

main90981-13044×2iNCP131201407-201703

12V 21/5W

main90981-13094×2iNCP131201703-201907

12V 21/5W

81550LBULB, REAR TURN SIGNAL LAMP

main90981-13093×2iNCP131201407-201703

12V 21W

main90981-15021×2iNCP131201305-201407

12V 21W,AMBER

81550NBULB, BACK UP LAMP

main90981-11059×2iNCP131201305-201407

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-0D620iNCP131201407-201703

main81551-52820iNCP131201305-201407

81554CPACKING, REAR COMBINATION LAMP BODY, RH

main81552-0DB60iNCP131201703-201907

main81554-0D600iNCP131201407-201703

main81554-52820iNCP131201305-201407

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-0D600iNCP131201407-201703

main81555-0DB60iNCP131201703-201907

main81555-52820iNCP131201305-201407

81558LPROTECTOR, REAR COMBINATION LAMP, RH

main81558-0D600iNCP131201407-201703

main81558-52810iNCP131201305-201407

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-0D620iNCP131201407-201703

main81561-52760iNCP131201305-201407

81564CPACKING, REAR COMBINATION LAMP BODY, LH

main81554-0D600iNCP131201407-201703

main81562-0DB60iNCP131201703-201907

main81564-52760iNCP131201305-201407

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-0D600iNCP131201407-201703

main81555-0DB60iNCP131201703-201907

main81565-52760iNCP131201305-201407

81568JPROTECTOR, REAR COMBINATION LAMP, LH

main81568-0D600iNCP131201407-201703

main81568-52750iNCP131201305-201407

9007502057

main90075-02057

9017905102

main90179-05102

9046709206

main90467-09206

18 parts on this diagram · 3 diagrams in section
