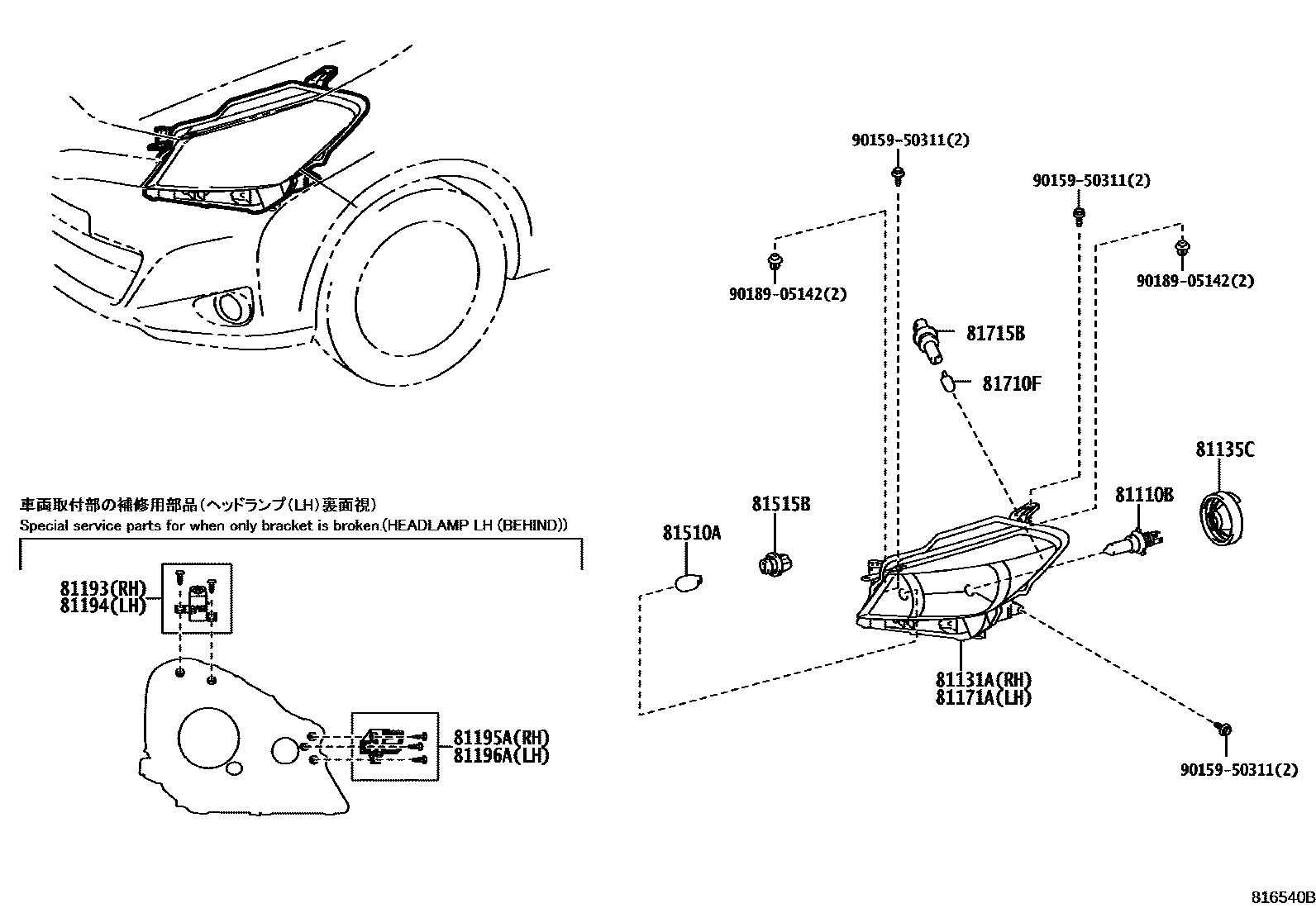

HEADLAMP
81110BBULB(FOR HEADLAMP, NO.1)
12V 60/55W,HALOGEN,HEADLAMP-MULTI REFLECTOR
12V 60/55W,HALOGEN
12V 60/55W,HALOGEN,HEADLAMP-MULTI REFLECTOR & *AHB
12V 55W,HALOGEN
12V 55W,HALOGEN,HEADLAMP-PROJECTOR(LED *DRL) & *AHB
12V 55W,HALOGEN,HEADLAMP-PROJECTOR
81131AUNIT, HEADLAMP, RH
HEADLAMP-MULTI REFLECTOR
HEADLAMP-PROJECTOR
81135UNIT ASSY, HEADLAMP, RH
HEADLAMP-MULTI REFLECTOR & *AHB
HEADLAMP-PROJECTOR(LED *DRL) & *AHB
81135CCOVER, HEADLAMP BACK, NO.1
HEADLAMP-MULTI REFLECTOR
HEADLAMP-MULTI REFLECTOR & *AHB
HEADLAMP-PROJECTOR(LED *DRL) & *AHB
HEADLAMP-PROJECTOR
81171AUNIT, HEADLAMP, LH
HEADLAMP-MULTI REFLECTOR
HEADLAMP-PROJECTOR
81193RETAINER, HEADLAMP PROTECTOR, UPPER RH
81194RETAINER, HEADLAMP PROTECTOR, UPPER LH
81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH
81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH
81510ABULB, FRONT TURN SIGNAL & PARKING LAMP
12V 28/8W
81515BSOCKET, FRONT TURN SIGNAL LAMP
HEADLAMP-MULTI REFLECTOR & *AHB
81710FBULB, FRONT SIDE MAKER LAMP
81715BSOCKET & WIRE, FRONT SIDE MARKER LAMP
9015950311
main90159-50311
9018905142
main90189-05142
15 parts on this diagram · 5 diagrams in section
