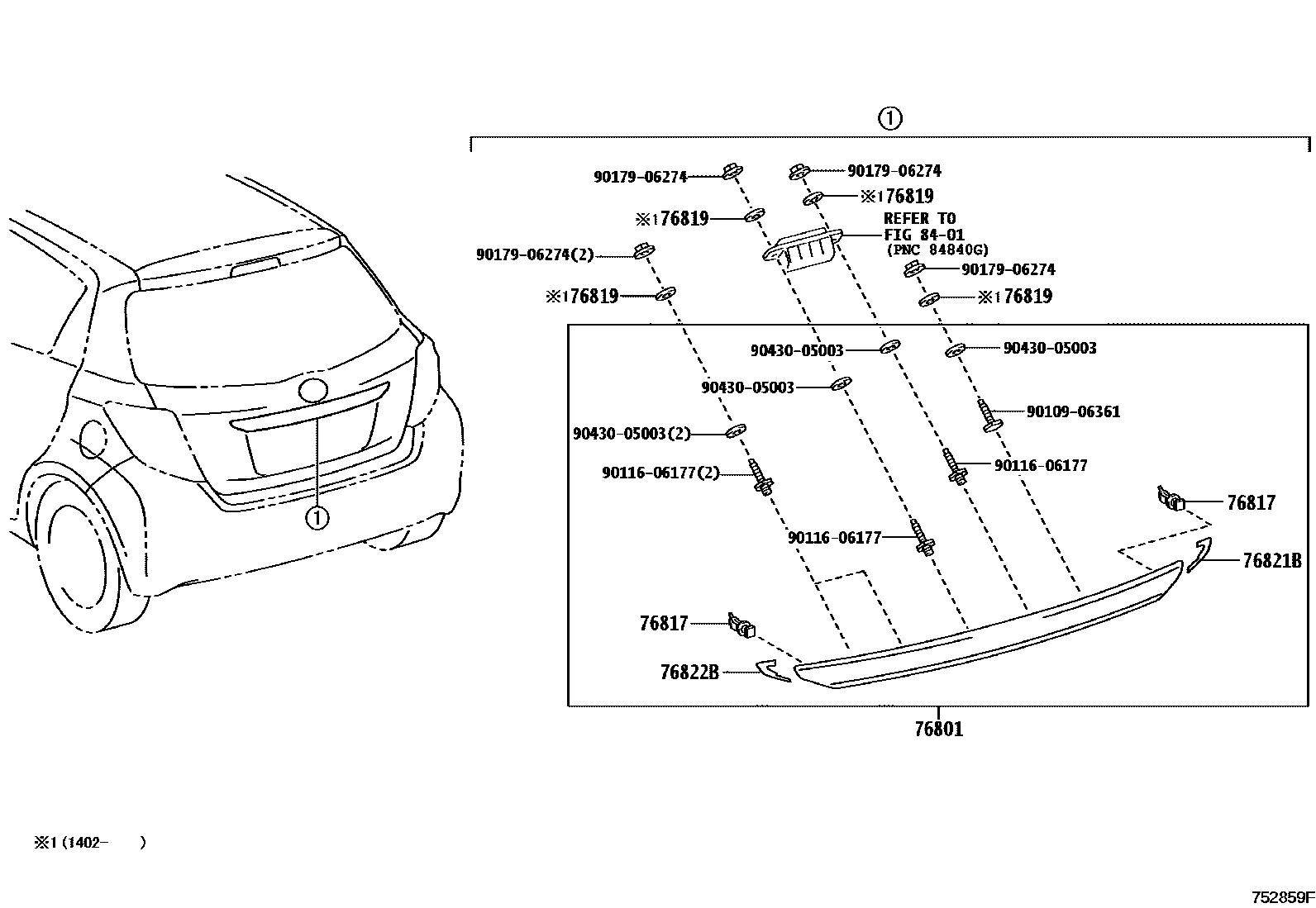

REAR MOULDING
76801GARNISH SUB-ASSY, BACK DOOR, OUTSIDE
PAINT REQ.
PAINT REQ.
PAINT REQ.
PLATED,PUERTO RICO SPEC&WIRELESS DOOR LOCK-WITH(1 TRANSMITTER); PLATED,WIRELESS DOOR LOCK-WITH(2 TRANSMITTER)
PLATED,PUERTO RICO SPEC&WIRELESS DOOR LOCK-WITH(1 TRANSMITTER); PLATED,WIRELESS DOOR LOCK-WITH(2 TRANSMITTER)
PAINT REQ.,LE PACKAGE&WIRELESS DOOR LOCK-WITH(2 TRANSMITTER) & WITH(PANIC BUTTON); PAINT REQ.,MEXICO SPEC&WIRELESS DOOR LOCK-WITH(1 TRANSMITTER) & WITH(PANIC BUTTON); PAINT REQ.,SE PACKAGE&WIRELESS DOOR LOCK-WITH(2 TRANSMITTER) & WITH(PANIC BUTTON); PAINT REQ.,WIRELESS DOOR LOCK-WITH(2 TRANSMITTER) & WITH(PANIC BUTTON)
PAINT REQ.,LE PACKAGE&WIRELESS DOOR LOCK-WITH(2 TRANSMITTER) & WITH(PANIC BUTTON); PAINT REQ.,SE PACKAGE&WIRELESS DOOR LOCK-WITH(2 TRANSMITTER) & WITH(PANIC BUTTON); PAINT REQ.,WIRELESS DOOR LOCK-WITH(2 TRANSMITTER) & WITH(PANIC BUTTON)
PAINT REQ.,SE PACKAGE&WIRELESS DOOR LOCK-WITH(2 TRANSMITTER) & WITH(PANIC BUTTON)
76817CLIP, BACK DOOR OUTSIDE GARNISH
76819SEAL, BACK DOOR OUTSIDE GARNISH
76821PROTECTOR, BACK DOOR GARNISH MOULDING, UPPER
76821BPROTECTOR, BACK DOOR GARNISH SIDE, RH
PUERTO RICO SPEC&WIRELESS DOOR LOCK-WITH(1 TRANSMITTER); WIRELESS DOOR LOCK-WITH(2 TRANSMITTER)
76822BPROTECTOR, BACK DOOR GARNISH SIDE, LH
PUERTO RICO SPEC&WIRELESS DOOR LOCK-WITH(1 TRANSMITTER); WIRELESS DOOR LOCK-WITH(2 TRANSMITTER)
8401SWITCH & RELAY & COMPUTER
9010906361
main90109-06361
9011606177
main90116-06177
9017906274
main90179-06274
9043005003
main90430-05003
11 parts on this diagram · 4 diagrams in section
