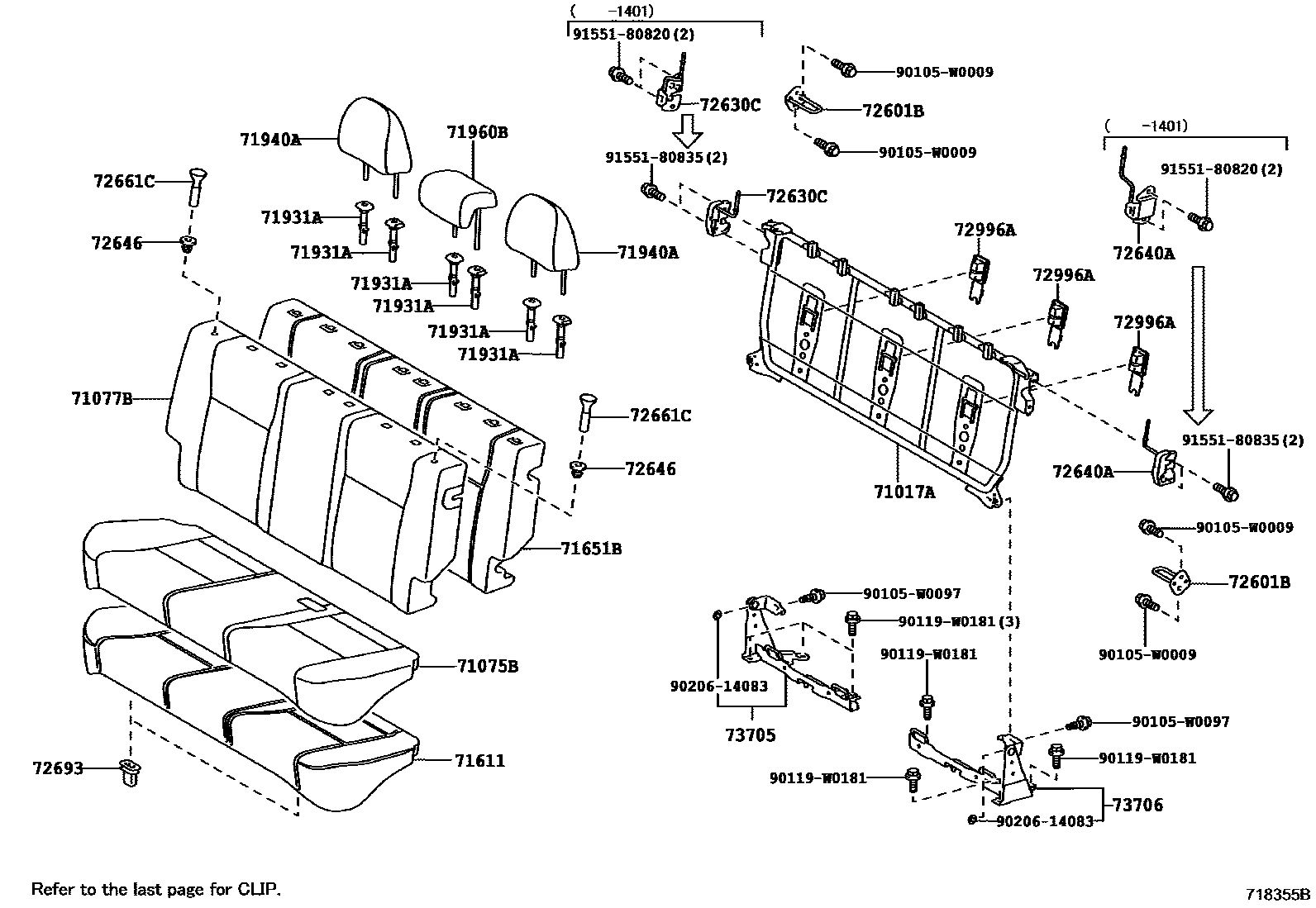

REAR SEAT & SEAT TRACK
71017FRAME SUB-ASSY, REAR SEATBACK, RH
REAR SEAT-6:4 FOLDING TYPE, WITHOUT(RECLINING)
71017AFRAME SUB-ASSY, REAR SEATBACK
71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)
BLACK,TRIM1#
BLACK,TRIM0#
BLACK,TRIM0#
BLACK,TRIM1#,2#; SEAT COVER MATERIAL-FABRIC(MIDDLE GRADE),BLACK,TRIM0#,1#,2#
BLACK,TRIM2#; SEAT COVER MATERIAL-FABRIC(MIDDLE GRADE),BLACK,TRIM2#
GRAY,TRIM2#,3#; SEAT COVER MATERIAL-FABRIC(HIGH GRADE),GRAY,TRIM2#,3#
BLACK/GRAY,TRIM2#; SEAT COVER MATERIAL-FABRIC(HIGH GRADE),BLACK/GRAY,TRIM2#
BLACK/GREY,TRIM2#; SEAT COVER MATERIAL-FABRIC(SOFT VARIATION),BLACK/GREY,TRIM2#
BLACK/GREY,TRIM2#; SEAT COVER MATERIAL-FABRIC(STYLE ALPHA),BLACK/GREY,TRIM2#
71077BCOVER, REAR SEATBACK (FOR BENCH TYPE)
BLACK,TRIM1#
71651BPAD, REAR SEATBACK(FOR BENCH TYPE)
71931ASUPPORT, REAR SEAT HEADREST
W(LOCK),BLACK,TRIM0#,1#,2#,3#; W(LOCK),BLACK,TRIM1#,2#; W(LOCK),BLACK,TRIM2#,3#
W/O(LOCK),BLACK,TRIM0#,1#,2#,3#; W/O(LOCK),BLACK,TRIM1#,2#; W/O(LOCK),BLACK,TRIM2#,3#
71940AHEADREST ASSY, REAR SEAT
BLACK,TRIM1#
BLACK,TRIM0#,1#,2#,3#; BLACK,TRIM1#,2#; BLACK,TRIM2#,3#
BLACK,TRIM2#
71960BHEADREST ASSY, REAR SEAT, CENTER
BLACK,TRIM1#
BLACK,TRIM0#,1#,2#,3#; BLACK,TRIM1#,2#; BLACK,TRIM2#,3#
BLACK,TRIM0#,2#; BLACK,TRIM2#
BLACK,TRIM2#
72601BSTRIKER SUB-ASSY, REAR SEATBACK LOCK
72630CLOCK ASSY, REAR SEATBACK, RH
REAR SEAT-6:4 FOLDING TYPE, WITHOUT(RECLINING)
72640ALOCK ASSY, REAR SEATBACK, LH
REAR SEAT-6:4 FOLDING TYPE, WITHOUT(RECLINING)
72646GROMMET, REAR SEATBACK STOP BUTTON
BLACK,TRIM1#
EU BLACK,TRIM0#,1#,2#,3#; EU BLACK,TRIM1#,2#; EU BLACK,TRIM2#,3#
72661CBUTTON, REAR SEATBACK LOCK RELEASE
BLACK,TRIM1#
EU BLACK,TRIM0#,1#,2#,3#; EU BLACK,TRIM1#,2#; EU BLACK,TRIM2#,3#
72693HOOK, REAR SEAT CUSHION LOCK
72996ACOVER, REAR SEATBACK
BLACK,TRIM1#
EU BLACK,TRIM0#,1#,2#,3#; EU BLACK,TRIM1#,2#; EU BLACK,TRIM2#,3#
EU BLACK,TRIM2#
73705BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH
73706BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH
90105W0009
main90105-W0009
90105W0097
main90105-W0097
90119W0181
main90119-W0181
9020614083
main90206-14083
9155180820
main91551-80820
9155180835
main91551-80835
24 parts on this diagram · 3 diagrams in section
