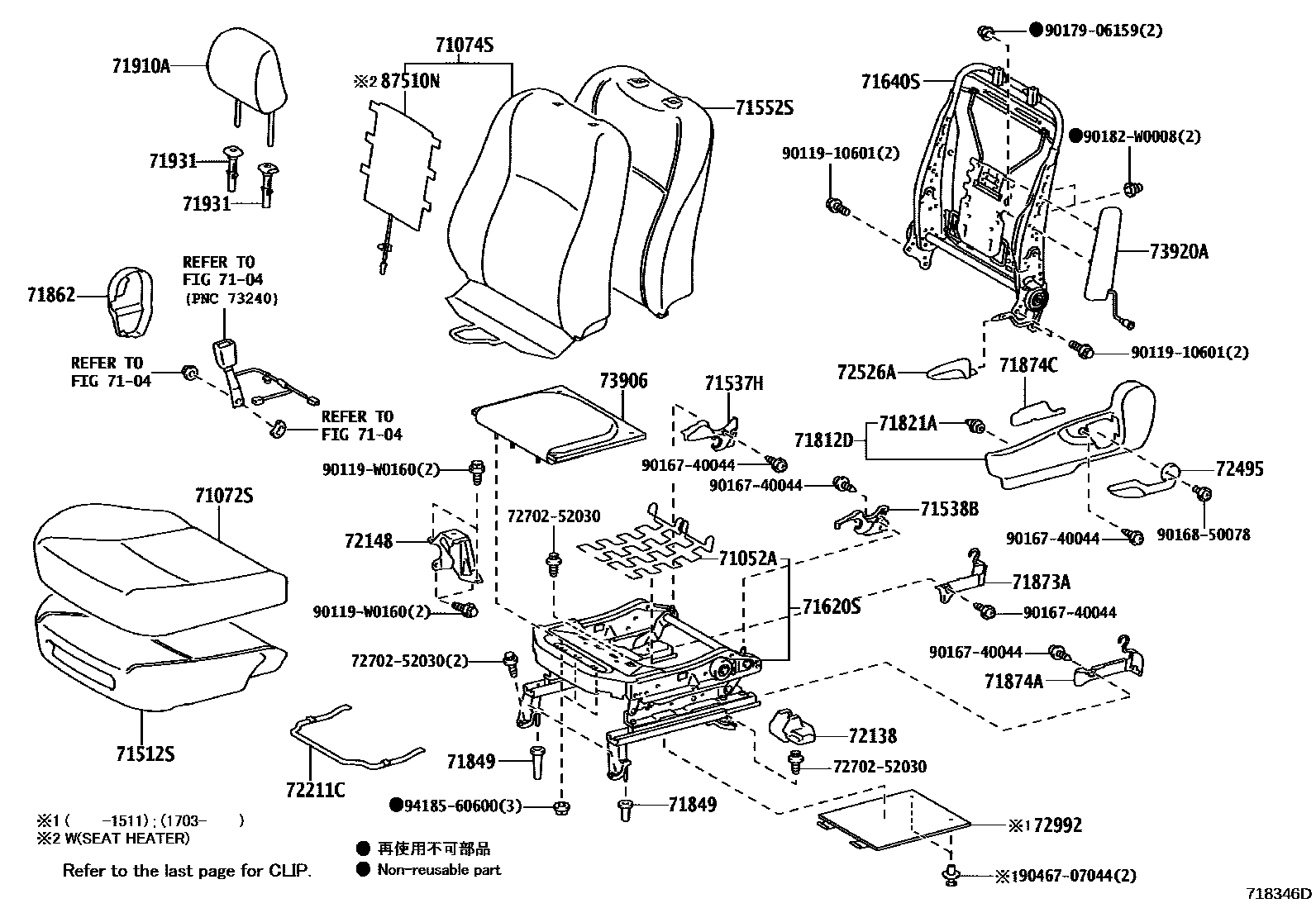

7104SEAT BELT & CHILD RESTRAINT SEAT

→ Go to FIG 71-04

71052ASPRING SUB-ASSY, FRONT SEAT CUSHION, LH

main71051-0D060i201305-201407

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-0DL00-C0supersedes 71072-0DK90-C0i201305-201407

BLACK,TRIM1#; REAR SEAT-6:4 FOLDING TYPE, WITHOUT(RECLINING),BLACK,TRIM1#

main71072-0DS30-C0i201407-201511

BLACK,TRIM0#

main71072-0DS30-C2i201511-201703

BLACK,TRIM0#

main71072-0DS40-C0i201407-201511

BLACK,TRIM1#,2#; SEAT COVER MATERIAL-FABRIC(MIDDLE GRADE),BLACK,TRIM0#,1#,2#

main71072-0DS40-C1i201511-201703

BLACK,TRIM2#; SEAT COVER MATERIAL-FABRIC(MIDDLE GRADE),BLACK,TRIM2#

main71072-0DS50-B0i201407-201511

BLACK,TRIM2#,3#; SE PACKAGE&SEAT COVER MATERIAL-FABRIC(HIGH GRADE),BLACK,TRIM2#,3#

main71072-0DS50-C0i201511-201703

BLACK/GRAY,TRIM2#; SE PACKAGE&SEAT COVER MATERIAL-FABRIC(HIGH GRADE),BLACK/GRAY,TRIM2#

main71072-0U451-B0i201703-201907

MEDIUM GREY,TRIM2#

main71072-0U521-B0i201703-201907

GRAY,TRIM2#

main71072-0UA20-C0i201811-201907

BLACK,TRIM2#

main71072-0DS50-B2i201811-201907

SEAT COVER MATERIAL-FABRIC(STYLE ALPHA),GRAY,TRIM2#

main71072-0U440-B0i201703-201907

SEAT COVER MATERIAL-FABRIC(SOFT VARIATION),BLACK/GREY,TRIM2#

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-0D780-C2i201305-201407

BLACK,TRIM1#

main71074-0DJ10-C1i201407-201703

BLACK,TRIM0#

main71074-0DJ30-C1i201407-201703

BLACK,TRIM1#,2#; SEAT COVER MATERIAL-FABRIC(MIDDLE GRADE),BLACK,TRIM0#,1#,2#

main71074-0DN90-C3i201407-201511

BLACK/GRAY,TRIM2#; SE PACKAGE&SEAT COVER MATERIAL-FABRIC(HIGH GRADE),BLACK/GRAY,TRIM2#

main71074-0DN90-C4i201511-201703

BLACK/GRAY,TRIM2#; SE PACKAGE&SEAT COVER MATERIAL-FABRIC(HIGH GRADE),BLACK/GRAY,TRIM2#

main71074-0U070-B1i201703-201907

BLACK/GREY,TRIM2#

main71074-0U410-C0i201703-201907

BLACK,TRIM2#

main71074-0DN90-C5i201811-201907

SEAT COVER MATERIAL-FABRIC(STYLE ALPHA),BLACK,TRIM2#

main71074-0U060-B1supersedes 71074-0U040-C0i201703-201907

SEAT COVER MATERIAL-FABRIC(SOFT VARIATION),BLACK/GREY,TRIM2#

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71512-0D440i201305-201407

71537HPROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT)

main71537-0D020-C0supersedes 71537-0D040-C0i201305-201407

BLACK,TRIM1#; REAR SEAT-6:4 FOLDING TYPE, WITHOUT(RECLINING),BLACK,TRIM1#

main71537-0D020-C1supersedes 71537-0D040-C1i201407-201703

EU BLACK,TRIM1#,2#; EU BLACK,TRIM2#,3#; SE PACKAGE&SEAT COVER MATERIAL-FABRIC(HIGH GRADE),EU BLACK,TRIM0#,1#,2#,3#; SEAT COVER MATERIAL-FABRIC(MIDDLE GRADE),EU BLACK,TRIM0#,1#,2#,3#

main71537-0D040-C1i201407-201510

EU BLACK,TRIM0#,2#

main71537-0D070-C0i201511-201703

EU BLACK,TRIM0#

71538BPROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT)

main71538-0D030-C1i201407-201703

EU BLACK,TRIM0#,2#

main71538-0D040-C0supersedes 71538-0D030-C0i201305-201407

BLACK,TRIM1#; REAR SEAT-6:4 FOLDING TYPE, WITHOUT(RECLINING),BLACK,TRIM1#

main71538-0D040-C1supersedes 71538-0D030-C1i201407-201703

EU BLACK,TRIM1#,2#; EU BLACK,TRIM2#,3#; SE PACKAGE&SEAT COVER MATERIAL-FABRIC(HIGH GRADE),EU BLACK,TRIM0#,1#,2#,3#; SEAT COVER MATERIAL-FABRIC(MIDDLE GRADE),EU BLACK,TRIM0#,1#,2#,3#

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71552-0D410i201407-201703

71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71620-0D350supersedes 71620-0D390i201305-201311

REAR SEAT-6:4 FOLDING TYPE, WITHOUT(RECLINING)

main71620-0D351i201311-201404

REAR SEAT-6:4 FOLDING TYPE, WITHOUT(RECLINING)

main71620-0D380supersedes 71620-0D390i201811-201907

71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71640-0D280-C0supersedes 71640-0D310-C0i201305-201404

BLACK,TRIM1#; REAR SEAT-6:4 FOLDING TYPE, WITHOUT(RECLINING),BLACK,TRIM1#

main71640-0D300-C0i201405-201407

BLACK,TRIM1#; REAR SEAT-6:4 FOLDING TYPE, WITHOUT(RECLINING),BLACK,TRIM1#

main71640-0D300-C1supersedes 71640-0D310-C1i201407-201703

EU BLACK,TRIM1#,2#; EU BLACK,TRIM2#,3#; SE PACKAGE&SEAT COVER MATERIAL-FABRIC(HIGH GRADE),EU BLACK,TRIM0#,1#,2#,3#; SEAT COVER MATERIAL-FABRIC(MIDDLE GRADE),EU BLACK,TRIM0#,1#,2#,3#

main71640-0D310-C1i201407-201703

EU BLACK,TRIM0#,2#

71812DSHIELD, FRONT SEAT CUSHION, LH

main71812-0D180-C0supersedes 71812-0D200-C0i201305-201407

BLACK,TRIM1#; REAR SEAT-6:4 FOLDING TYPE, WITHOUT(RECLINING),BLACK,TRIM1#

main71812-0D180-C1supersedes 71812-0D200-C1i201407-201703

EU BLACK,TRIM1#,2#; EU BLACK,TRIM2#,3#; SE PACKAGE&SEAT COVER MATERIAL-FABRIC(HIGH GRADE),EU BLACK,TRIM0#,1#,2#,3#; SEAT COVER MATERIAL-FABRIC(MIDDLE GRADE),EU BLACK,TRIM0#,1#,2#,3#

main71812-0D200-C1i201407-201703

EU BLACK,TRIM0#,2#

71821ACLIP (FOR FRONT SEAT SIDE SHIELD)

main71769-47020×2i201407-201703

71849CAP, SEAT ADJUSTER COVER, LH

main71848-0D040-C0i201305-201407

BLACK,TRIM1#,OUTER

main71848-0D040-C1i201407-201703

EU BLACK,TRIM0#,2#,OUTER; EU BLACK,TRIM1#,2#,OUTER; EU BLACK,TRIM2#,3#,OUTER

main71848-0D050-C0i201305-201407

BLACK,TRIM1#,INNER

main71848-0D050-C1i201407-201703

EU BLACK,TRIM0#,2#,INNER; EU BLACK,TRIM1#,2#,INNER; EU BLACK,TRIM2#,3#,INNER

71862SHIELD, FRONT SEAT CUSHION, INNER LH

main71862-0D140-C1i201407-201703

EU BLACK,TRIM0#,2#

main71862-0D150-C0supersedes 71862-0D140-C0i201305-201407

BLACK,TRIM1#; REAR SEAT-6:4 FOLDING TYPE, WITHOUT(RECLINING),BLACK,TRIM1#

main71862-0D150-C1supersedes 71862-0D140-C1i201407-201703

EU BLACK,TRIM1#,2#; EU BLACK,TRIM2#,3#; SE PACKAGE&SEAT COVER MATERIAL-FABRIC(HIGH GRADE),EU BLACK,TRIM0#,1#,2#,3#; SEAT COVER MATERIAL-FABRIC(MIDDLE GRADE),EU BLACK,TRIM0#,1#,2#,3#

71873ASHIELD, FRONT SEAT CUSHION, LOWER

main71873-52270i201407-201703

SE PACKAGE&SEAT COVER MATERIAL-FABRIC(HIGH GRADE); SEAT COVER MATERIAL-FABRIC(MIDDLE GRADE)

71874ASHIELD, FRONT SEAT CUSHION, LOWER LH

main71874-52290i201703-201907

71874CSHIELD, FRONT SEAT CUSHION, LOWER

main71874-52280-C0i201407-201703

BLACK,TRIM1#,2#; BLACK,TRIM2#,3#; SE PACKAGE&SEAT COVER MATERIAL-FABRIC(HIGH GRADE),BLACK,TRIM0#,1#,2#,3#; SEAT COVER MATERIAL-FABRIC(MIDDLE GRADE),BLACK,TRIM0#,1#,2#,3#

71910AHEADREST ASSY, FRONT SEAT

main71910-0DD80-C0×2i201305-201407

BLACK,TRIM1#

main71910-0DE20-C0×2i201407-201703

BLACK,TRIM0#,1#,2#; BLACK,TRIM1#,2#

main71910-0DE30-C2×2i201407-201511

BLACK,TRIM2#,3#; SE PACKAGE&SEAT COVER MATERIAL-FABRIC(HIGH GRADE),BLACK,TRIM2#,3#

main71910-0DE30-C3×2i201511-201703

BLACK,TRIM2#; SE PACKAGE&SEAT COVER MATERIAL-FABRIC(HIGH GRADE),BLACK,TRIM2#

main71910-0DE30-C5supersedes 71910-0DE20-C1i201703-201811

BLACK/GREY,TRIM2#; SE PACKAGE&SEAT COVER MATERIAL-FABRIC(STYLE ALPHA),BLACK/GREY,TRIM2#; SEAT COVER MATERIAL-FABRIC(SOFT VARIATION),BLACK/GREY,TRIM2#

main71910-0DE30-C6supersedes 71910-0DE20-C2i201811-201907

BLACK/BLACK/GRAY,TRIM2#; SEAT COVER MATERIAL-FABRIC(SOFT VARIATION),BLACK/BLACK/GRAY,TRIM2#; SEAT COVER MATERIAL-FABRIC(STYLE ALPHA),BLACK/BLACK/GRAY,TRIM2#

71931SUPPORT, FRONT SEAT HEADREST

main71930-47020-C0×2i201407-201703

W(LOCK),BLACK,TRIM0#,1#,2#,3#; W(LOCK),BLACK,TRIM1#,2#; W(LOCK),BLACK,TRIM2#,3#

main71931-47020-C0×2i201407-201703

W/O(LOCK),BLACK,TRIM0#,1#,2#,3#; W/O(LOCK),BLACK,TRIM1#,2#; W/O(LOCK),BLACK,TRIM2#,3#

72138COVER, SEAT TRACK, OUTER LH

main72138-0D070-C0i201305-201407

BLACK,TRIM1#

main72138-0D070-C1i201407-201703

EU BLACK,TRIM0#,1#,2#,3#; EU BLACK,TRIM1#,2#; EU BLACK,TRIM2#,3#

72148BRACKET, FRONT INNER SEAT TRACK, LOWER REAR LH

main72148-0D070i201407-201703

72211HANDLE, SEAT TRACK ADJUSTING

main72211-52160i201703-201907

main72211-52170i201305-201407

72211CHANDLE, SEAT TRACK ADJUSTING

main72211-52160i201407-201703

72495HANDLE, VERTICAL ADJUSTING, LH

main72495-0D010-C0i201305-201407

BLACK,TRIM1#; REAR SEAT-6:4 FOLDING TYPE, WITHOUT(RECLINING),BLACK,TRIM1#

main72495-0D010-C1i201407-201703

EU BLACK,TRIM1#,2#; EU BLACK,TRIM2#,3#; SE PACKAGE&SEAT COVER MATERIAL-FABRIC(HIGH GRADE),EU BLACK,TRIM0#,1#,2#,3#; SEAT COVER MATERIAL-FABRIC(MIDDLE GRADE),EU BLACK,TRIM0#,1#,2#,3#

72526AHANDLE, RECLINING ADJUSTER RELEASE, LH

main72526-0D190-C0i201305-201407

BLACK,TRIM1#

main72526-0D190-C1i201407-201703

EU BLACK,TRIM0#,2#; EU BLACK,TRIM1#,2#; EU BLACK,TRIM2#,3#

72992COVER, FRONT SEAT CUSHION, LH

main72991-0D160i201407-201511

73906AIRBAG SUB-ASSY, FRONT SEAT, LH

main73905-52020i201407-201703

73920AAIRBAG ASSY, FRONT SEAT, LH

main73920-52191i201407-201703

87510NHEATER ASSY, FRONT SEATBACK, LH
