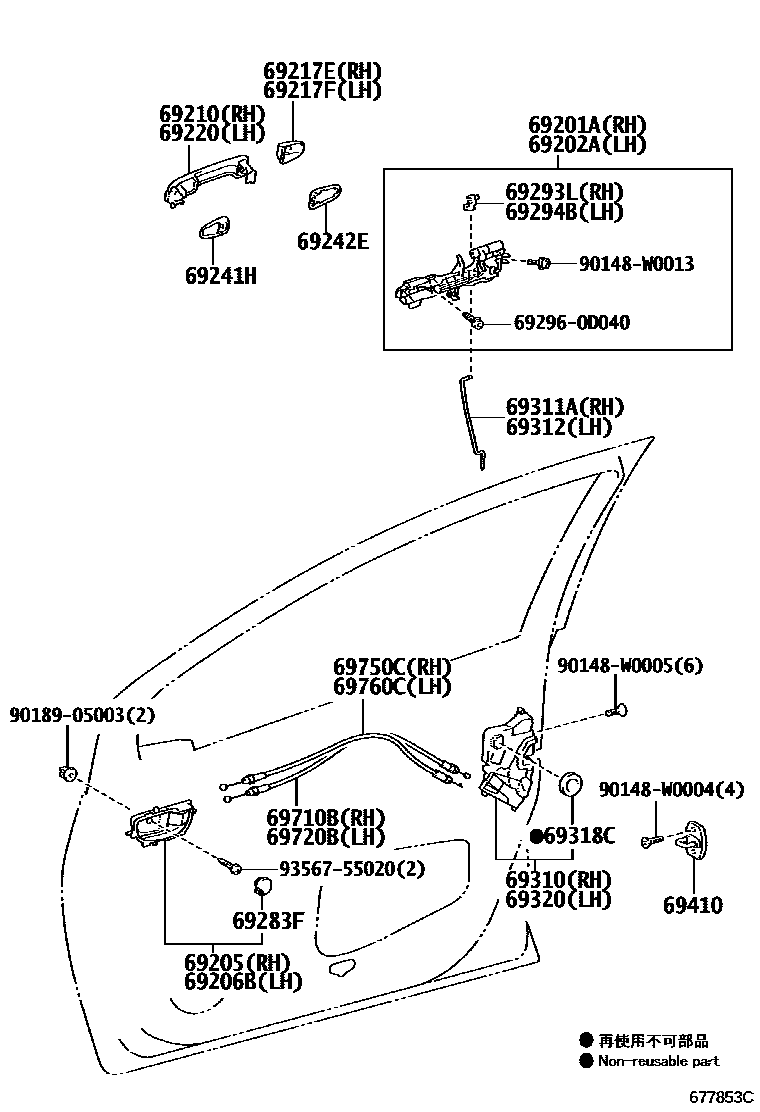

FRONT DOOR LOCK & HANDLE
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
EU BLACK,TRIM1#,2#; EU BLACK,TRIM2#,3#; LE PACKAGE,EU BLACK,TRIM1#,2#,3#; SE PACKAGE,EU BLACK,TRIM1#,2#,3#
BLACK,TRIM1#; REAR SEAT-6:4 FOLDING TYPE, WITHOUT(RECLINING),BLACK,TRIM1#
BLACK,TRIM1#; REAR SEAT-6:4 FOLDING TYPE, WITHOUT(RECLINING),BLACK,TRIM1#
EU BLACK,TRIM0#,2#
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
main69206-02300-C2supersedes 69206-0D271-C1iNCP131..5D..USA;NCP131..3D..5F..USA; NCP131..CND; NCP131..USA201703-201907
EU BLACK,TRIM2#; LE PACKAGE,EU BLACK,TRIM2#; SE PACKAGE,EU BLACK,TRIM2#
EU BLACK,TRIM0#,2#
BLACK,TRIM1#; REAR SEAT-6:4 FOLDING TYPE, WITHOUT(RECLINING),BLACK,TRIM1#
BLACK,TRIM1#; REAR SEAT-6:4 FOLDING TYPE, WITHOUT(RECLINING),BLACK,TRIM1#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
PAINT REQ.
69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH
LESS COLOR
69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH
LESS COLOR
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
PAINT REQ.
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69283FPLUG, FRONT DOOR INSIDE HANDLE BEZEL
EU BLACK,TRIM0#,2#; EU BLACK,TRIM1#,2#; EU BLACK,TRIM2#,3#
69293LSNAP, FRONT DOOR OUTSIDE HANDLE, RH
69294BSNAP, FRONT DOOR OUTSIDE HANDLE, LH
69310LOCK ASSY, FRONT DOOR, RH
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69320LOCK ASSY, FRONT DOOR, LH
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
692960D040SCREW, DOOR INSIDE HANDLE
main69296-0D040
90148W0004
main90148-W0004
90148W0005
main90148-W0005
90148W0013
main90148-W0013
9018905003
main90189-05003
9356755020
main93567-55020
29 parts on this diagram · 1 diagram in section
