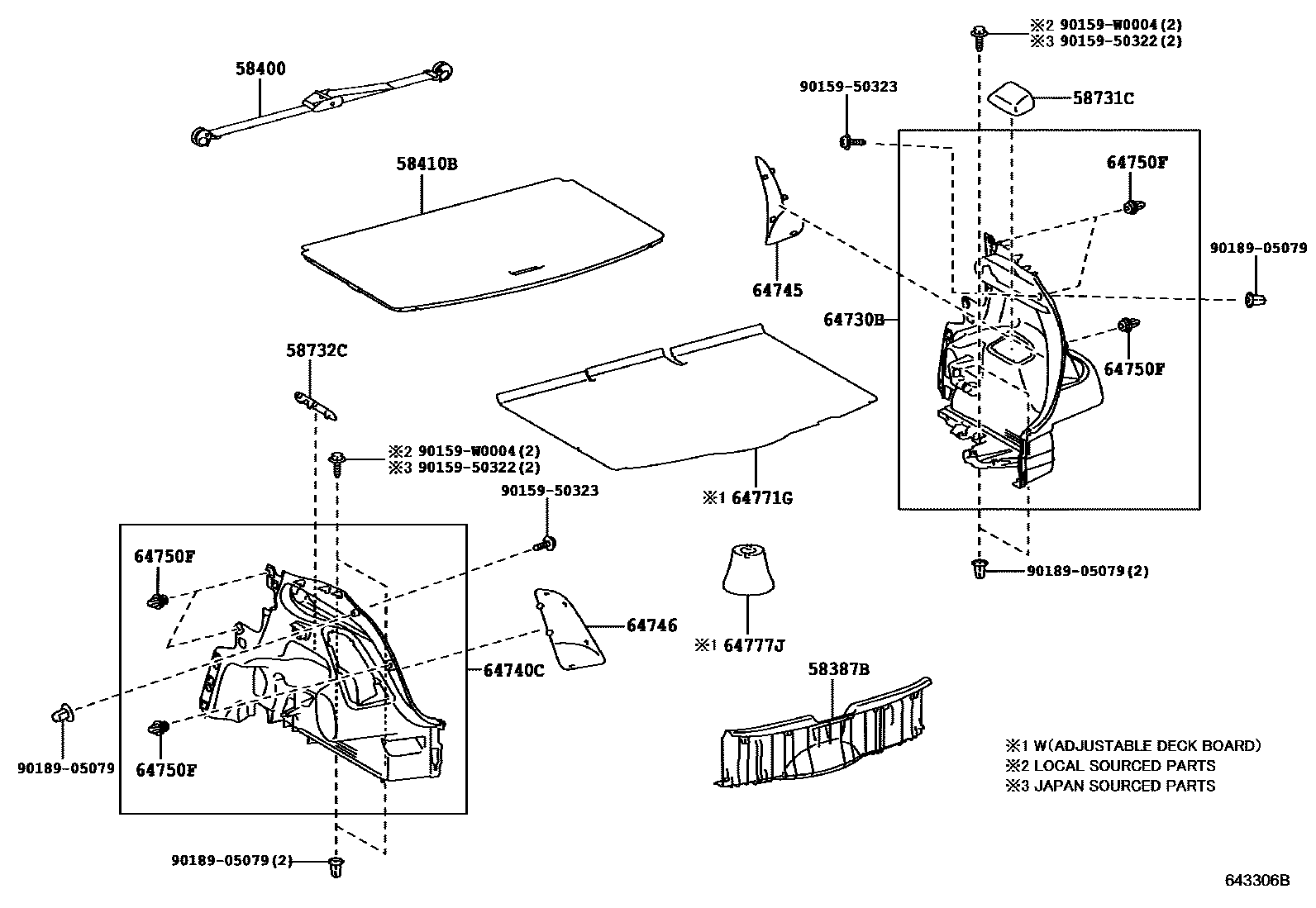

DECK BOARD & DECK TRIM COVER
58387BPLATE, REAR FLOOR FINISH
BLACK,TRIM1#
EU BLACK,TRIM0#,1#,2#,3#; EU BLACK,TRIM1#,2#; EU BLACK,TRIM2#,3#
58400BELT ASSY, LUGGAGE HOLD, NO.1
58410BBOARD ASSY, DECK
DARK GRAY,TRIM1#
DARK GRAY,TRIM0#,2#; DARK GRAY,TRIM2#
58731CCAP, REAR ABSORBER
BLACK,TRIM1#
EU BLACK,TRIM0#,1#,2#,3#; EU BLACK,TRIM1#,2#; EU BLACK,TRIM2#,3#
58732CCAP, REAR ABSORBER
BLACK,TRIM1#
EU BLACK,TRIM0#,1#,2#,3#; EU BLACK,TRIM1#,2#; EU BLACK,TRIM2#,3#
64730BPANEL ASSY, DECK TRIM SIDE, RH
BLACK,TRIM1#
EU BLACK,TRIM0#,1#,2#,3#; EU BLACK,TRIM1#,2#; EU BLACK,TRIM2#,3#
EU BLACK,TRIM2#
BLACK,TRIM1#
EU BLACK,TRIM0#,1#,2#,3#; EU BLACK,TRIM1#,2#; EU BLACK,TRIM2#,3#
EU BLACK,TRIM2#
64740CPANEL ASSY, DECK TRIM SIDE, LH
BLACK,TRIM1#
EU BLACK,TRIM0#,1#,2#,3#; EU BLACK,TRIM1#,2#; EU BLACK,TRIM2#,3#
EU BLACK,TRIM2#
BLACK,TRIM1#
EU BLACK,TRIM0#,1#,2#,3#; EU BLACK,TRIM1#,2#; EU BLACK,TRIM2#,3#
EU BLACK,TRIM2#
64745COVER, REAR COMBINATION LAMP SERVICE, RH
BLACK,TRIM1#
EU BLACK,TRIM0#,1#,2#,3#; EU BLACK,TRIM1#,2#; EU BLACK,TRIM2#,3#
EU BLACK,TRIM0#,2#; EU BLACK,TRIM2#
64746COVER, REAR COMBINATION LAMP SERVICE, LH
BLACK,TRIM1#
EU BLACK,TRIM0#,1#,2#,3#; EU BLACK,TRIM1#,2#; EU BLACK,TRIM2#,3#
64750FCLIP(FOR DECK SIDE TRIM PANEL)
64771GCOVER, SPARE WHEEL
DECK CARPET & MAT-WITH(ADJUSTABLE DECK BOARD),DARK GRAY,TRIM1#,2#; DECK CARPET & MAT-WITH(ADJUSTABLE DECK BOARD),DARK GRAY,TRIM1#,2#,3#; DECK CARPET & MAT-WITH(ADJUSTABLE DECK BOARD),DARK GRAY,TRIM2#,3#
64777JCUSHION, SPARE WHEEL
DECK CARPET & MAT-WITH(ADJUSTABLE DECK BOARD)
9015950322
main90159-50322
9015950323
main90159-50323
90159W0004
main90159-W0004
9018905079
main90189-05079
16 parts on this diagram · 2 diagrams in section
