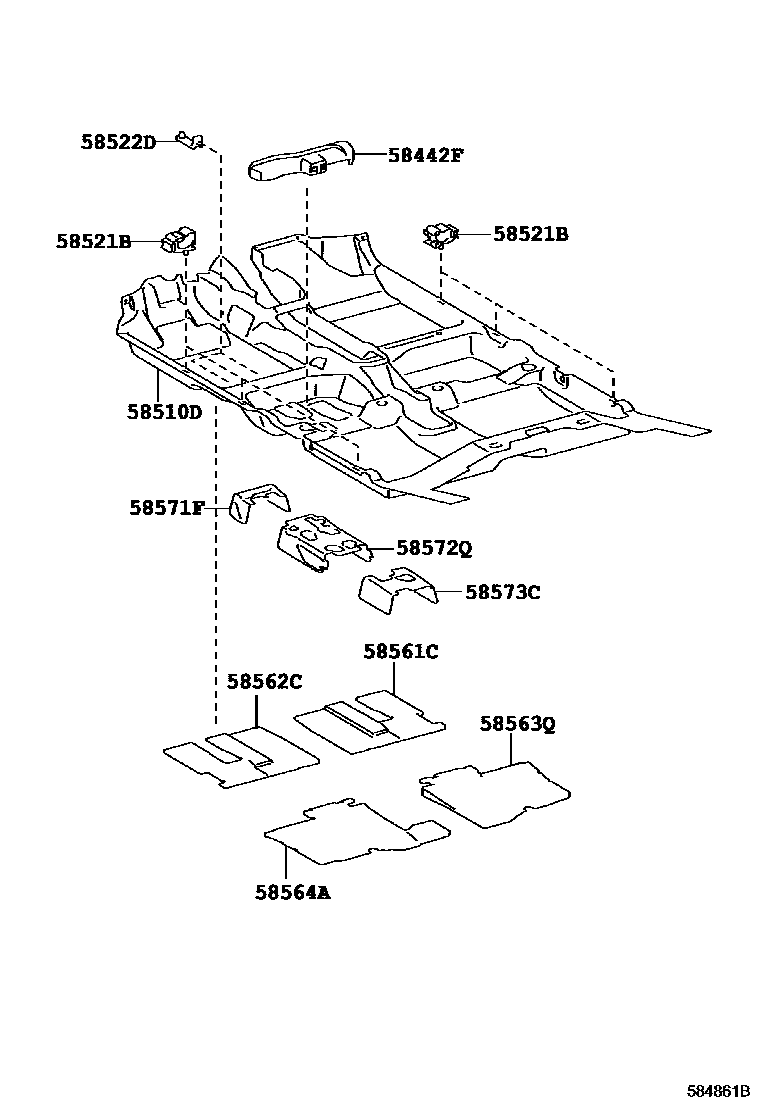

MAT & CARPET

0001 1 0002 1

58442FCOVER, JACK

main58442-0D090iNCP131201305-201407

58510DCARPET ASSY, FLOOR, FRONT

main58510-0D770-C1iNCP131..CND; NCP131..USA201407-201703

BLACK,TRIM0#,2#; BLACK,TRIM2#

main58510-52K90-B1supersedes 58510-52K80-B1iNCP131..CND; NCP131..USA201305-201407

COLD AREA SPEC,DK. GRAY,TRIM1#; DK. GRAY,TRIM1#

58521BHOOK, FLOOR CARPET

main58521-0D060×6iNCP131201305-201407

main58521-52050×4iNCP131201407-201703

58522DHOOK, FLOOR CARPET, NO.2

main58522-52030×2iNCP131201305-201407

58561CSILENCER, FRONT FLOOR, NO.1

main58561-0D180supersedes 58561-0D170iNCP131..CND; NCP131..USA201407-201703

COLD AREA SPEC

main58561-52191iNCP131201305-201407

58562CSILENCER, FRONT FLOOR, NO.2

main58562-52151iNCP131201305-201407

58563QSILENCER, FRONT FLOOR, NO.3

main58563-0D170iNCP131201407-201703

main58563-52201iNCP131201305-201407

58564ASILENCER, FRONT FLOOR, NO.4

main58564-0D140iNCP131201407-201703

main58564-52221iNCP131201305-201407

58571FPAD, FRONT FLOOR, FRONT

main58571-0D030iNCP131201305-201407

main58571-0D090iNCP131201703-201907

58572QPAD, FRONT FLOOR, FRONT NO.2

main58572-52040iNCP131201305-201407

58573CPAD, FRONT FLOOR CENTER

main58573-0D010iNCP131201305-201407

main58573-0D020iNCP131201703-201907

11 parts on this diagram · 2 diagrams in section
