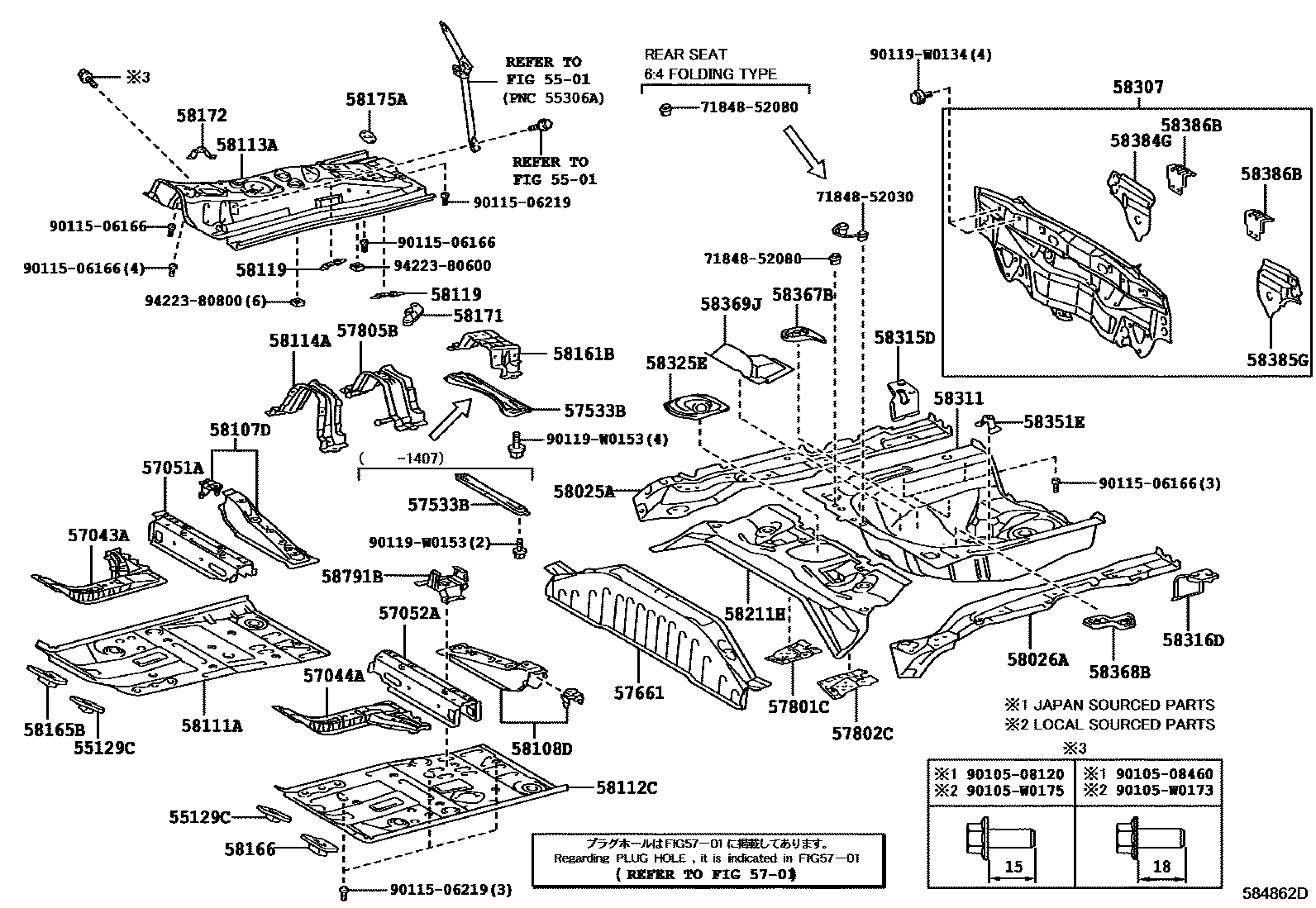

FLOOR PAN & LOWER BACK PANEL

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

55129CCOVER, DASH PANEL HOLE

main55129-0D100iNCP131201407-201703

RH

main55139-0D020iNCP131201305-201407

LH

5701HOLE PLUG

→ Go to FIG 57-01

57043AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH

main57043-0D012iNCP131201305-201407

main57043-0D013iNCP131201501-201703

57044AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH

main57044-0D042iNCP131201407-201412

main57044-0D043iNCP131201501-201703

57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-52020iNCP131201703-201907

57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57052-52020iNCP131201305-201407

57533BBRACE, FRONT FLOOR, CENTER

main57533-0D020iNCP131201305-201407

main57533-0D050iNCP131201407-201703

57661PANEL, REAR FLOOR SIDE, FRONT RH

main57661-0D050iNCP131201305-201407

57801CREINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.1 RH

main57801-0D060iNCP131201407-201703

57802CREINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.1 LH

main57802-0D050iNCP131201407-201703

57805BREINFORCEMENT SUB-ASSY, BELT ANCHOR, RH

main57805-0D090iNCP131201305-201407

58025APANEL SUB-ASSY, FLOOR SIDE RAIL, FR RH

main58025-52022iNCP131201407-201703

58026APANEL SUB-ASSY, FLOOR SIDE RAIL, FR LH

main58026-52022iNCP131201305-201407

58107DREINFORCE SUB-ASSY, FRONT CROSS TO FRONT PANEL, RH

main58107-0D051iNCP131201703-201907

58108DREINFORCE SUB-ASSY, FRONT CROSS TO FRONT PANEL, LH

main58108-0D031iNCP131201407-201703

58111APAN, FRONT FLOOR, RH

main58111-52160iNCP131201305-201307

main58111-52270iNCP131201308-201407

main58111-52271iNCP131201703-201907

58112CPAN, FRONT FLOOR, LH

main58112-52901iNCP131201305-201307

main58112-52918iNCP131201308-201407

main58112-52922iNCP131201504-201703

58113APANEL, FRONT FLOOR, CENTER

main58113-52906iNCP131201305-201308

main58113-52925iNCP131201308-201407

58114AREINFORCEMENT, FRONT FLOOR PANEL

main58114-0D100iNCP131201305-201407

main58114-0D101iNCP131201505-201703

main58114-0D102iNCP131201811-201907

58119PLATE, FRONT FLOOR SIDE, FRONT

main58119-0D020×2iNCP131201407-201703

58161BREINFORCEMENT, BELT ANCHOR TO FLOOR PAN

main58161-0D080iNCP131201407-201703

58165BCOVER, FRONT FLOOR, RH

main58165-0D020iNCP131201407-201703

58166COVER, FRONT FLOOR, LH

main58166-0D020iNCP131201407-201703

58171REINFORCEMENT, PARKING BRAKE BASE

main58171-0D070iNCP131201407-201703

58172BRACKET, COMPUTER MOUNTING, NO.3

main58172-52020iNCP131201407-201703

58175AREINFORCEMENT, PARKING BRAKE BASE, NO.1

main58175-52020iNCP131201407-201703

58211HPAN, CENTER FLOOR

main58211-0D080iNCP131201407-201703

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-0D140iNCP131201407-201703

58311PAN, REAR FLOOR

main58311-0D190iNCP131201407-201703

58315DEXTENSION, REAR FLOOR PAN, RH

main58315-0D040iNCP131201407-201703

58316DEXTENSION, REAR FLOOR PAN, LH

main58316-0D040iNCP131201407-201703

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-0D130iNCP131201407-201703

58351EBRACKET, SPARE WHEEL CLAMP

main58351-52070iNCP131201407-201703

58367BBRACKET, FUEL TUBE

main58367-52040iNCP131201407-201703

58368BBRACKET, FUEL TUBE, NO.2

main58368-52021iNCP131201407-201703

58369JBRACKET, REAR FLOOR BRACE

main58369-52010iNCP131201407-201703

58384GGUSSET, LOWER BACK, UPPER RH

main58384-0D060iNCP131201407-201703

58385GGUSSET, LOWER BACK, UPPER LH

main58385-0D080iNCP131201407-201703

58386BBRACKET, REAR BUMPER COVER, NO.2

main58386-0D040×2iNCP131201407-201703

58791BCARRIER, JACK

main58791-0D110iNCP131201407-201703

7184852030ORNAMENT, FRONT SEAT BRACKET, LH

main71848-52030

7184852080ORNAMENT, FRONT SEAT BRACKET, LH

main71848-52080

9010508120

main90105-08120

9010508460

main90105-08460

90105W0173

main90105-W0173

90105W0175

main90105-W0175

9011506166

main90115-06166

9011506219

main90115-06219

90119W0134

main90119-W0134

90119W0153

main90119-W0153

9422380600

main94223-80600

9422380800

main94223-80800

53 parts on this diagram · 1 diagram in section
