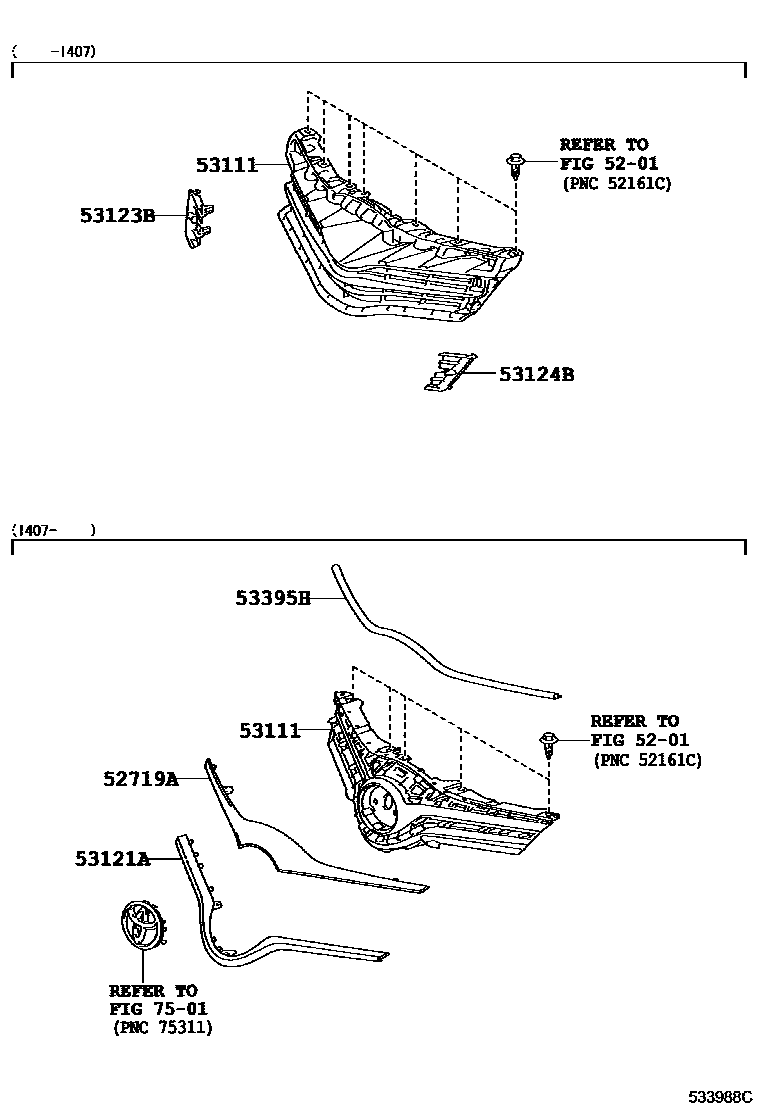

RADIATOR GRILLE

0001 1 0002 1

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

52719ACOVER, FRONT BUMPER MOULDING

main52719-0D900iNCP131201407-201703

53111GRILLE, RADIATOR

main53111-0D350iNCP131201305-201407

NO PAINT REQ.

main53111-0D810iNCP131201407-201703

NO PAINT REQ.

main53111-0DB10iNCP131201703-201907

53121AMOULDING, RADIATOR GRILLE

main53121-0D250iNCP131201407-201703

53123BMOULDING, RADIATOR GRILLE SIDE, RH

main53123-0D020iNCP131201305-201407

53124BMOULDING, RADIATOR GRILLE SIDE, LH

main53124-0D020iNCP131201305-201407

53395HSEAL, HOOD TO RADIATOR GRILLE

main53395-0D030iNCP131201407-201703

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

8 parts on this diagram · 2 diagrams in section
