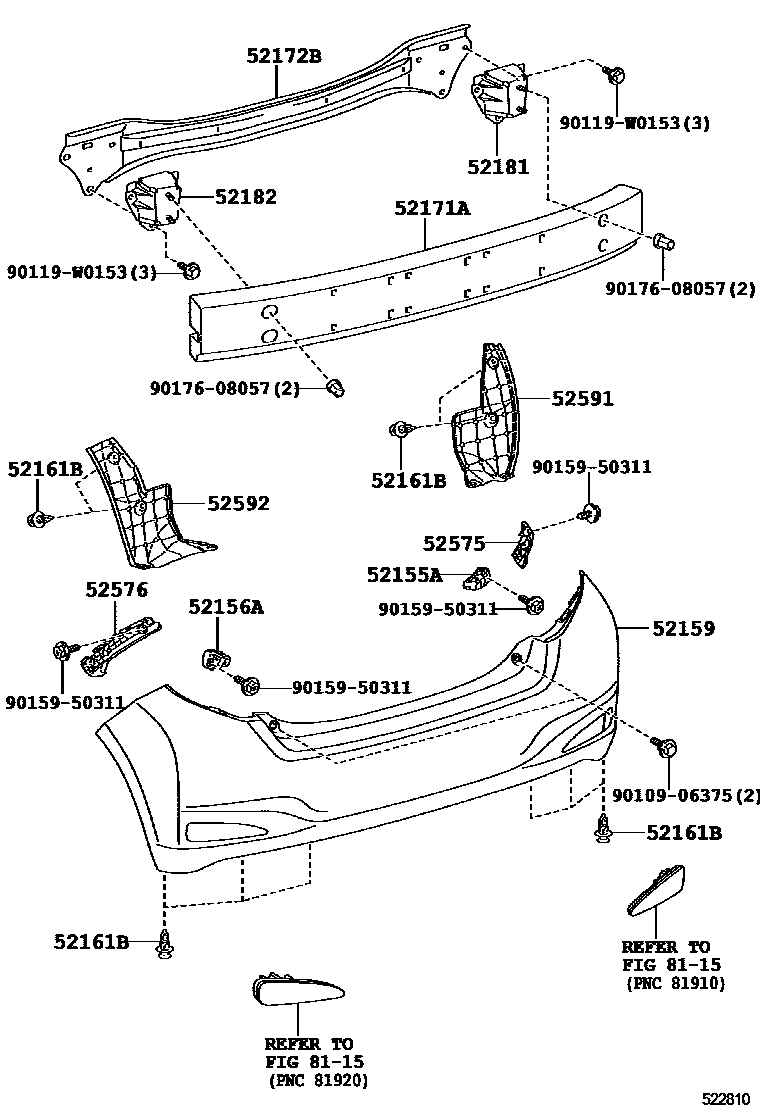

REAR BUMPER & BUMPER STAY

0001 1 0002 1 0003 1

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-0D050iNCP131201305-201407

main52155-0D100iNCP131201407-201607

main52155-0D101iNCP131201608-201703

main52155-0D220iNCP131201703-201907

52156ASUPPORT, REAR BUMPER SIDE, LH

main52156-0D040iNCP131201305-201407

main52156-0D090iNCP131201407-201607

main52156-0D091iNCP131201608-201703

main52156-0D210iNCP131201703-201907

52159COVER, REAR BUMPER

main52159-0U911iNCP131201305-201407

PAINT REQ.

main52159-0U917iNCP131201407-201703

PAINT REQ.

main52159-0U921iNCP131201703-201907

52161BPIECE, REAR BUMPER

main52161-02030×11iNCP131201407-201703

52171AREINFORCEMENT, REAR BUMPER, NO.1

main52171-52030iNCP131..USA201407-201703

main52171-52090iNCP131..CND201305-201407

52172BREINFORCEMENT, REAR BUMPER, NO.2

main52172-0D020iNCP131201407-201703

52181ARM, REAR BUMPER, RH

main52181-52160iNCP131201305-201407

52182ARM, REAR BUMPER, LH

main52182-52160iNCP131..5D;NCP131..3D..R201703-201907

52575RETAINER, REAR BUMPER SIDE, RH

main52575-0D130iNCP131201305-201407

main52575-0D270iNCP131201407-201412

main52575-0D271iNCP131201501-201607

main52575-0D272iNCP131201608-201703

main52575-0D460iNCP131201703-201907

52576RETAINER, REAR BUMPER SIDE, LH

main52576-0D130iNCP131201305-201407

main52576-0D260iNCP131201407-201412

main52576-0D261iNCP131201501-201607

main52576-0D262iNCP131201608-201703

main52576-0D450iNCP131201703-201907

52591SEAL, REAR BUMPER SIDE, RH

main52591-0D130iNCP131201305-201407

main52591-0D280iNCP131201703-201907

main52591-0D290iNCP131201407-201703

52592SEAL, REAR BUMPER SIDE, LH

main52592-0D130iNCP131201305-201407

main52592-0D280iNCP131201703-201907

main52592-0D290iNCP131201407-201703

8115

9010906375

main90109-06375

90119W0153

main90119-W0153

9015950311

main90159-50311

9017608057

main90176-08057

17 parts on this diagram · 3 diagrams in section
