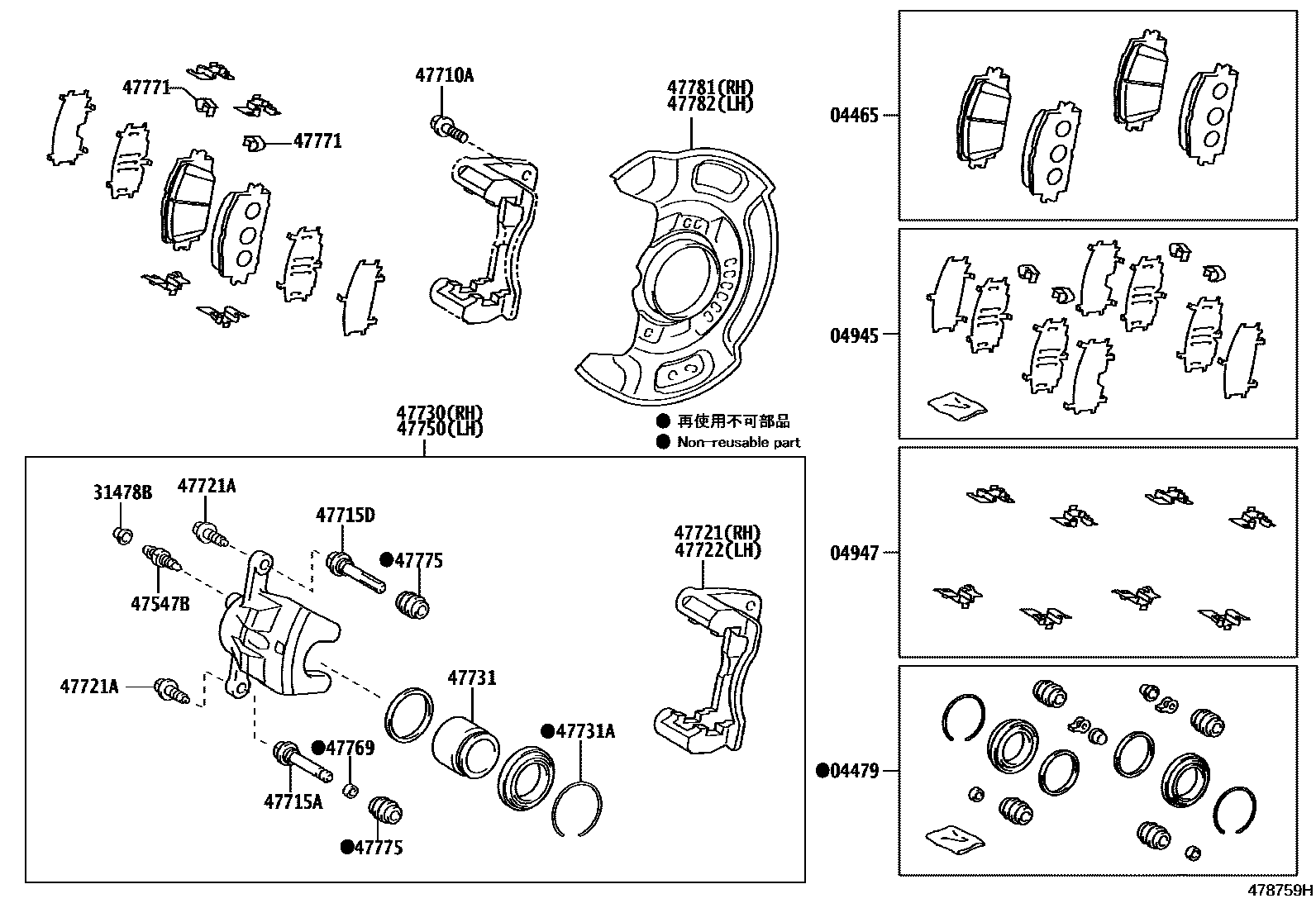

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-12640iNCP131..R201504-201907

MARK AK PA563H

main04465-52260iNCP131..R201305-201504

MARK AK PA563H

main04465-52310iNCP131..S201407-201907

MARK ADVICS PV565H

main04465-52310iNCP131..S201407-201907

MARK ADVICS PV565H,REAR WHEEL BRAKE-DISC

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-12120iNCP131..R201504-201907

main04478-52070iNCP131..R201305-201504

main04478-52100iNCP131..5D..USA;NCP131..3D..5F..USA201407-201907

REAR WHEEL BRAKE-DISC

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-52120iNCP131..3D..4FC..USA201407-201907

REAR WHEEL BRAKE-DISC

main04945-52130iNCP131..R201305-201907

04947FITTING KIT, DISC BRAKE, FRONT

main04947-42050iNCP131201305-201907

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iNCP131201305-201907

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iNCP131201305-201907

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208iNCP131201305-201907

*12-1.25PX29.5-23

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-12A10iNCP131201305-201907

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47715-52190iNCP131201305-201907

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-52191iNCP131..R201305-201907

main47721-52211iNCP131..5D..USA;NCP131..3D..5F..USA201407-201907

REAR WHEEL BRAKE-DISC

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90105-08164iNCP131201305-201907

*8-1.00PX23-15

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-52191iNCP131..R201305-201907

main47722-52211iNCP131..S201407-201907

REAR WHEEL BRAKE-DISC

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-12B00iNCP131..R201504-201907

main47730-52191iNCP131201305-201504

main47730-52211iNCP131..USA201407-201907

REAR WHEEL BRAKE-DISC

47731PISTON, FRONT DISC BRAKE

main47731-52190iNCP131201305-201907

main47731-52210iNCP131..3D..S201407-201907

REAR WHEEL BRAKE-DISC

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90520-86005iNCP131..5D..S201407-201907

REAR WHEEL BRAKE-DISC

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-12B00iNCP131..R201504-201907

main47750-52191iNCP131201305-201504

main47750-52211iNCP131..S201407-201907

REAR WHEEL BRAKE-DISC

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-50010iNCP131201305-201907

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-52191iNCP131201305-201907

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-52190iNCP131201305-201907

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-52030iNCP131201305-201907

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-52030iNCP131201305-201907

21 parts on this diagram · 1 diagram in section
