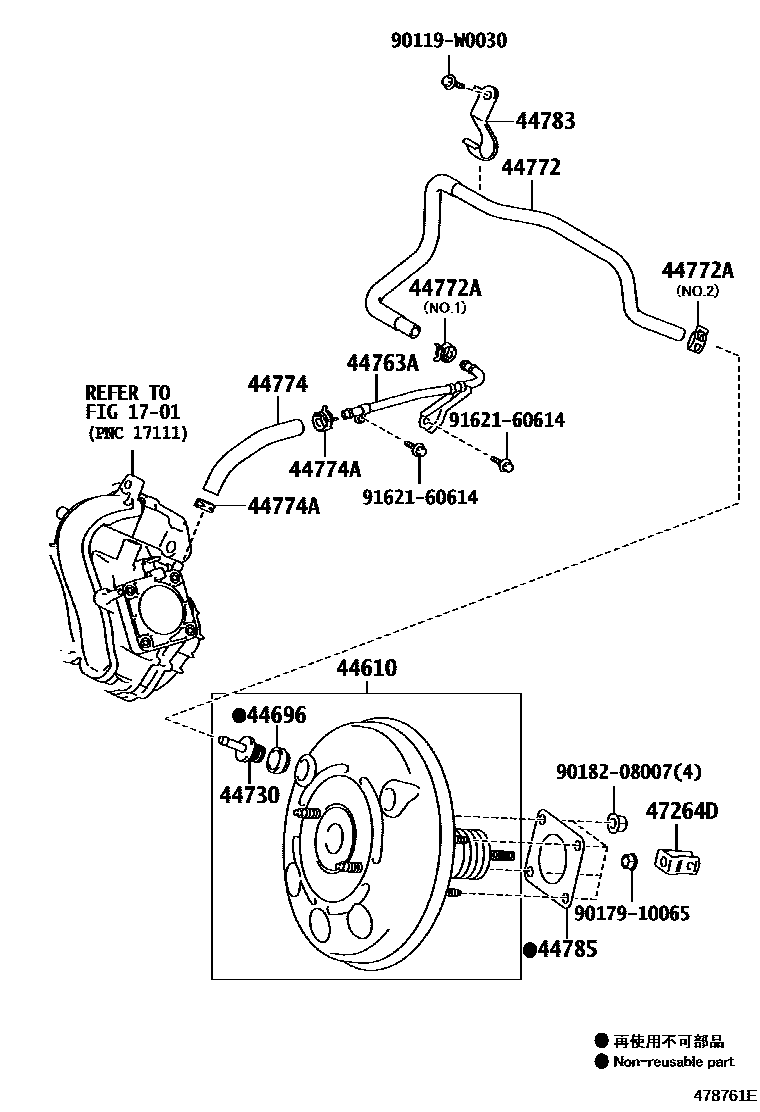

BRAKE BOOSTER & VACUUM TUBE

1701MANIFOLD

→ Go to FIG 17-01

44610BOOSTER ASSY, BRAKE

main44610-52B50iNCP131201305-201407

main44610-52F30iNCP131..R; NCP131..USA201407-201703

PUERTO RICO SPEC&SE PACKAGE

main44610-52F40iNCP131..S; NCP131..USA201407-201703

SE PACKAGE

44696GROMMET, CHECK VALVE

main90480-24439iNCP131201703-201907

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-60070iNCP131201407-201703

44763ATUBE, HOSE TO HOSE, NO.1

main44763-52080iNCP131201305-201407

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-52180iNCP131201407-201703

44772ACLIP(FOR CHECK VALVE TO CONNECTOR TUBE)

main90467-16014iNCP131201703-201907

NO.2:REFER ILLUST.

main96133-41500iNCP131201305-201407

NO.1:REFER ILLUST.

44774HOSE, UNION TO CONNECTOR TUBE

main95446-09130iNCP131201407-201703

44774ACLIP(FOR UNION TO CONNECTOR TUBE HOSE)

main96133-41500×2iNCP131201407-201501

main96136-41801×2iNCP131201502-201703

44783CLAMP, VACUUM HOSE

main44783-52070iNCP131201407-201703

44785GASKET, BRAKE BOOSTER

main44785-16020iNCP131201407-201703

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-52040iNCP131201305-201407

main47264-52060iNCP131201407-201703

90119W0030

main90119-W0030

9017910065

main90179-10065

9018208007

main90182-08007

9162160614

main91621-60614

16 parts on this diagram · 1 diagram in section
