Toyota YARIS (FRP)116 — BRAKE PEDAL & BRACKET

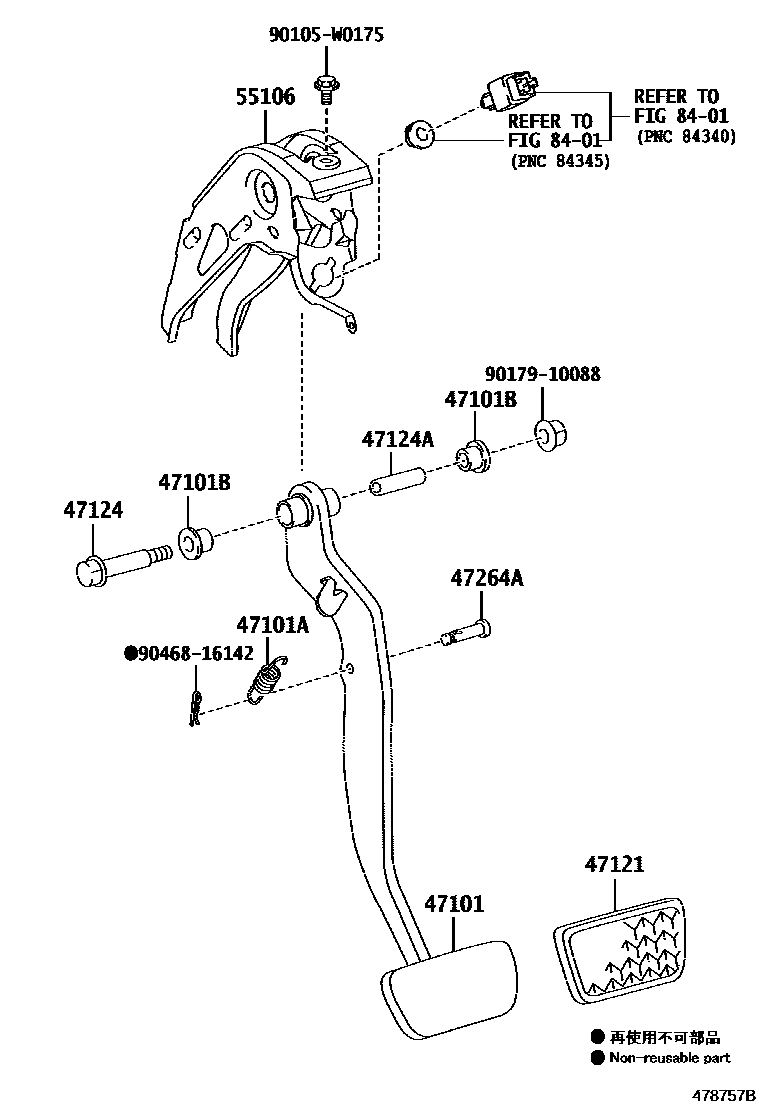

Parts diagram

47101PEDAL SUB-ASSY, BRAKE

47101ASPRING(FOR BRAKE PEDAL RETURN)

47101BBUSH(FOR BRAKE PEDAL)

47121PAD, BRAKE PEDAL

47124SHAFT, BRAKE PEDAL

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

47264APIN(FOR PUSH ROD)

55106SUPPORT SUB-ASSY, BRAKE PEDAL

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

90105W0175

9017910088

9046816142

12 parts on this diagram · 2 diagrams in section

BRAKE PEDAL & BRACKET for Toyota YARIS (FRP)116

This section contains 15 genuine Toyota parts for the BRAKE PEDAL & BRACKET system of the Toyota YARIS (FRP)116. Key components include: PEDAL SUB-ASSY, BRAKE, SPRING(FOR BRAKE PEDAL RETURN), BUSH(FOR BRAKE PEDAL), PAD, BRAKE PEDAL, SHAFT, BRAKE PEDAL.
