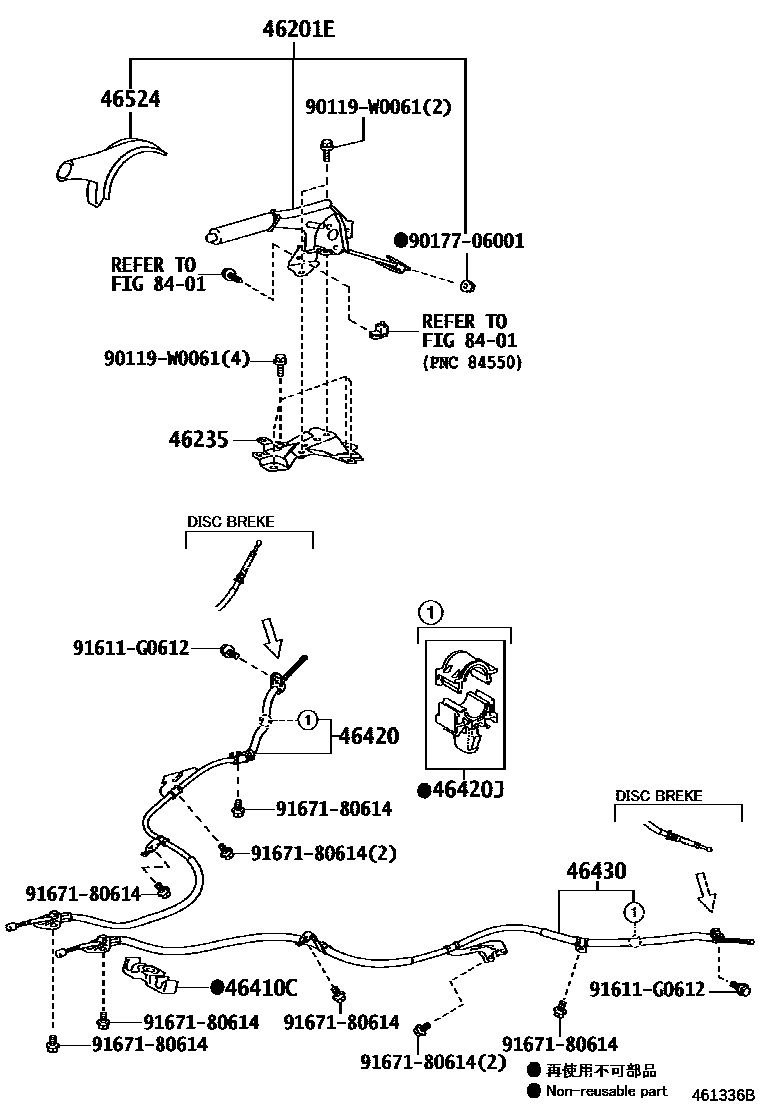

PARKING BRAKE & CABLE
46201ELEVER SUB-ASSY, PARKING BRAKE
BLACK,TRIM0#,2#; BLACK,TRIM1#,2#
BLACK,TRIM0#,2#; BLACK,TRIM2#
BLACK/SATIN CHROME,TRIM2#; SE PACKAGE,BLACK/SATIN CHROME,TRIM2#
REAR SEAT-6:4 FOLDING TYPE, WITHOUT(RECLINING),BLACK,TRIM1#
LE PACKAGE,BLACK/SATIN CHROME,TRIM2#; PUERTO RICO SPEC&SE PACKAGE,BLACK/SATIN CHROME,TRIM2#
46235BRACKET, PARKING BRAKE LEVER SUPPORT
46410CCLAMP(FOR PARKING BRAKE FRONT CABLE)
46420CABLE ASSY, PARKING BRAKE, NO.2
SE PACKAGE
PUERTO RICO SPEC&SE PACKAGE
46420JCLAMP, NO.3(FOR PARKING BRAKE CABLE)
46430CABLE ASSY, PARKING BRAKE, NO.3
SE PACKAGE
PUERTO RICO SPEC&SE PACKAGE
46524COVER, PARKING BRAKE DUST
BLACK,TRIM0#,2#; BLACK,TRIM1#,2#; BLACK,TRIM2#,3#
BLACK,TRIM0#,2#; BLACK,TRIM2#; LE PACKAGE,BLACK,TRIM2#; PUERTO RICO SPEC&SE PACKAGE,BLACK,TRIM2#; SE PACKAGE,BLACK,TRIM2#
BLACK,TRIM2#
8401SWITCH & RELAY & COMPUTER
90119W0061
main90119-W0061
9017706001
main90177-06001
91611G0612
main91611-G0612
9167180614
main91671-80614
12 parts on this diagram · 1 diagram in section
