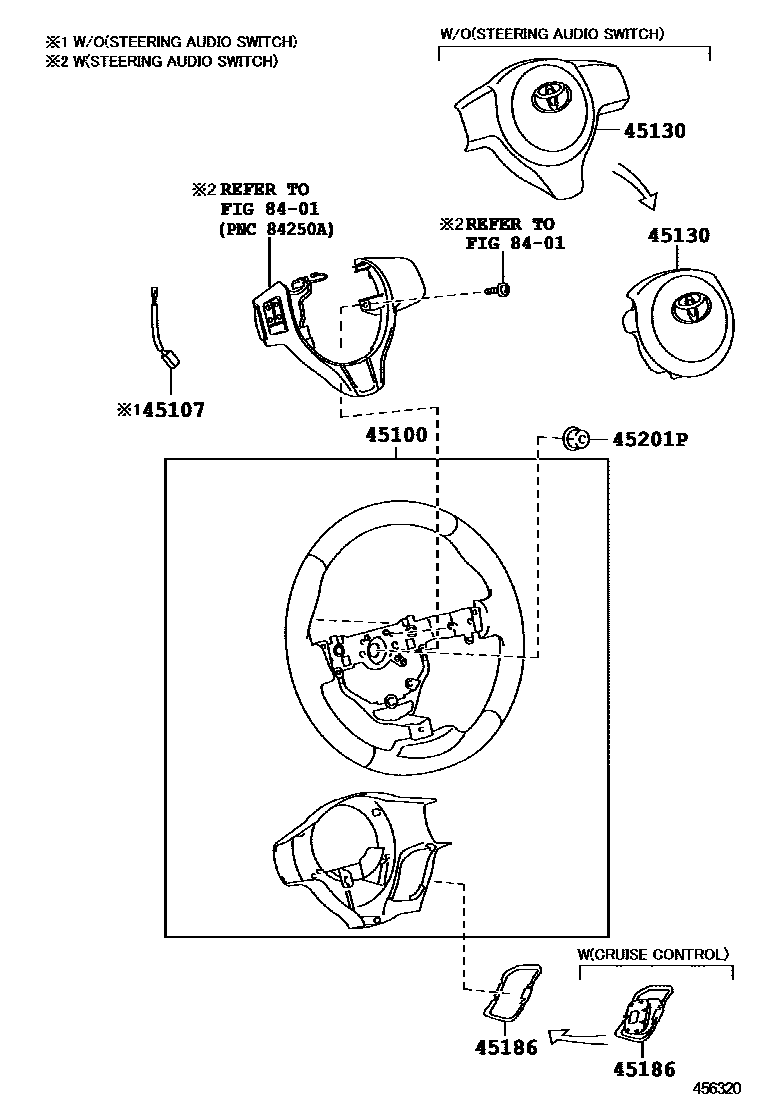

STEERING WHEEL
45100WHEEL ASSY, STEERING
3-SPOKE, URETHANE,BLACK,TRIM1#
3-SPOKE, LEATHER,STEERING WHEEL-LEATHER,WITH(SRS AIR BAG),BLACK,TRIM1#
45107WIRE SUB-ASSY, HORN BUTTON
CRUISE CONTROL-WITH; CRUISE CONTROL-WITH&STEERING SWITCH-WITH(AUDIO); STEERING SWITCH-WITH(AUDIO)
45130BUTTON ASSY, HORN
BLACK,TRIM1#
BLACK,TRIM2#,3#; STEERING SWITCH-W(AUDIO),BLACK,TRIM0#,1#,2#,3#
45186COVER, STEERING WHEEL, LOWER NO.2
BLACK,TRIM2#,3#; CRUISE CONTROL-WITH,BLACK,TRIM0#,1#,2#,3#; CRUISE CONTROL-WITH,BLACK,TRIM1#,2#
CRUISE CONTROL-WITH,BLACK,TRIM1#
45201PNUT, STEERING WHEEL SET
8401SWITCH & RELAY & COMPUTER
6 parts on this diagram · 2 diagrams in section
