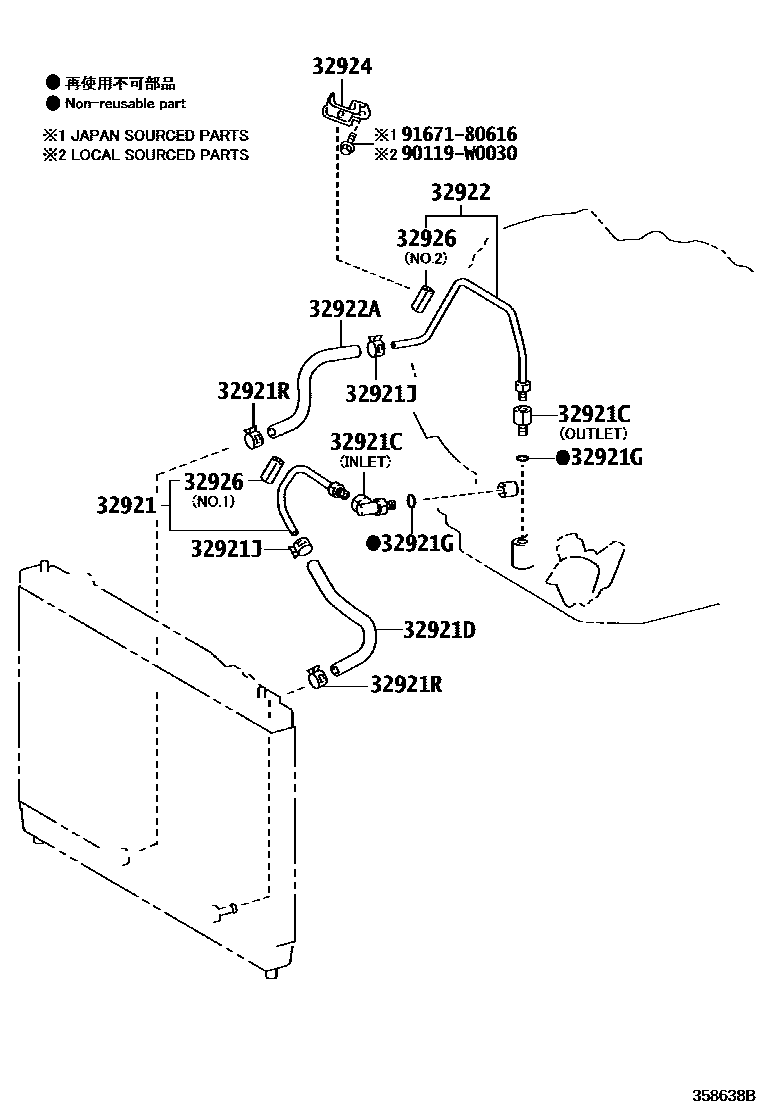

OIL COOLER & TUBE (ATM)

32921TUBE, OIL COOLER INLET, NO.1

main32921-52060iNCP131..3D..4FC..S201703-201811

32921CUNION(FOR OIL COOLER TUBE)

main90404-14007iNCP131..5D..4FC;NCP131..3D..4FC..R201703-201907

OUTLET

main90407-14003iNCP131..3D..4FC..S201703-201811

INLET

32921DHOSE(FOR OIL COOLER INLET)

main90445-15046iNCP131..3D..4FC..S201703-201811

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10018×2iNCP131..4FC201407-201703

main90301-10189×2iNCP131..4FC201305-201307

32921JCLIP(FOR OIL COOLER HOSE)

main96135-51300×2iNCP131..5D..4FC;NCP131..3D..4FC..R201703-201907

32921RCLIP, NO.2(FOR OIL COOLER HOSE)

main96135-51300×2iNCP131..4FC201407-201703

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-52060iNCP131..4FC201407-201703

32922AHOSE(FOR OIL COOLER OUTLET)

main90445-15044iNCP131..4FC201407-201703

32924CLAMP, OIL COOLER TUBE, NO.2

main32924-52030iNCP131..4FC201407-201703

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-10010iNCP131..4FC201407-201703

L=30,ID=8,NO.1

main32926-22010iNCP131..5D..4FC;NCP131..3D..4FC..R201703-201907

L=35,ID=8,NO.2

90119W0030

main90119-W0030

9167180616

main91671-80616

12 parts on this diagram · 1 diagram in section
