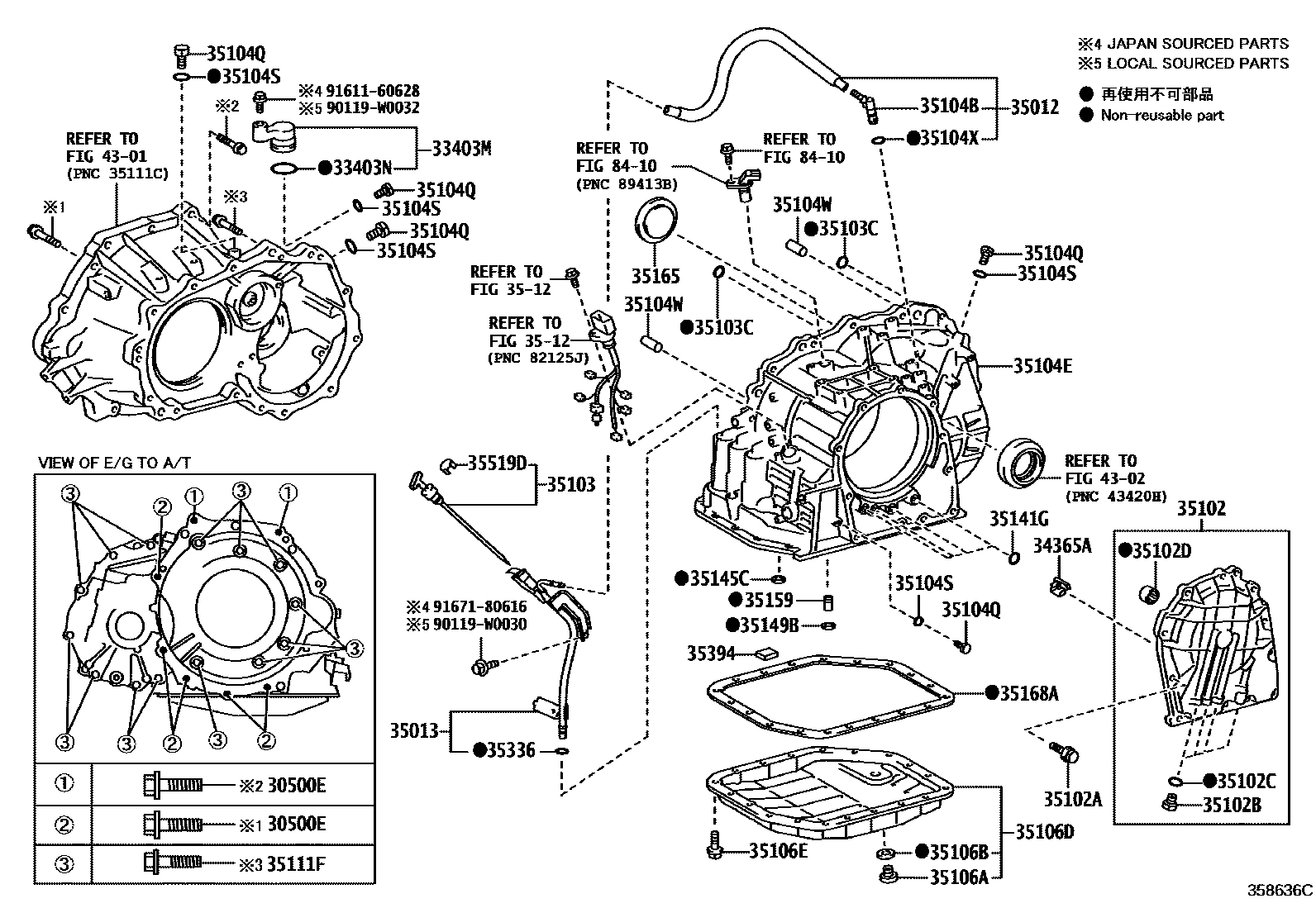

TRANSMISSION CASE & OIL PAN (ATM)

30500EBOLT(FOR TRANSAXLE & ENGINE SETTING)

main90119-W0155×7iNCP131..4FC201407-201703

*10-1.25PX45-30,(L)

main91612-61045×7iNCP131..5D..4FC;NCP131..3D..4FC..R201703-201907

*10-1.25PX45-30,(J)

33403MCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE (ATM)

main33403-20230iNCP131..4FC201407-201703

33403NRING, O (FOR ATM SPEEDOMETER DRIVEN HOLE COVER)

main96711-24018iNCP131..4FC201407-201703

34365ARETAINER, OUTER RACE

main34365-52012iNCP131..4FC201407-201703

35012HOSE SUB-ASSY, TRANSMISSION BREATHER

main35012-12010iNCP131..4FC201407-201703

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-52160iNCP131..4FC201407-201703

35102COVER SUB-ASSY, TRANSAXLE REAR

main35102-52020iNCP131..4FC201407-201703

35102ABOLT (FOR TRANSAXLE REAR COVER SETTING)

main90105-08365×11iNCP131..3D..4FC..S201703-201811

*8-1.25PX28-20

35102BPLUG(FOR TRANSAXLE REAR COVER)

main90341-08001×4iNCP131..4FC201407-201703

35102CRING, O(FOR TRANSAXLE REAR COVER PULG)

main90301-06196×4iNCP131..4FC201407-201703

35102DBEARING, NEEDLE ROLLER(FOR TRANSAXLE REAR COVER)

main90364-14007iNCP131..4FC201407-201703

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-52160iNCP131..4FC201407-201703

35103CRING, O

main90301-06008×2iNCP131..4FC201305-201307

main90301-06024×2iNCP131..4FC201407-201703

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03166iNCP131..4FC201407-201703

35104ECASE SUB-ASSY, AUTOMATIC TRANSAXLE

main35104-52032iNCP131..4FC201407-201703

35104QPLUG, NO.1 (FOR TRANSAXLE CASE)

main90341-08001×5iNCP131..4FC201407-201703

35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)

main90301-06196×5iNCP131..4FC201305-201407

35104WPIN, STRAIGHT (FOR TRANSAXLE CASE)

main90250-10017×2iNCP131..3D..4FC..S201703-201811

35104XRING, O (FOR BREATHER PLUG)

main90301-06005iNCP131..4FC201305-201307

main90301-06021iNCP131..3D..4FC..S201703-201811

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-18016iNCP131..4FC201407-201506

main90341-18023iNCP131..4FC201507-201703

35106BGASKET, DRAIN PLUG (ATM)

main90430-18008iNCP131..4FC201305-201407

35106DPAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL

main35106-52020iNCP131..4FC201407-201703

35106EBOLT (FOR TRANSAXLE OIL PAN)

main90119-06173×19iNCP131..4FC201407-201703

35111FBOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)

main90105-08071×14iNCP131..4FC201407-201703

*8-1.25PX30-25

3512VALVE BODY & OIL STRAINER (ATM)

→ Go to FIG 35-12

35141GRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-10018×4iNCP131..3D..4FC..S201703-201811

main90301-10189×4iNCP131..4FC201305-201307

35145CGASKET, TRANSAXLE CASE

main35145-21010iNCP131..4FC201305-201407

35149BGASKET, TRANSAXLE CASE 2ND BRAKE

main35149-21010iNCP131..4FC201305-201407

35159GASKET, BRAKE DRUM

main35159-21010iNCP131..4FC201407-201703

35165PLATE, TRANSMISSION CASE, NO.1

main35165-52030iNCP131..5D..4FC;NCP131..3D..4FC..R201703-201907

35168AGASKET, AUTOMATIC TRANSAXLE OIL PAN

main35168-52020iNCP131..4FC201407-201703

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173iNCP131..4FC201407-201703

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011×2iNCP131..4FC201407-201703

35519DLABEL, AUTOMATIC TRANSMISSION INFORMATION

main35519-41010iNCP131..4FC201407-201703

4301FRONT AXLE HOUSING & DIFFERENTIAL

→ Go to FIG 43-01

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

8410OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

→ Go to FIG 84-10

90119W0030

main90119-W0030

90119W0032

main90119-W0032

9161160628

main91611-60628

9167180616

main91671-80616

41 parts on this diagram · 1 diagram in section
