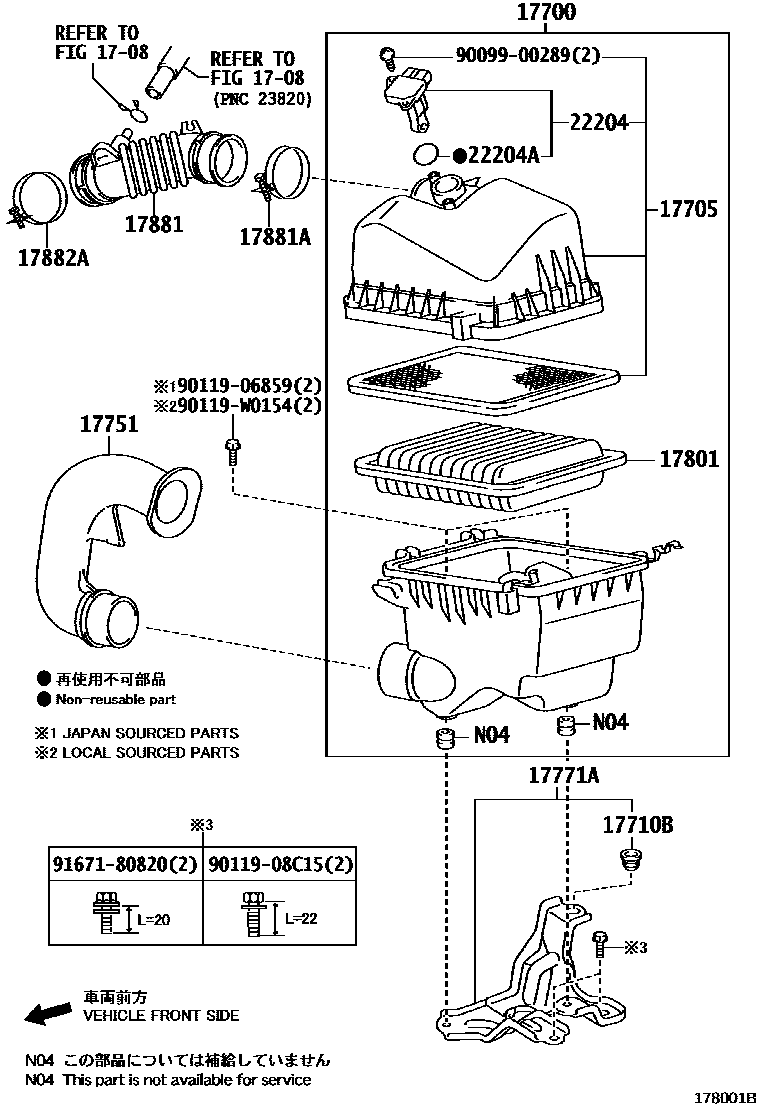

AIR CLEANER

1708VACUUM PIPING

→ Go to FIG 17-08

17700CLEANER ASSY, AIR

main17700-21130i1NZFE..NCP131201305-201407

17705CAP SUB-ASSY, AIR CLEANER

main17705-21100i1NZFE..NCP131201407-201703

17710BGROMMET

main90480-18006i1NZFE..NCP131201703-201907

17751INLET, AIR CLEANER, NO.1

main17751-21160i1NZFE..NCP131201407-201703

17771ABRACKET, AIR CLEANER

main17771-21050i1NZFE..NCP131201407-201703

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-0D060i1NZFE..NCP131201703-201907

(L)

main17801-21050i1NZFE..NCP131201703-201907

(J)

17881HOSE, AIR CLEANER, NO.1

main17880-21091i1NZFE..NCP131201407-201703

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10690i1NZFE..NCP131201407-201703

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main96111-10690i1NZFE..NCP131201407-201703

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-0C020i1NZFE..NCP131201407-201703

(L)

main22204-22010i1NZFE..NCP131201703-201907

(J)

22204ARING, O(FOR INTAKE AIR FLOW METER)

main90099-14141i1NZFE..NCP131..3D..S201703-201811

9009900289

main90099-00289

9011906859

main90119-06859

9011908C15

main90119-08C15

90119W0154

main90119-W0154

9167180820

main91671-80820

17 parts on this diagram · 1 diagram in section
