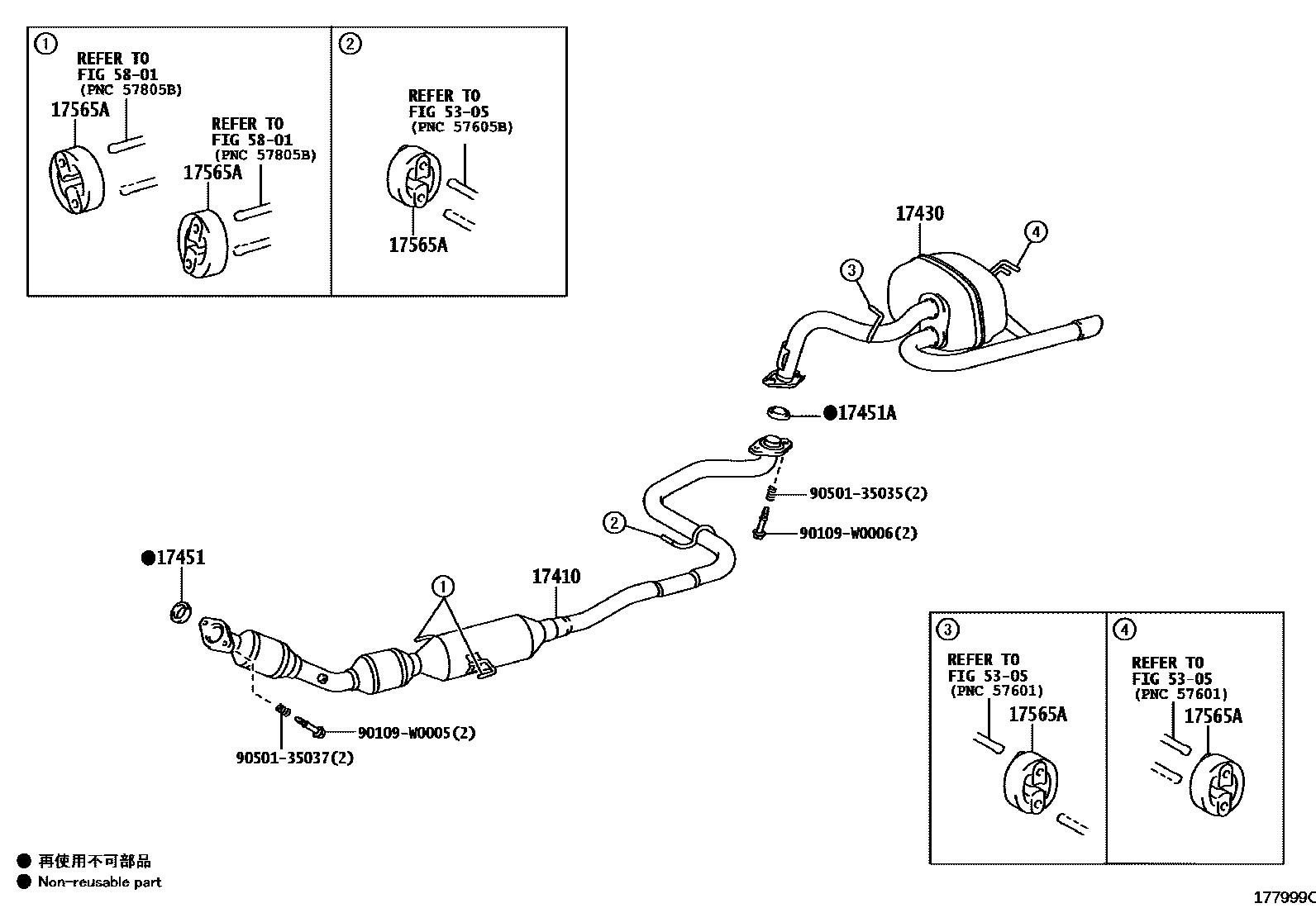

EXHAUST PIPE

17410PIPE ASSY, EXHAUST, FRONT

main17410-0M280i1NZFE..NCP131201407-201703

17430PIPE ASSY, EXHAUST, TAIL

main17430-0M250i1NZFE..NCP131201407-201703

17451GASKET, EXHAUST PIPE

main17451-0J030i1NZFE..NCP131201407-201703

17451AGASKET, EXHAUST PIPE, NO.2

main17451-0J022i1NZFE..NCP131201407-201703

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-0Q030×5i1NZFE..NCP131201407-201703

5305FLOOR SIDE MEMBER

→ Go to FIG 53-05

5801FLOOR PAN & LOWER BACK PANEL

→ Go to FIG 58-01

90109W0005

main90109-W0005

90109W0006

main90109-W0006

9050135035

main90501-35035

9050135037

main90501-35037

11 parts on this diagram · 1 diagram in section
