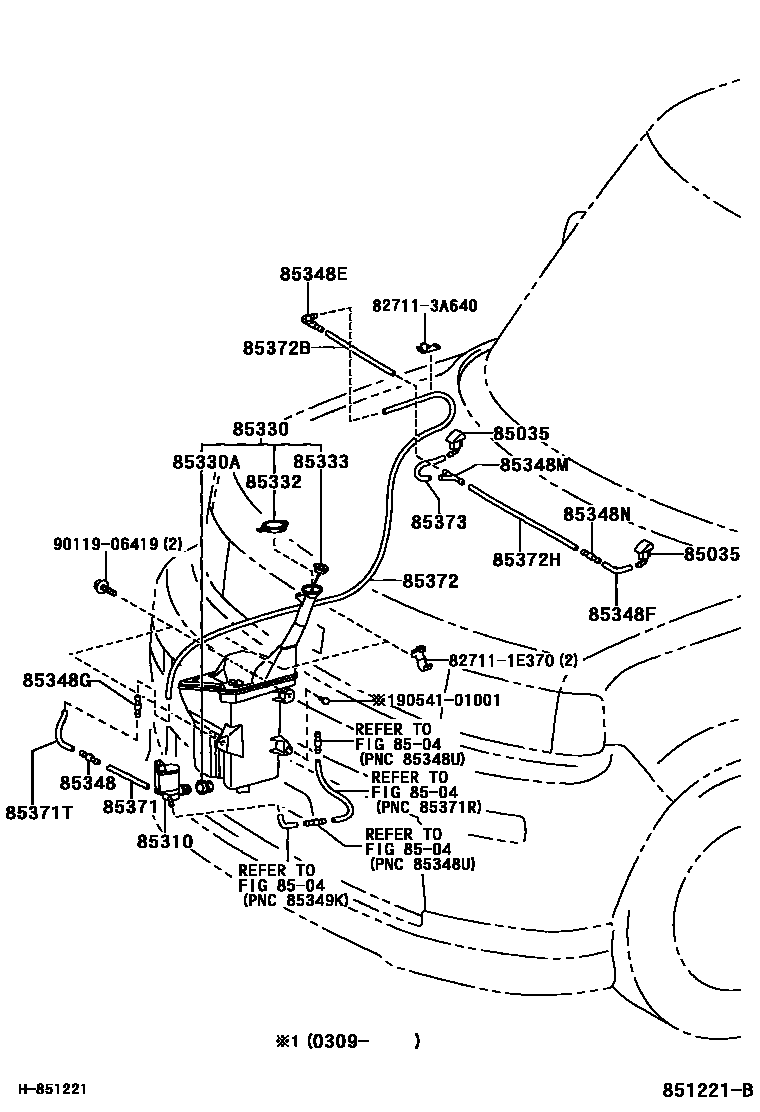

WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-52230×2iNCP31200304

8504REAR WASHER

→ Go to FIG 85-04

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-20470iNCP31200304

85330JAR ASSY, WINDSHIELD WASHER

main85315-52090iNCP31200304

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iNCP31200304

85332CAP, WINDSHIELD WASHER JAR

main85316-52130iNCP31200304

85333FILTER, WINDSHIELD WASHER JAR

main85312-52010iNCP31200304

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85334-22470iNCP31200304

85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2

main85378-12480iNCP31200304

85348FJOINT, WINDSHIELD WASHER ELBOW, NO.3

main85336-12230iNCP31200304

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85349-89122iNCP31200304

85348MJOINT, WINDSHIELD WASHER HOSE, NO.3

main85348-12250iNCP31200304

85348NJOINT, WINDSHIELD WASHER HOSE, NO.4

main85349-89122iNCP31200304

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33075iNCP31200304

L=1100(*H,L=140)

85371THOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT)

main90099-33080iNCP31200304

L=1450(*H,L=130)

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-62025iNCP31200304

L=1450(*H,L=1380)

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-33080iNCP31200304

L=1450(*H,L=270)

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90099-33080iNCP31200304

L=1450(*H,L=600)

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080iNCP31200304

L=1450(*H,L=170)

827111E370WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E370

827113A640WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3A640

9011906419

main90119-06419

9054101001

main90541-01001

23 parts on this diagram · 1 diagram in section
