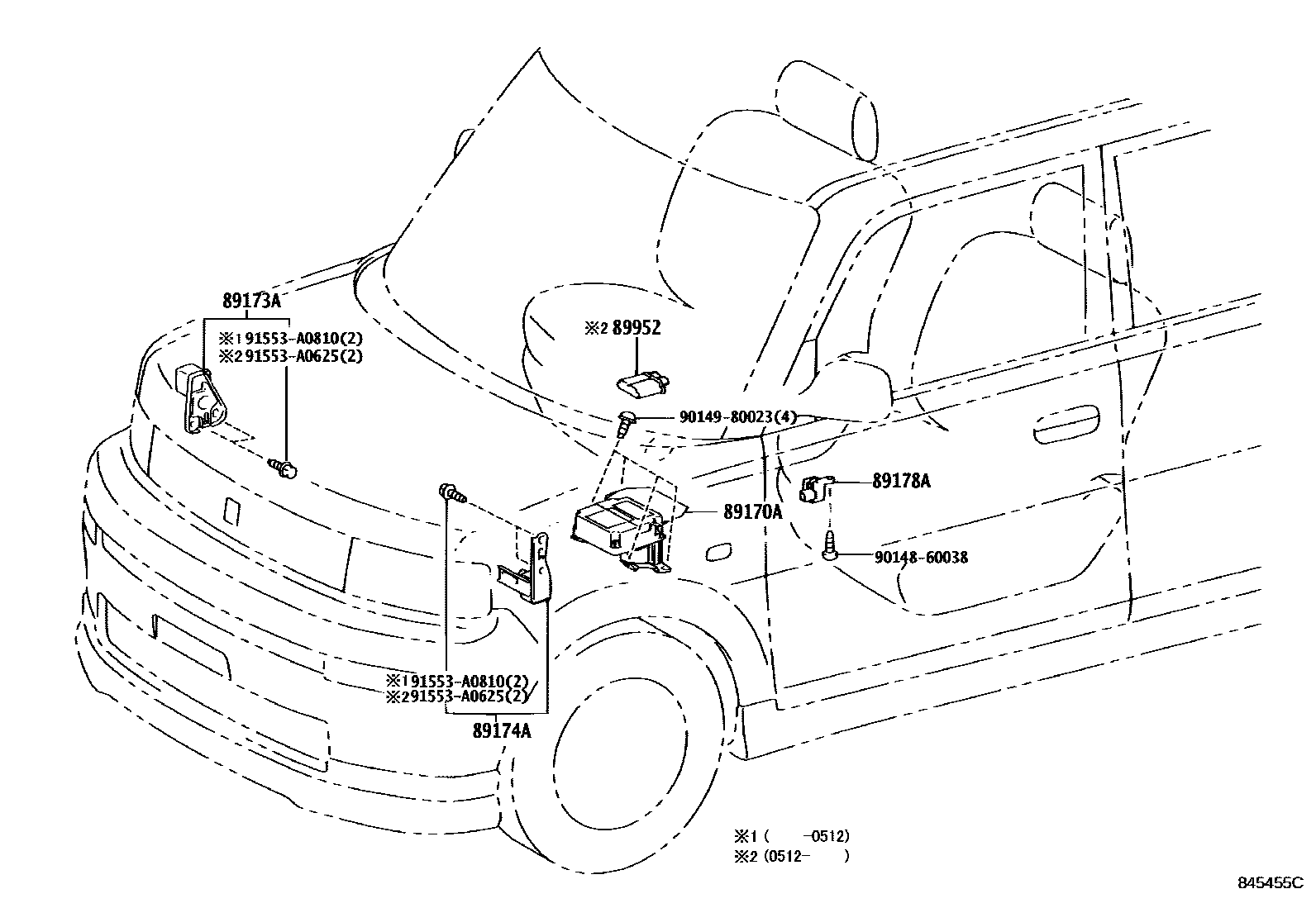

AIR BAG

89170ACOMPUTER ASSY, AIRBAG

main89170-52390iNCP31200304-200512

main89170-52860iNCP31200512

89173ASENSOR, AIRBAG, FRONT RH

main89173-09270iNCP31200512-200612

main89173-69115iNCP31200304-200512

89174ASENSOR, AIRBAG, FRONT LH

main89173-09270iNCP31200512-200612

main89174-69115iNCP31200304-200512

89178ASENSOR, SEAT POSITION AIRBAG

main89178-06020iNCP31200304-200512

main89178-33040iNCP31200512

89952COMPUTER, OCCUPANT DETECTION

main89952-35011iNCP31200512-200612

9014860038

main90148-60038

9014980023

main90149-80023

91553A0625

main91553-A0625

91553A0810

main91553-A0810

9 parts on this diagram · 1 diagram in section
