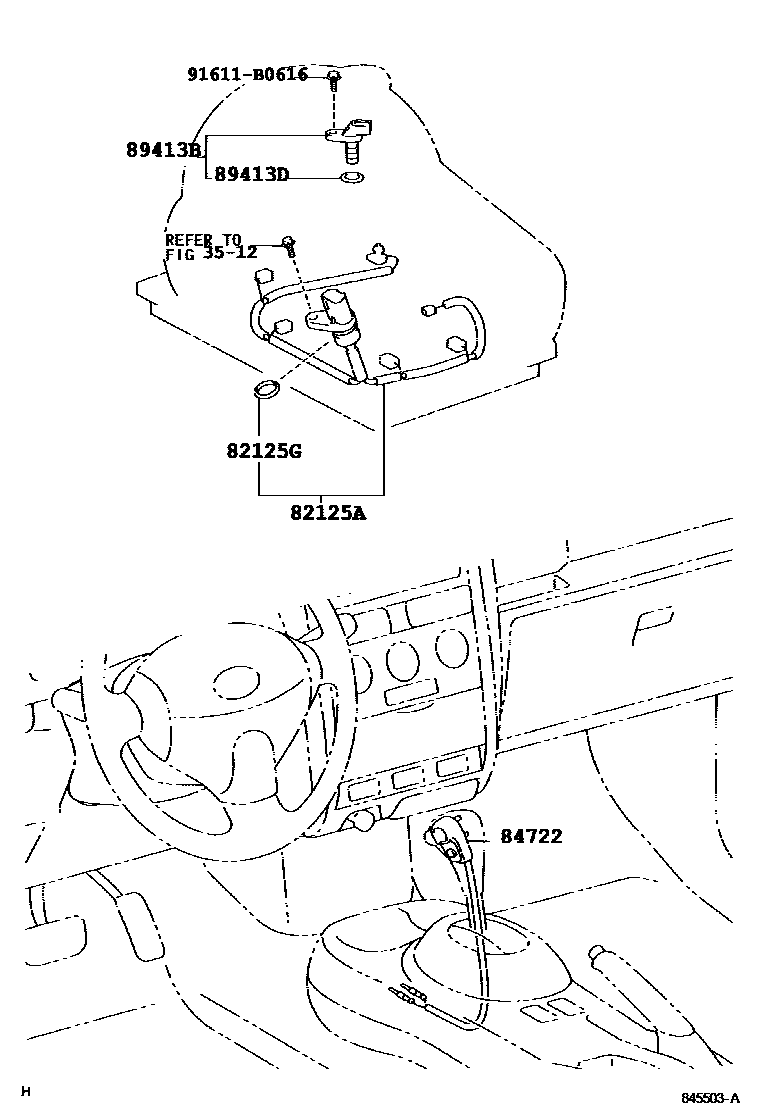

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

3512VALVE BODY & OIL STRAINER (ATM)

→ Go to FIG 35-12

82125AWIRE, TRANSMISSION

main82125-20270iNCP31..ATM200304-200508

main82125-52110iNCP31..ATM200508-200612

82125GRING, O(FOR TRANSMISSION WIRE)

main90301-21009iNCP31..ATM200304

84722SWITCH, TRANSMISSION CONTROL

main84722-52090-B0iNCP31..ATM200304-200612

DK.GRAY,TRIM9#

89413BSENSOR, TRANSMISSION REVOLUTION

main89413-32010iNCP31..ATM200304-200612

89413DRING, O(FOR TRANSMISSION REVOLUTION SENSOR)

main90301-11008iNCP31..ATM200304

91611B0616

main91611-B0616

7 parts on this diagram · 1 diagram in section
