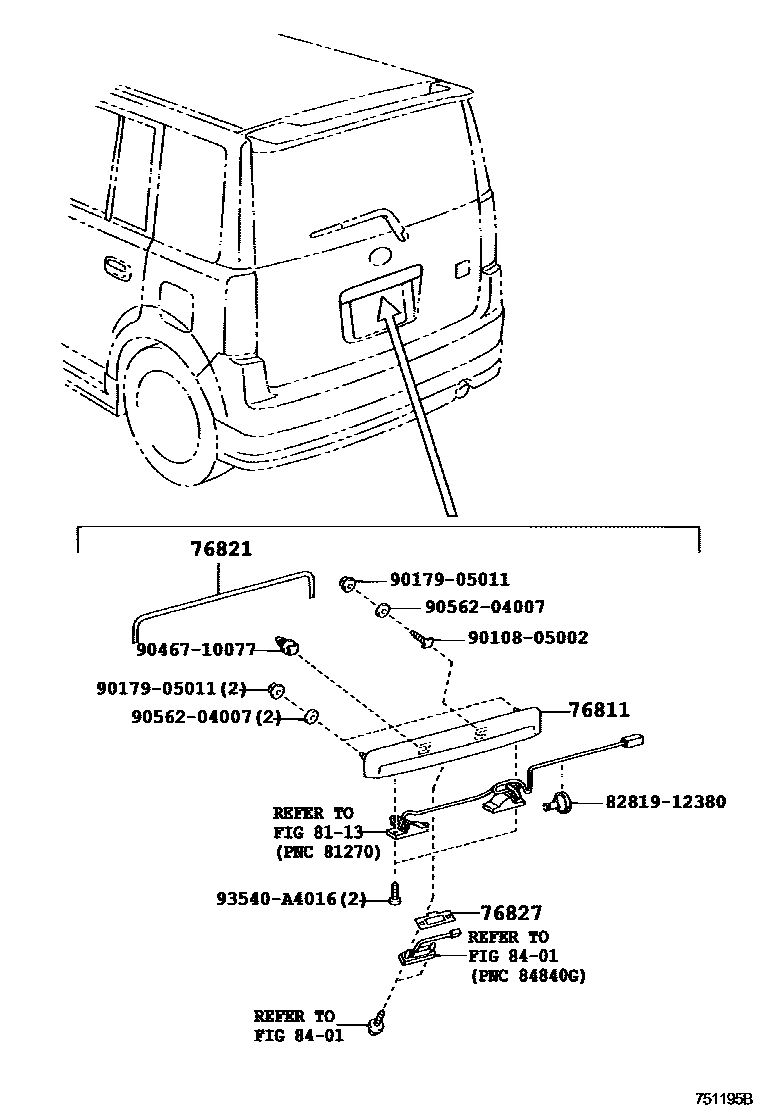

REAR MOULDING
76811GARNISH, BACK DOOR, OUTSIDE
WHITE,068
GRAY ME.,1D2
DK. GRAY M.M.,1F4
BLACK MC.,209
BORDEAUX MC.,3P2
DK. RED M.M.,3Q3
SPECIAL EDITION(USA),ORANGE ME.,4R8
SPECIAL EDITION(USA),SUPER BRIGHT YELLOW,576
DK.GRAYISH OLIVE ME,6M7
SPECIAL EDITION(USA),GREEN M.M.,6U1
DARK BLUE MC.,8P8
WHITE,068
GRAY ME.,1D2
DK. GRAY M.M.,1F4
BLACK MC.,209
SPECIAL EDITION(USA),AGATE SS.,3R2
DK. RED M.M.,3Q3
DARK BLUE MC.,8P8
76821PROTECTOR, BACK DOOR GARNISH MOULDING, UPPER
76827RETAINER, BACK DOOR GARNISH, NO.2
8113REAR LICENSE PLATE LAMP
8401SWITCH & RELAY & COMPUTER
8281912380GROMMET, WIRING HARNESS
main82819-12380
9010805002
main90108-05002
9017905011
main90179-05011
9046710077
main90467-10077
9056204007
main90562-04007
93540A4016
main93540-A4016
11 parts on this diagram · 1 diagram in section
