ARMREST & VISOR

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-52230iNCP31200304-200612

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-52190iNCP31200304-200612

74310VISOR ASSY, RH

main74310-52330-B0iNCP31200304-200404

LT.GRAY,TRIM9#

main74310-52450-B0iNCP31200404-200512

LT.GRAY,TRIM9#

main74310-52451-B0iNCP31200512-200612

LT.GRAY,TRIM9#

74320VISOR ASSY, LH

main74320-52440-B0iNCP31200304-200512

LT.GRAY,TRIM9#

main74320-52441-B0iNCP31200512-200612

LT.GRAY,TRIM9#

74348BHOLDER, VISOR, RH

main74348-12030-B5iNCP31200304-200612

LT.GRAY,TRIM9#

74348CHOLDER, VISOR, LH

main74348-12030-B5iNCP31200304-200612

LT.GRAY,TRIM9#

74610AGRIP SUB-ASSY, ASSIST

main74611-52010-B0×4iNCP31200304-200612

LT.GRAY,TRIM9#

74631BHOOK, COAT

main74631-28010-B1×2iNCP31200304-200612

LT.GRAY,TRIM9#

9011906975

main90119-06975

9016250022

main90162-50022

9046805114

main90468-05114

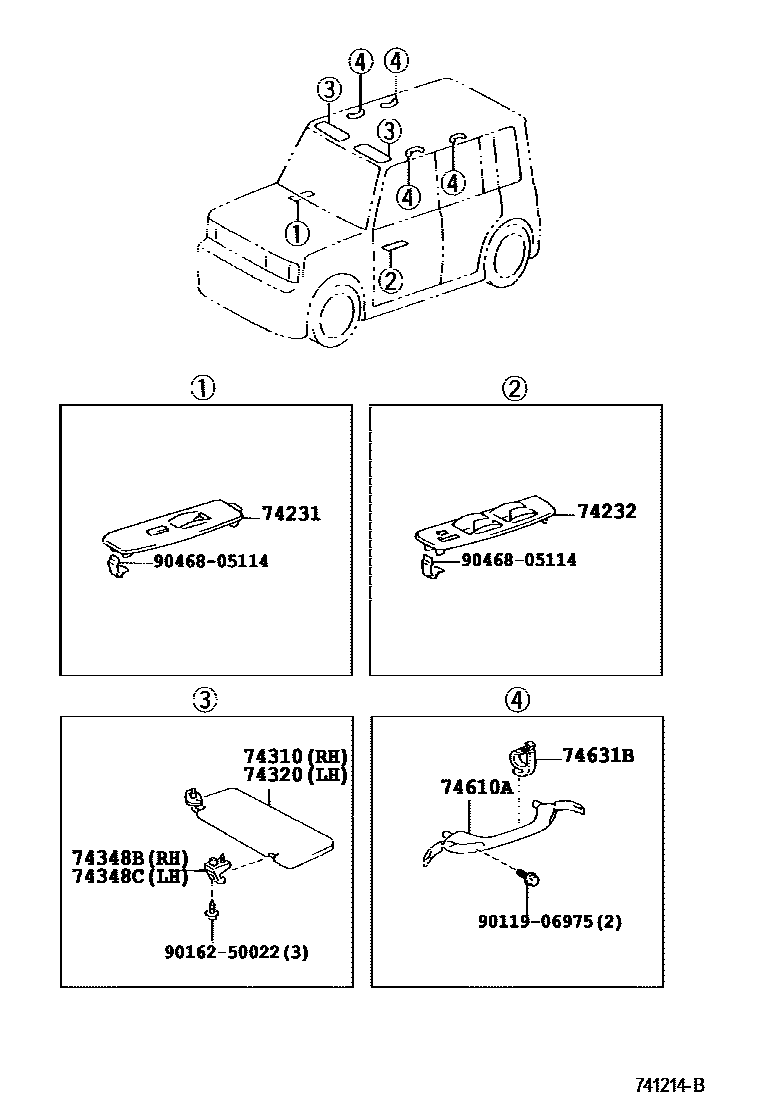

11 parts on this diagram · 1 diagram in section
