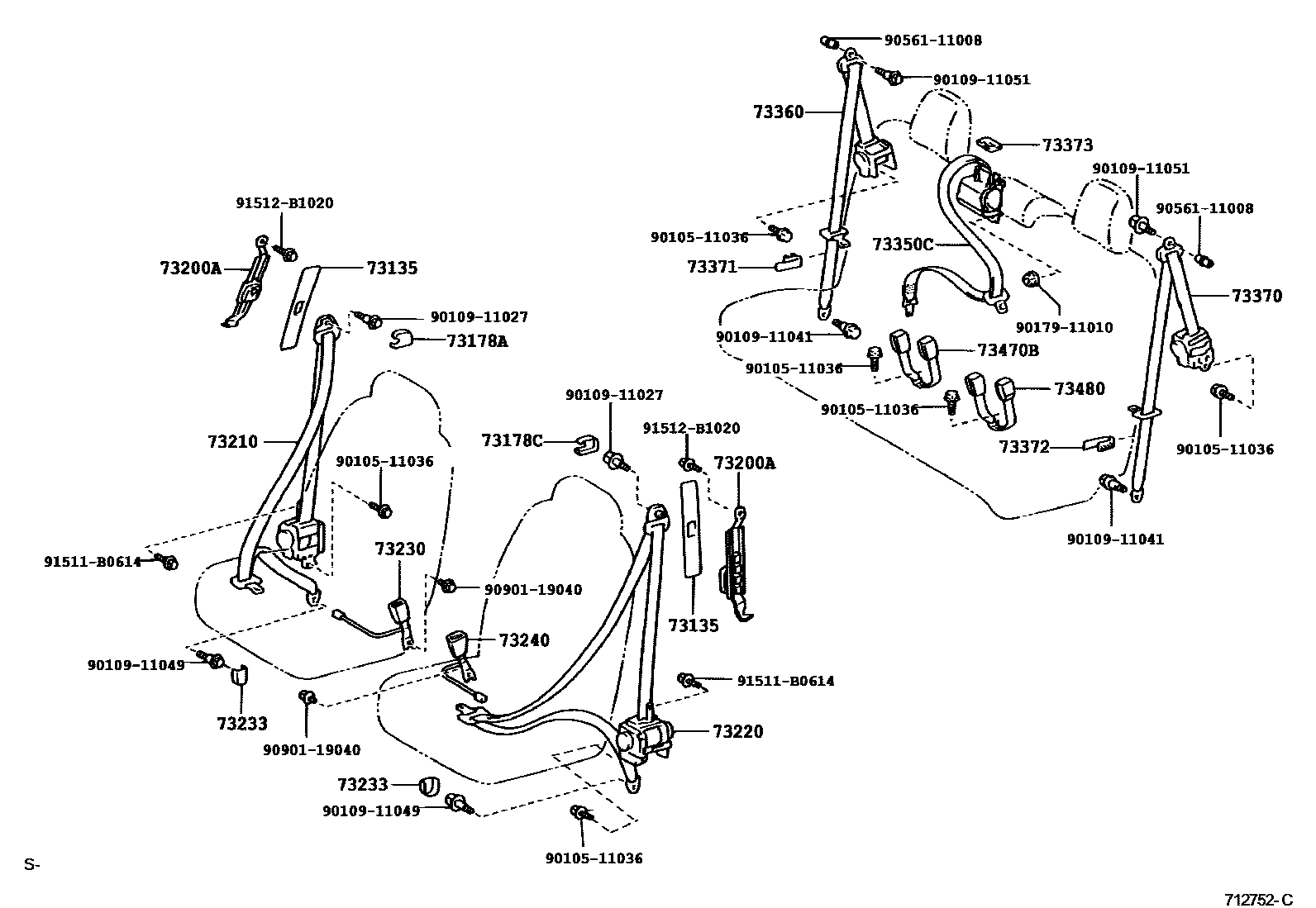

SEAT BELT & CHILD RESTRAINT SEAT

0001 1 0002 1

73135COVER, SHOULDER BELT ANCHORAGE PLATE

main73135-12030-B9×2iNCP31200304-200612

LT.GRAY,TRIM9#

73178ACAP, SEAT BELT ANCHOR COVER

main73178-33020-B3iNCP31200304-200612

LT.GRAY,TRIM9#

73178CCAP, SEAT BELT ANCHOR COVER

main73178-33020-B3iNCP31200304-200612

LT.GRAY,TRIM9#

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-52040-B0×2iNCP31200304-200612

LT.GRAY,TRIM9#

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-52390-C0iNCP31200304-200612

BLACK,TRIM9#

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-52440-C0iNCP31200304-200512

BLACK,TRIM9#

main73220-52441-C0iNCP31200512-200612

BLACK,TRIM9#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-52381-B0iNCP31200304-200512

DK.GRAY,TRIM9#

main73230-52382-B0iNCP31200512-200612

DK.GRAY,TRIM9#

73233COVER, LAP BELT OUTER ANCHOR

main73233-33010-B8iNCP31200304-200612

DK.GRAY,TRIM9#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-52370-B0iNCP31200304-200512

DK.GRAY,TRIM9#

main73230-52371-B0iNCP31200512-200612

DK.GRAY,TRIM9#

73350CBELT ASSY, REAR SEAT, OUTER CENTER

main73350-52030-C0iNCP31200304-200612

BLACK,TRIM9#

73360BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH

main73360-52031-C0iNCP31200304-200407

BLACK,TRIM9#

main73360-52032-C0iNCP31200408-200612

BLACK,TRIM9#

73370BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH

main73370-52031-C0iNCP31200304-200407

BLACK,TRIM9#

main73370-52032-C0iNCP31200408-200612

BLACK,TRIM9#

73371HANGER, REAR SEAT SHOULDER BELT, RH

main73371-16050-B9iNCP31200304-200612

DK.GRAY,TRIM9#

73372HANGER, REAR SEAT SHOULDER BELT, LH

main73371-16050-B9iNCP31200304-200612

DK.GRAY,TRIM9#

73373COVER, REAR SEAT SHOULDER BELT

main73373-52040-B0iNCP31200304-200612

DK.GRAY,TRIM9#

73470BBELT ASSY, REAR SEAT INNER W/CENTER, RH

main73470-52170-C0iNCP31200304-200612

BLACK,TRIM9#

73480BELT ASSY, REAR SEAT INNER W/CENTER, LH

main73480-52190-C0iNCP31200304-200612

BLACK,TRIM9#

9010511036

main90105-11036

9010911027

main90109-11027

9010911041

main90109-11041

9010911049

main90109-11049

9010911051

main90109-11051

9017911010

main90179-11010

9056111008

main90561-11008

9090119040

main90901-19040

91511B0614

main91511-B0614

91512B1020

main91512-B1020

27 parts on this diagram · 2 diagrams in section
