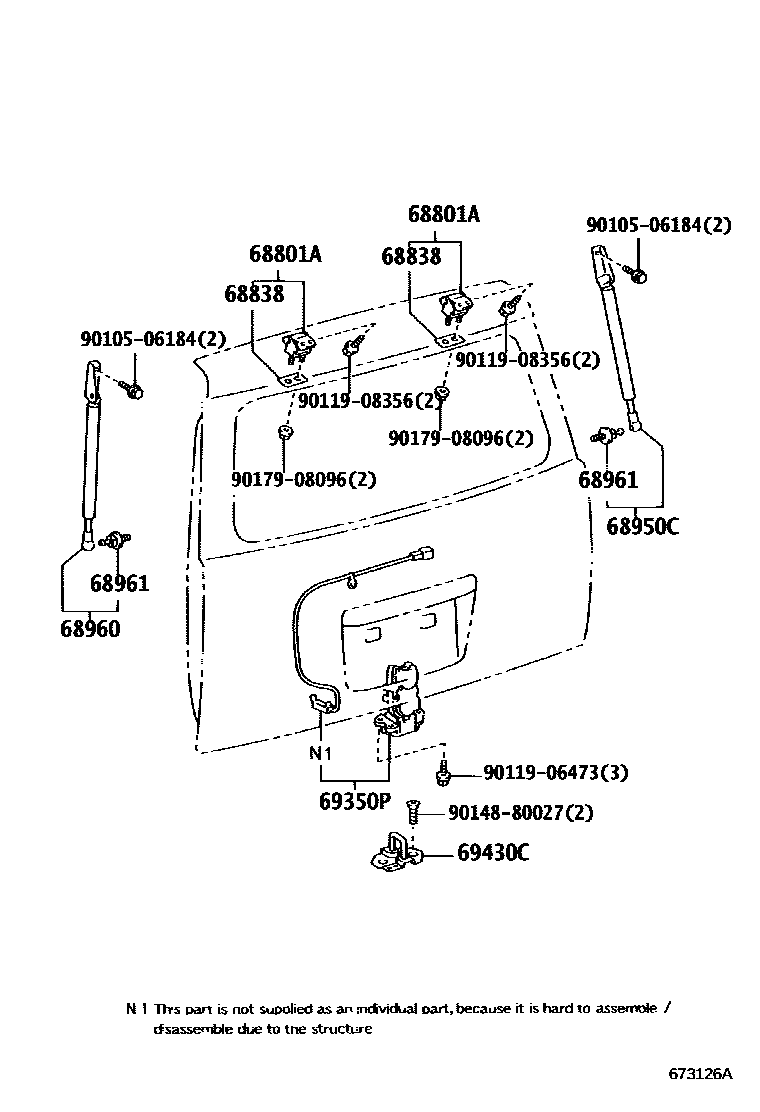

BACK DOOR LOCK & HANDLE

68801AHINGE SUB-ASSY, BACK DOOR, UPPER

main68801-52050×2iNCP31200304-200612

68838PAD, BACK DOOR HINGE, NO.1

main68838-52040×2iNCP31200304

T=1.6

main68838-52050×2iNCP31200304

T=2.0

68950CSTAY ASSY, BACK DOOR, RH

main68950-59135iNCP31200304

68960STAY ASSY, BACK DOOR, LH

main68960-59105iNCP31200304

68961BOLT, BACK DOOR STAY

main68961-20140×2iNCP31200304-200512

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-52100iNCP31200304-200612

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-52020iNCP31200304

9010506184

main90105-06184

9011906473

main90119-06473

9011908356

main90119-08356

9014880027

main90148-80027

9017908096

main90179-08096

12 parts on this diagram · 1 diagram in section
