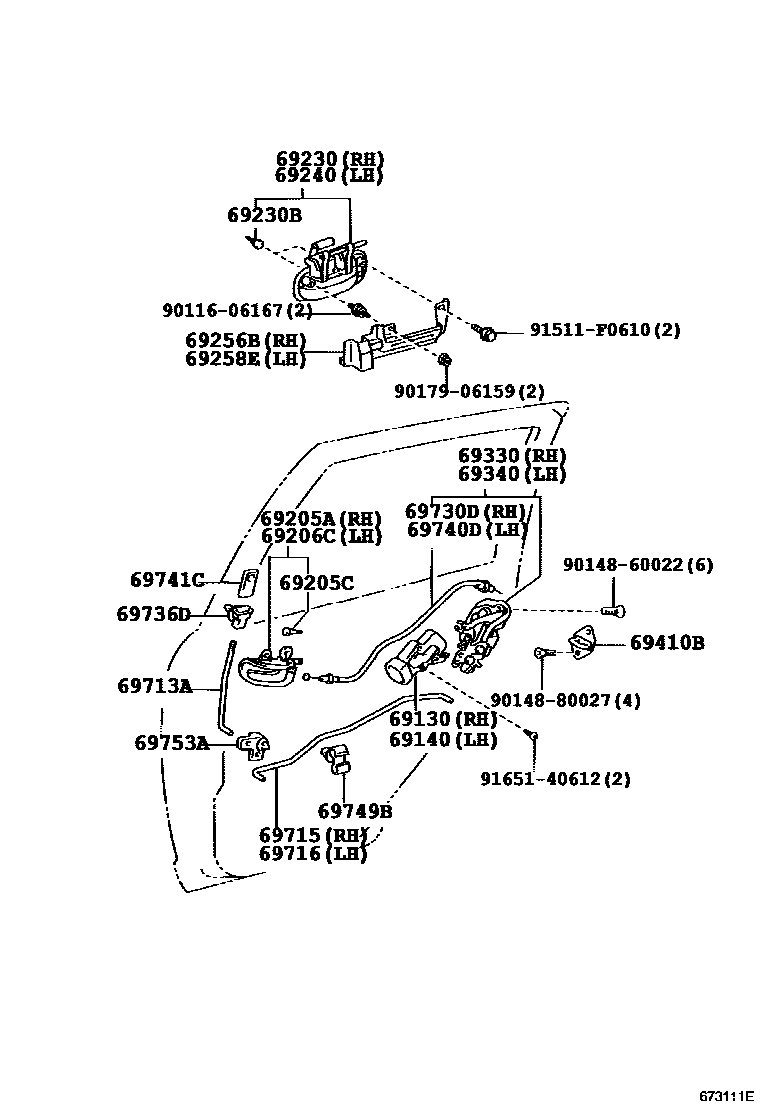

REAR DOOR LOCK & HANDLE
69130ACTUATOR ASSY, REAR DOOR LOCK, RH
69140ACTUATOR ASSY, REAR DOOR LOCK, LH
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
69230BCUSHION(FOR REAR DOOR OUTSIDE HANDLE)
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
69256BPROTECTOR, DOOR OUTSIDE HANDLE, LH
69258EPROTECTOR, DOOR OUTSIDE HANDLE, NO.2 LH
69330LOCK ASSY, REAR DOOR, RH
W(CHILD LOCK LEVER)
69340LOCK ASSY, REAR DOOR, LH
W(CHILD LOCK LEVER)
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69713ALINK, REAR DOOR LOCK REMOTE CONTROL, RH
69715LINK, REAR DOOR LOCKING CONTROL, NO.2 RH
69716LINK, REAR DOOR LOCKING CONTROL, NO.2 LH
69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
69736DGUIDE, REAR DOOR LOCKING LINK
69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
69741CKNOB, REAR DOOR LOCK CONTROL
69749BCLAMP, REAR DOOR LOCK LINK
69753ABELLCRANK, DOOR LOCK CONTROL
9011606167
main90116-06167
9014860022
main90148-60022
9014880027
main90148-80027
9017906159
main90179-06159
91511F0610
main91511-F0610
9165140612
main91651-40612
28 parts on this diagram · 1 diagram in section
