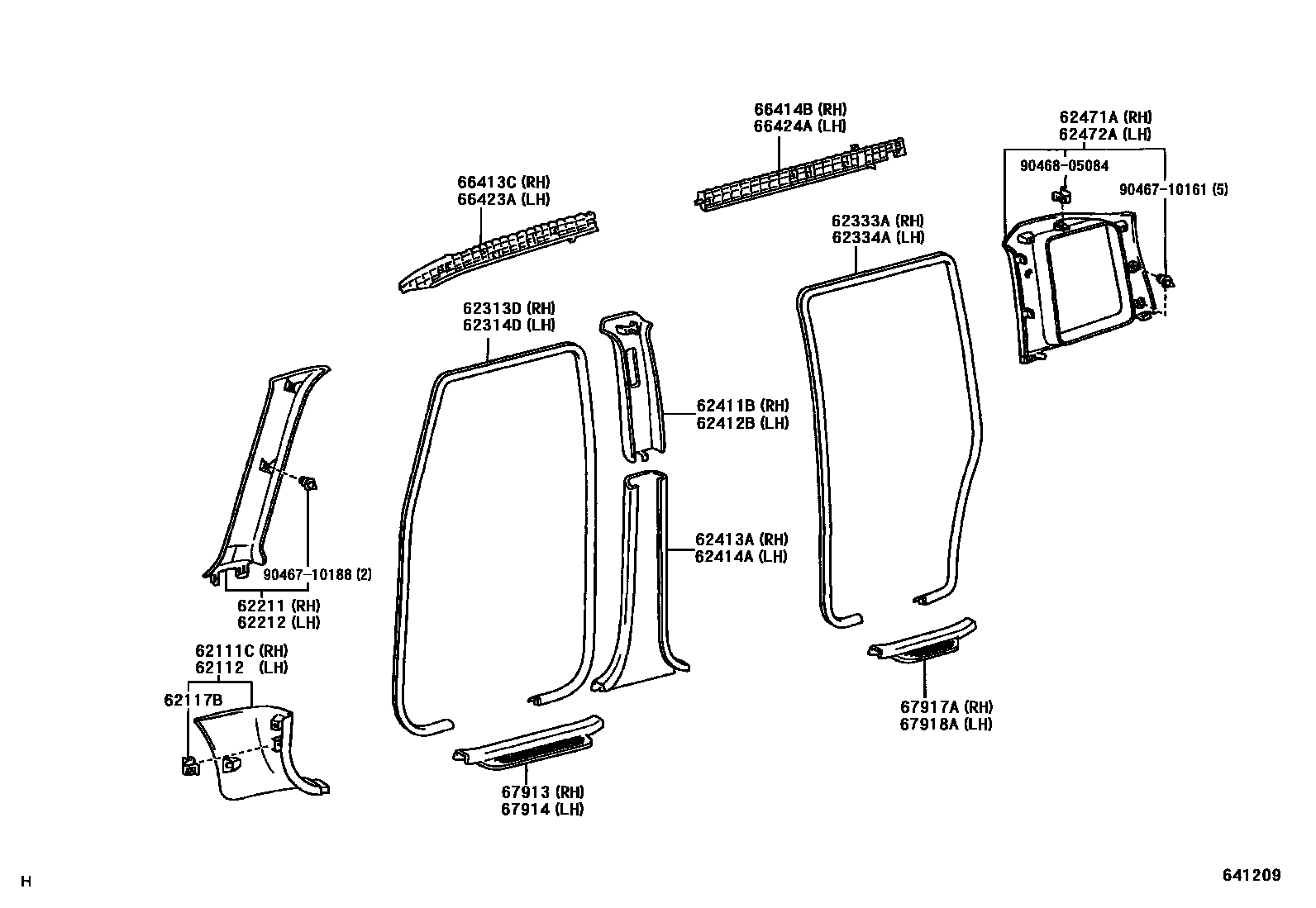

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING
62111CBOARD, COWL SIDE TRIM, RH
DK.GRAY,TRIM9#
62112BOARD, COWL SIDE TRIM, LH
DK.GRAY,TRIM9#
62117BCLIP, NO.1(FOR COWL SIDE TRIM)
62211GARNISH, FRONT PILLAR, RH
LT.GRAY,TRIM9#
62212GARNISH, FRONT PILLAR, LH
LT.GRAY,TRIM9#
62313DTRIM, FRONT DOOR OPENING, RH
BLACK,TRIM9#
62314DTRIM, FRONT DOOR OPENING, LH
BLACK,TRIM9#
62333ATRIM, REAR DOOR OPENING, RH
BLACK,TRIM9#
62334ATRIM, REAR DOOR OPENING, LH
BLACK,TRIM9#
62411BGARNISH, CENTER PILLAR, UPPER RH
LT. GRAY,TRIM9#
62412BGARNISH, CENTER PILLAR, UPPER LH
LT. GRAY,TRIM9#
62413AGARNISH, CENTER PILLAR, LOWER RH
DK.GRAY,TRIM9#
62414AGARNISH, CENTER PILLAR, LOWER LH
DK.GRAY,TRIM9#
62471AGARNISH, ROOF SIDE, INNER RH
LT.GRAY,TRIM9#
62472AGARNISH, ROOF SIDE, INNER LH
LT.GRAY,TRIM9#
66413CSPACER, SIDE RAIL, FRONT RH
66414BSPACER, SIDE RAIL, REAR RH
66423ASPACER, SIDE RAIL, FRONT LH
66424ASPACER, SIDE RAIL, REAR LH
67913PLATE, FRONT DOOR SCUFF, RH
DK.GRAY,TRIM9#
67914PLATE, FRONT DOOR SCUFF, LH
DK.GRAY,TRIM9#
67917APLATE, REAR DOOR SCUFF, RH
DK.GRAY,TRIM9#
67918APLATE, REAR DOOR SCUFF, LH
DK.GRAY,TRIM9#
9046710161
main90467-10161
9046710188
main90467-10188
9046805084
main90468-05084
26 parts on this diagram · 1 diagram in section
