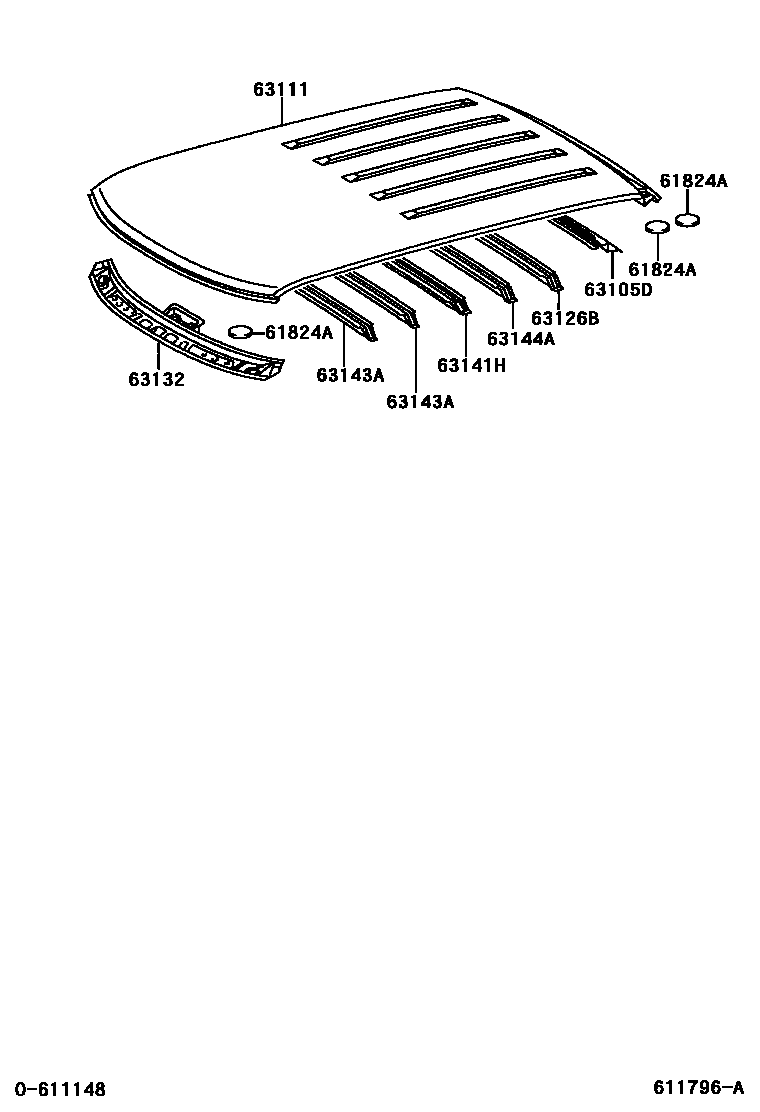

ROOF PANEL & BACK WINDOW GLASS

61824APLATE, NOISE CONTROL, NO.1

main61824-52010×6iNCP31200304

63105DFRAME SUB-ASSY, BACK WINDOW, UPPER

main63105-52030iNCP31200304-200612

63111PANEL, ROOF

main63111-52110iNCP31200304

63126BREINFORCEMENT, ROOF PANEL, REAR NO.2

main63126-52010iNCP31200304

63132PANEL, WINDSHIELD HEADER, INNER

main63132-52030iNCP31200304-200612

63141HREINFORCEMENT, ROOF PANEL, CENTER

main63141-52030iNCP31200304

63143AREINFORCEMENT, ROOF PANEL

main63143-52030×2iNCP31200304

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-52010iNCP31200304

8 parts on this diagram · 1 diagram in section
