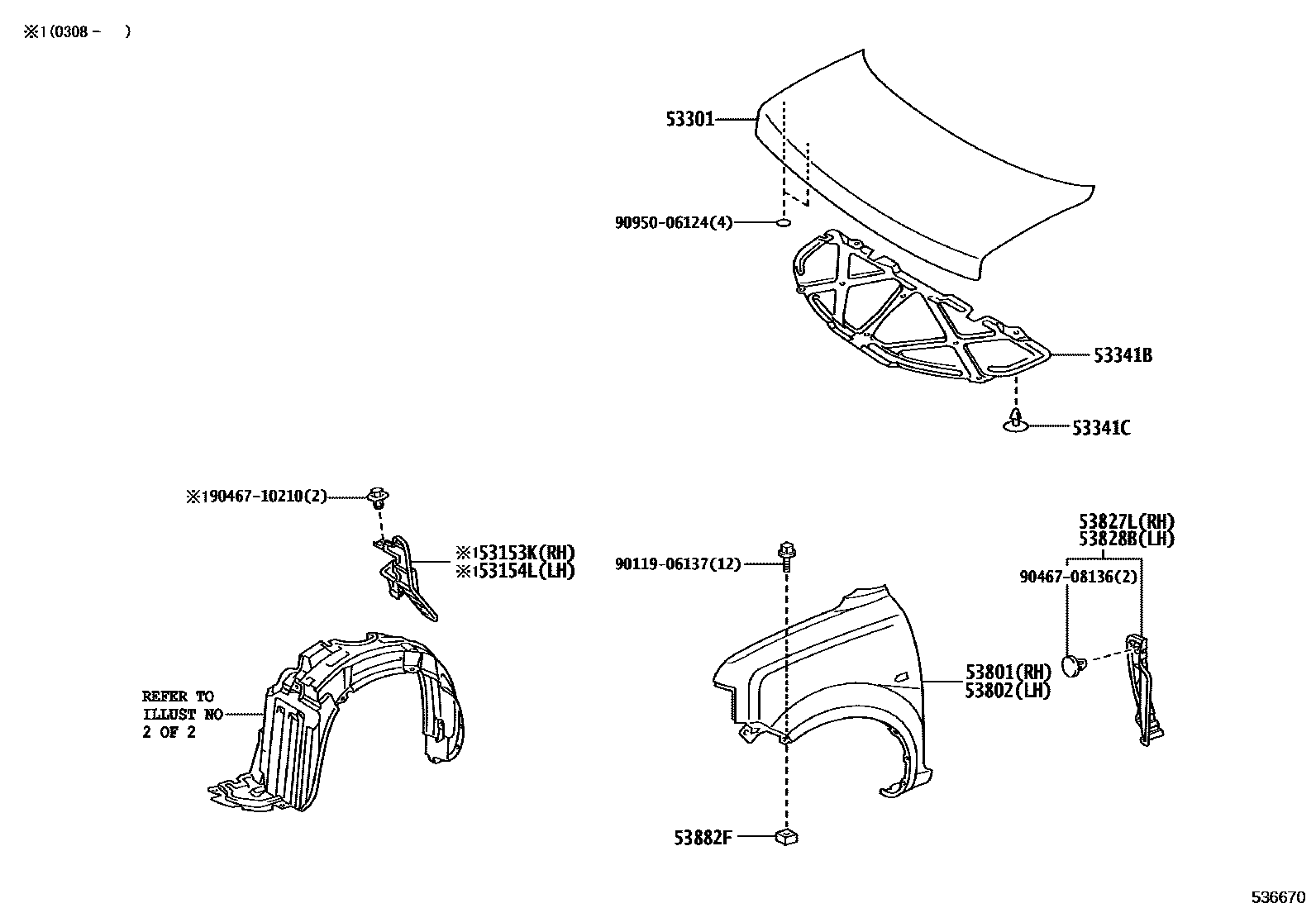

HOOD & FRONT FENDER

0001 1 0002 1FENDER LINER

53153KGUIDE, RADIATOR GRILLE SIDE AIR, RH

main53153-52010iNCP31200308

53154LGUIDE, RADIATOR GRILLE SIDE AIR, LH

main53154-52010iNCP31200308

53301HOOD SUB-ASSY

main53301-52190iNCP31200304-200612

53341BINSULATOR, HOOD

main53341-52031iNCP31200304-200508

main53341-52032iNCP31200509

53341CCLIP(FOR HOOD INSULATOR)

main90467-08124×8iNCP31200408

main90467-09050×8iNCP31200304-200408

53801FENDER SUB-ASSY, FRONT RH

main53801-52050iNCP31200304-200612

53802FENDER SUB-ASSY, FRONT LH

main53802-52050iNCP31200304-200612

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-52032iNCP31200304

53828BPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-52032iNCP31200304

53882FSEAL, FRONT FENDER

main53882-16030×8iNCP31200304

9011906137

main90119-06137

9046708136

main90467-08136

9046710210

main90467-10210

9095006124

main90950-06124

14 parts on this diagram · 2 diagrams in section
