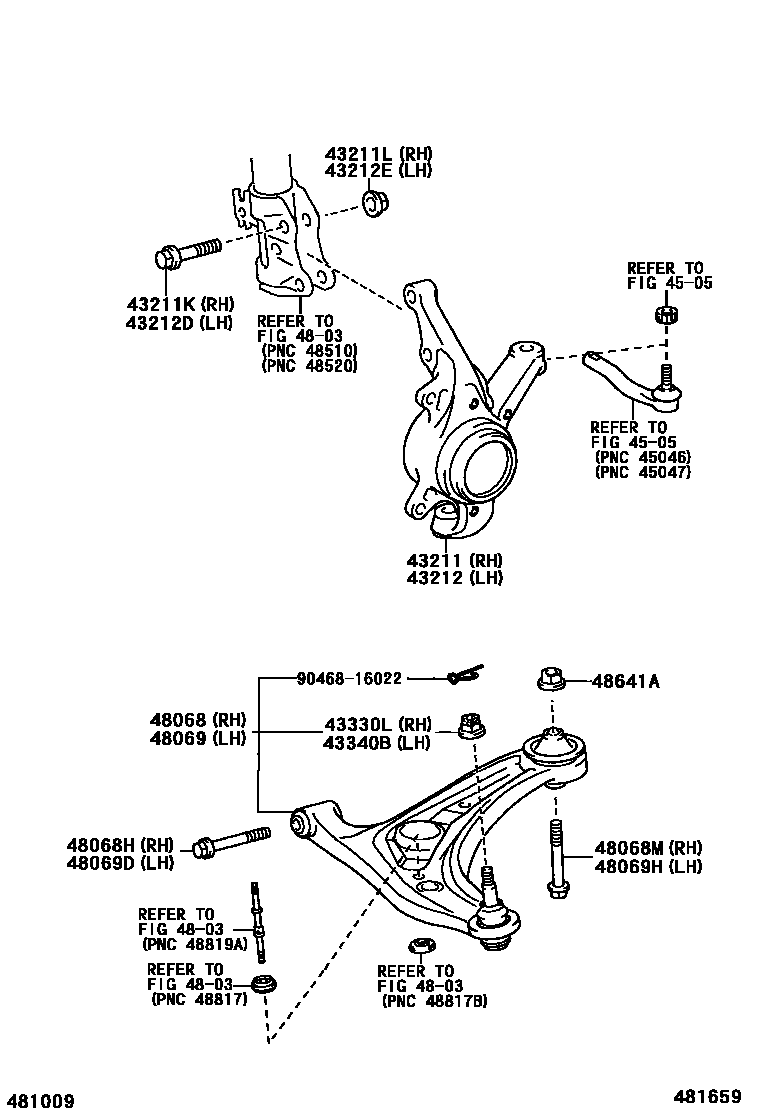

FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43211-52020iNCP31200304

43211KBOLT (FOR STEERING KNUCKLE RH)

main90105-14140iNCP31200304

OD=14

43211LNUT (FOR STEERING KNUCKLE RH)

main90179-14062iNCP31200304

43212KNUCKLE, STEERING, LH

main43212-52020iNCP31200304

43212DBOLT (FOR STEERING KNUCKLE LH)

main90105-14140iNCP31200304

OD=14

43212ENUT (FOR STEERING KNUCKLE LH)

main90179-14062iNCP31200304

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-12007iNCP31200304

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-12007iNCP31200304

4505

4803

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-19176iNCP31200304-200305

main48068-59065iNCP31200305

48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90119-12338iNCP31200304-200305

main90119-14086iNCP31200305

48068MBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main90119-12337iNCP31200304

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-19156iNCP31200304-200305

main48069-59065iNCP31200305

48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90119-12338iNCP31200304-200305

main90119-14086iNCP31200305

48069HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

main90119-12337iNCP31200304

48641ANUT(FOR SUSPENSION LOWER ARM SHAFT)

main90178-12009iNCP31200304

9046816022

main90468-16022

18 parts on this diagram · 1 diagram in section
