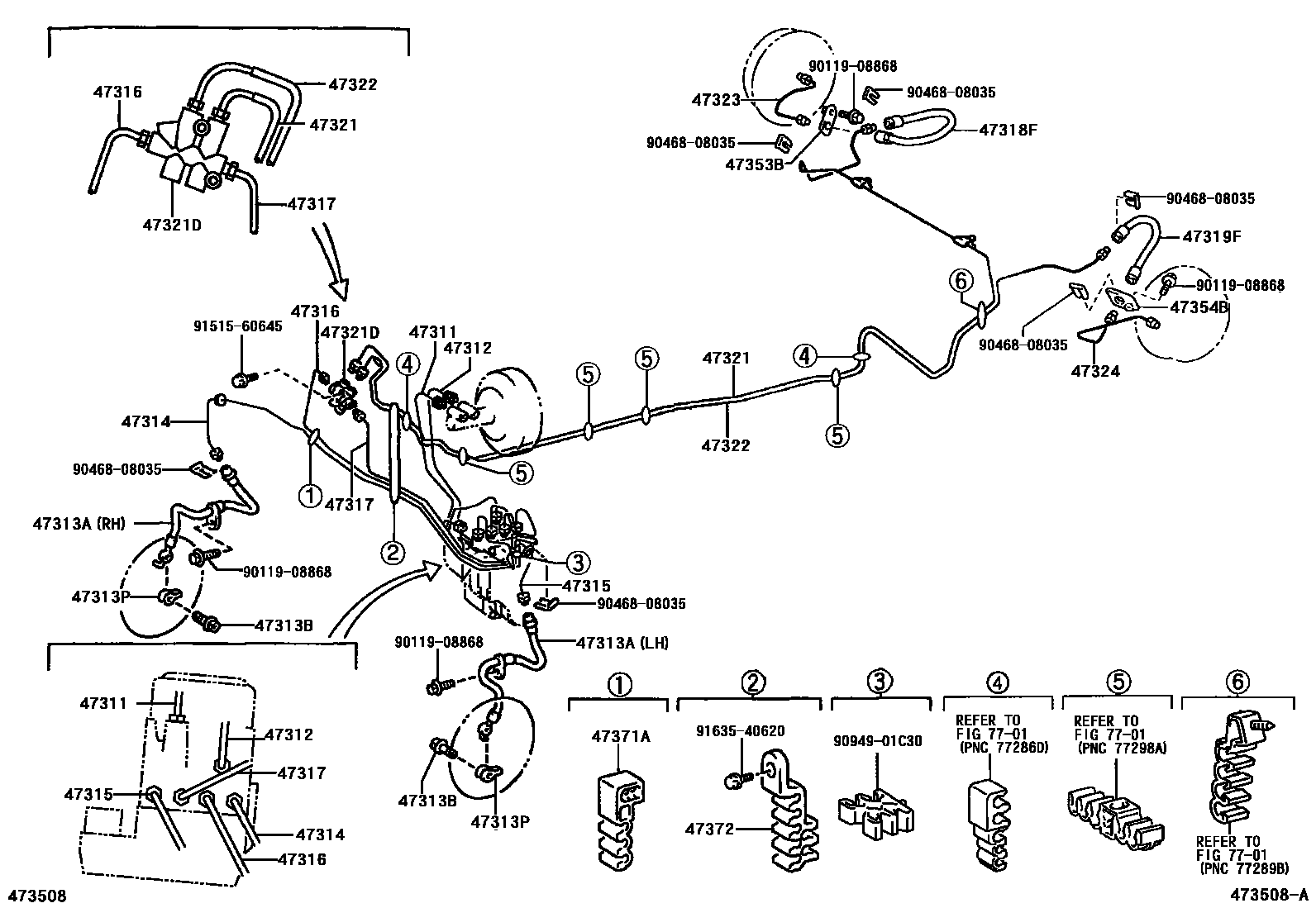

BRAKE TUBE & CLAMP

0001 1 0002 1

47311TUBE, FRONT BRAKE, NO.1

main47311-52150iNCP31200304

47312TUBE, FRONT BRAKE, NO.2

main47312-52140iNCP31200304

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02C31iNCP31200304-200308

RH

main90947-02C32iNCP31200304-200308

LH

main90947-02D76iNCP31200308

RH

main90947-02D77iNCP31200308

LH

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058×2iNCP31200304

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50020×2iNCP31200304

47314TUBE, FRONT BRAKE, NO.4

main47314-52081iNCP31200304

47315TUBE, FRONT BRAKE, NO.5

main47315-52081iNCP31200304

47316TUBE, FRONT BRAKE, NO.6

main47316-52061iNCP31200304

47317TUBE, FRONT BRAKE, NO.7

main47317-52061iNCP31200304

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02C30iNCP31200304-200612

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02C30iNCP31200304-200612

47321TUBE, REAR BRAKE, NO.1

main47321-52110iNCP31200304-200612

47321DWAY, NO.1(FOR REAR BRAKE TUBE)

main90904-12088iNCP31200304

47322TUBE, REAR BRAKE, NO.2

main47322-52200iNCP31200304-200612

47323TUBE, REAR BRAKE, NO.3

main47323-52090iNCP31200304-200612

47324TUBE, REAR BRAKE, NO.4

main47324-52080iNCP31200304-200612

47353BBRACKET, FLEXIBLE HOSE, NO.3

main47353-52010iNCP31200304-200612

47354BBRACKET, FLEXIBLE HOSE, NO.4

main47354-52010iNCP31200304-200612

47371ACLAMP, BRAKE TUBE, NO.1

main47371-52010iNCP31200304

47372CLAMP, BRAKE TUBE, NO.2

main47372-52010iNCP31200304
