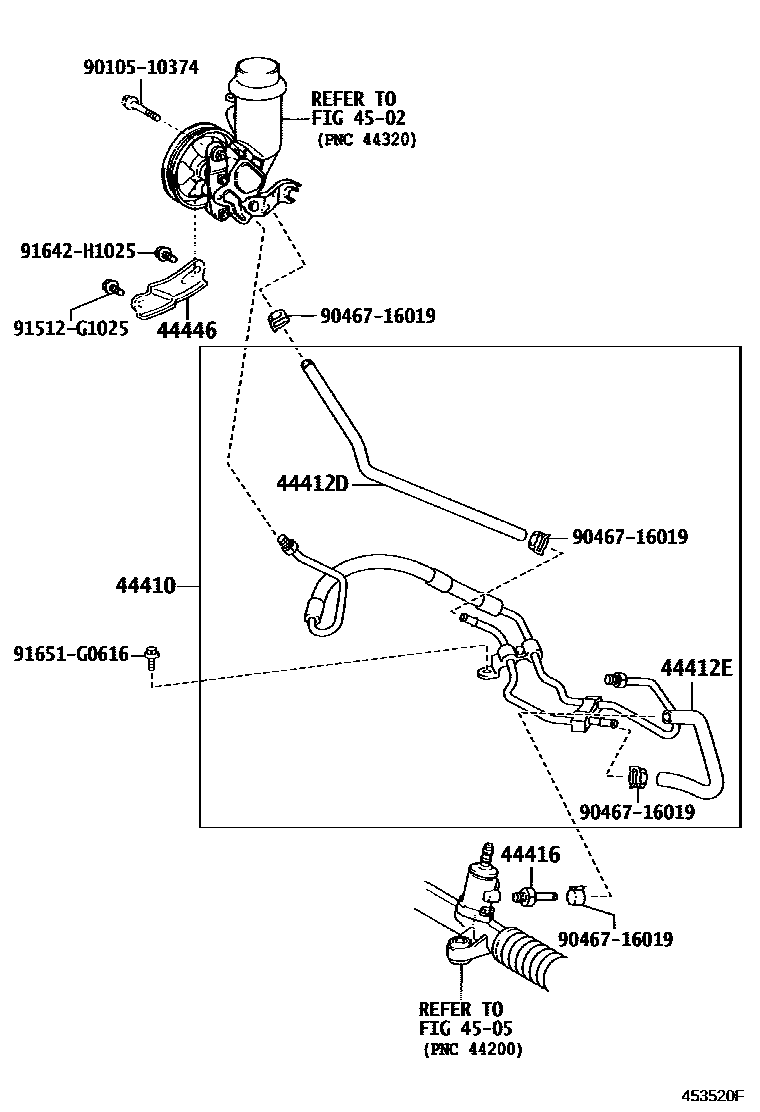

POWER STEERING TUBE

44410TUBE ASSY, PRESSURE FEED

main44410-52041iNCP31200304

44412DHOSE, RETURN, NO.1

main44412-52020iNCP31200304-200612

44412EHOSE, RETURN, NO.2

main44412-52030iNCP31200304-200612

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-52010iNCP31200304

44446STRUT, ADJUSTING

main44446-52010iNCP31200304

4502VANE PUMP & RESERVOIR (POWER STEERING)

→ Go to FIG 45-02

4505FRONT STEERING GEAR & LINK

→ Go to FIG 45-05

9010510374

main90105-10374

9046716019

main90467-16019

91512G1025

main91512-G1025

91642H1025

main91642-H1025

91651G0616

main91651-G0616

12 parts on this diagram · 1 diagram in section
