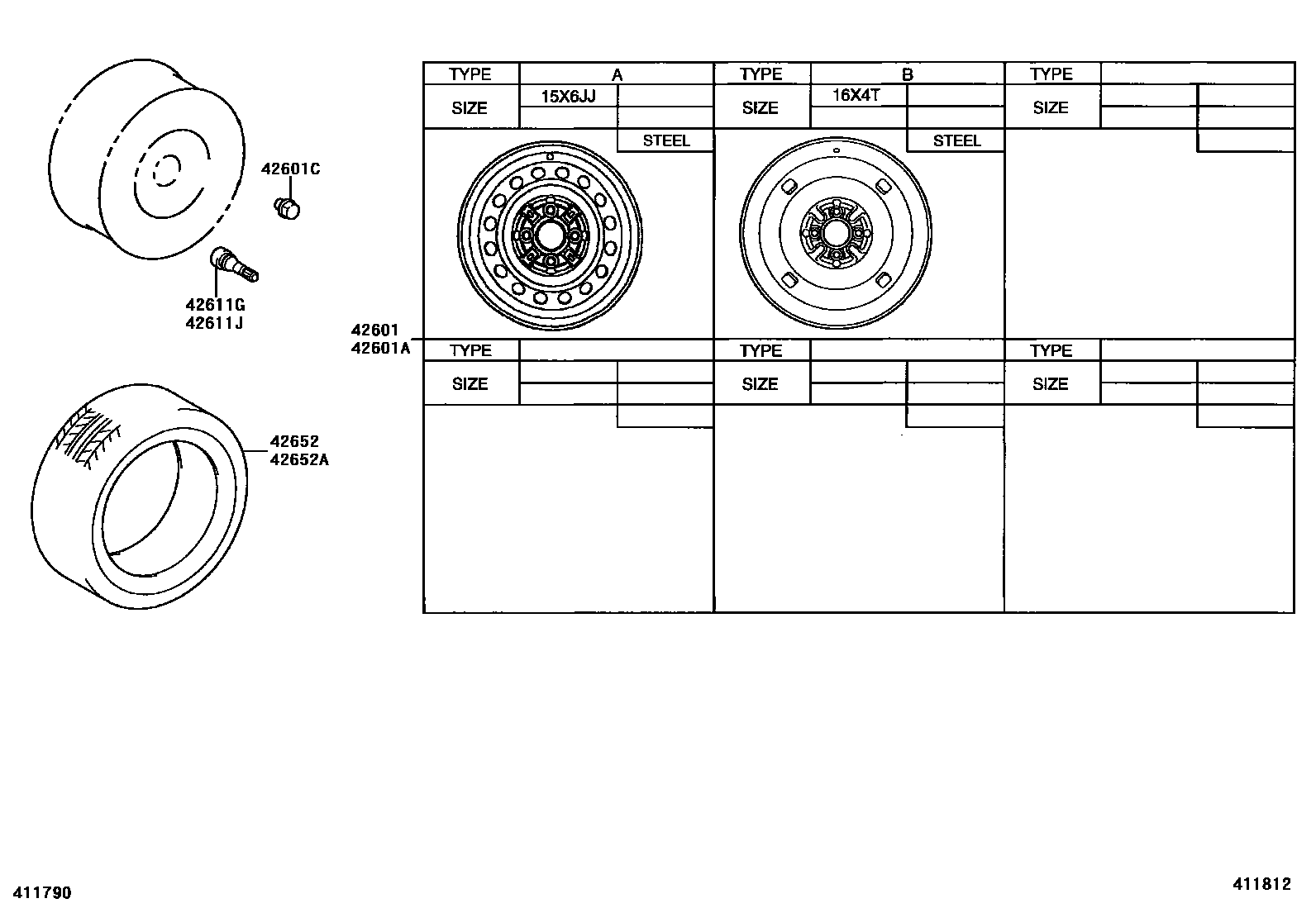

DISC WHEEL & WHEEL CAP

0001 1 0002 1

42601WHEEL, DISC

main42611-52120×4iNCP31200304

15X6JJ,#,TYPE A:REFER ILLUST.

42601AWHEEL, DISC (FOR SPARE)

main42611-52400iNCP31200304

16X4T,TYPE B:REFER ILLUST.

42601CNUT, HUB (FOR AXLE)

main90942-01007×16iNCP31200304

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×4iNCP31200304

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iNCP31200304

42652TIRE

main42652-52450×4iNCP31200304-200612

185/60R15

42652ATIRE (FOR SPARE)

main42652-13120iNCP31200510-200612

T125/70D16,*D/L

7 parts on this diagram · 2 diagrams in section
