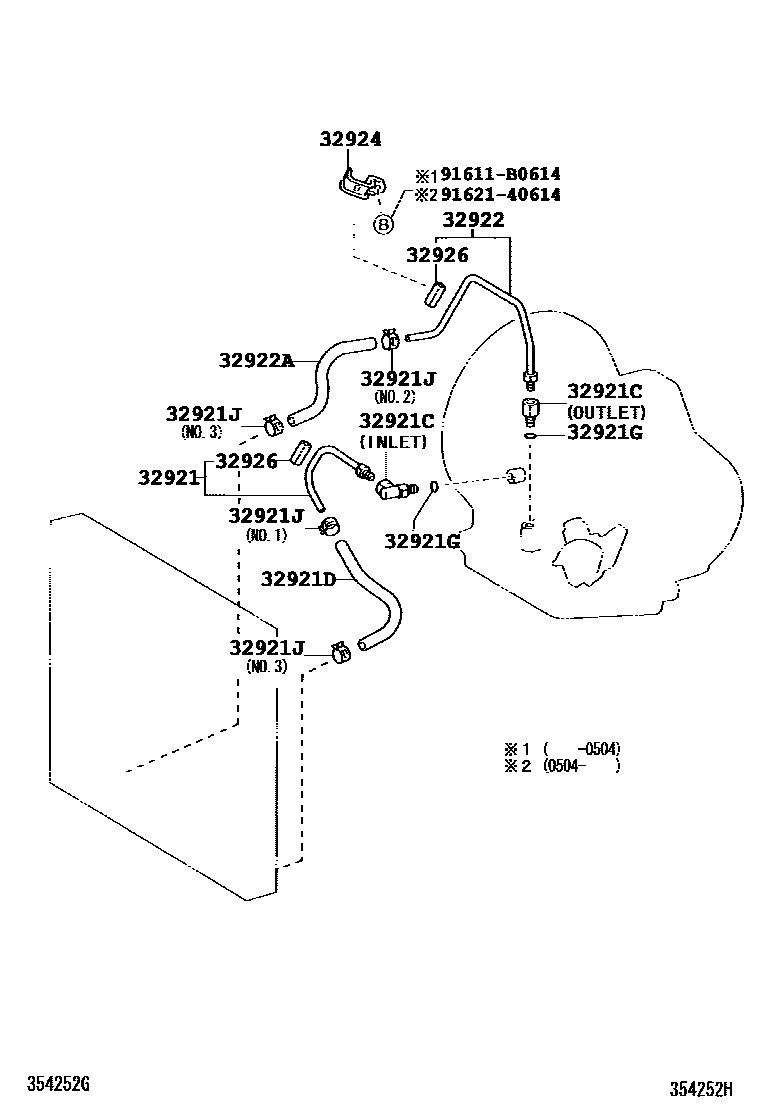

OIL COOLER & TUBE (ATM)

32921TUBE, OIL COOLER INLET, NO.1

main32921-52060iNCP31..ATM200304

32921CUNION(FOR OIL COOLER TUBE)

main90404-14007iNCP31..ATM200304-200612

OUTLET

main90407-14003iNCP31..ATM200304-200612

INLET

32921DHOSE(FOR OIL COOLER INLET)

main90445-15046iNCP31..ATM200304-200612

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189×2iNCP31..ATM200304

32921JCLIP(FOR OIL COOLER HOSE)

main96135-51300×4iNCP31..ATM200304-200403

NO.1 & NO.2 & NO.3

main96137-41501×2iNCP31..ATM200611-200612

NO.3

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-52060iNCP31..ATM200304

32922AHOSE(FOR OIL COOLER OUTLET)

main90445-15044iNCP31..ATM200304-200612

32924CLAMP, OIL COOLER TUBE, NO.2

main32924-20100iNCP31..ATM200304-200504

main32924-52010iNCP31..ATM200504-200608

main32924-52030iNCP31..ATM200609

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-10010×2iNCP31..ATM200304

L=30,ID=8

91611B0614

main91611-B0614

9162140614

main91621-40614

11 parts on this diagram · 1 diagram in section
