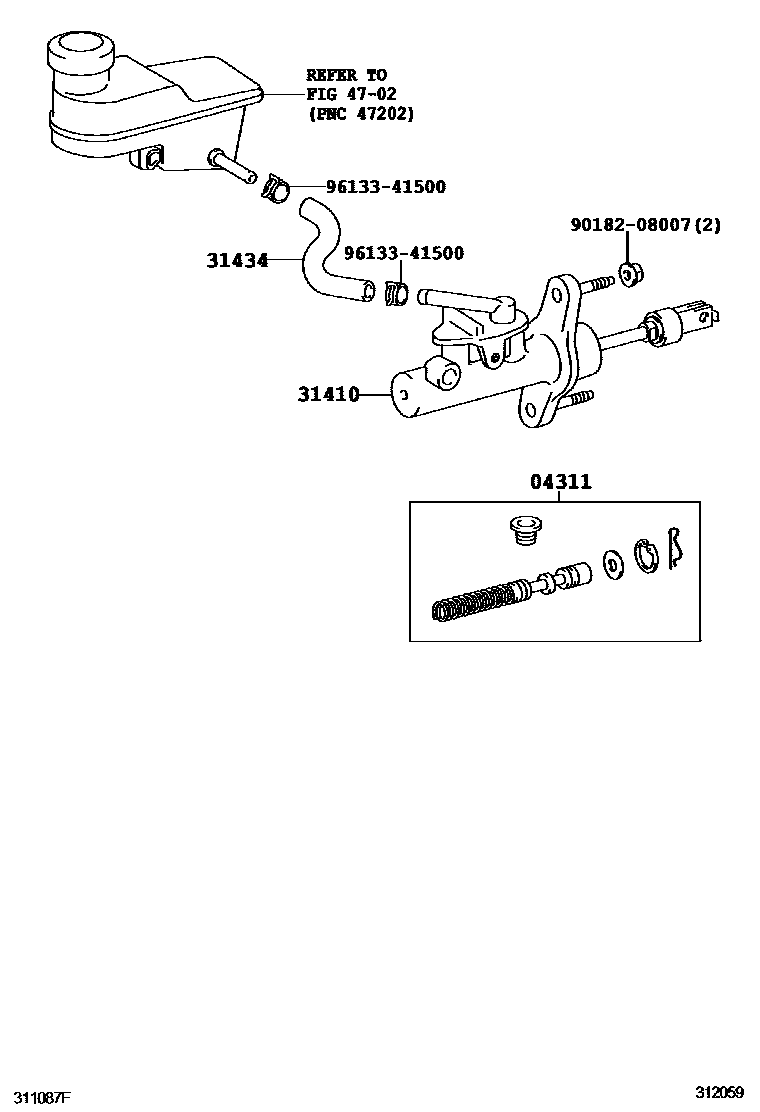

CLUTCH MASTER CYLINDER

04311CYLINDER KIT, CLUTCH MASTER

main04311-12110iNCP31..MTM200304

31410CYLINDER ASSY, CLUTCH MASTER

main31420-52040iNCP31..MTM200304

31434TUBE, CLUTCH RESERVOIR

main31434-52020iNCP31..MTM200312-200401

main31434-52110iNCP31..MTM200304-200312

main31434-52130iNCP31..MTM200402

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

9018208007

main90182-08007

9613341500

main96133-41500

6 parts on this diagram · 1 diagram in section
