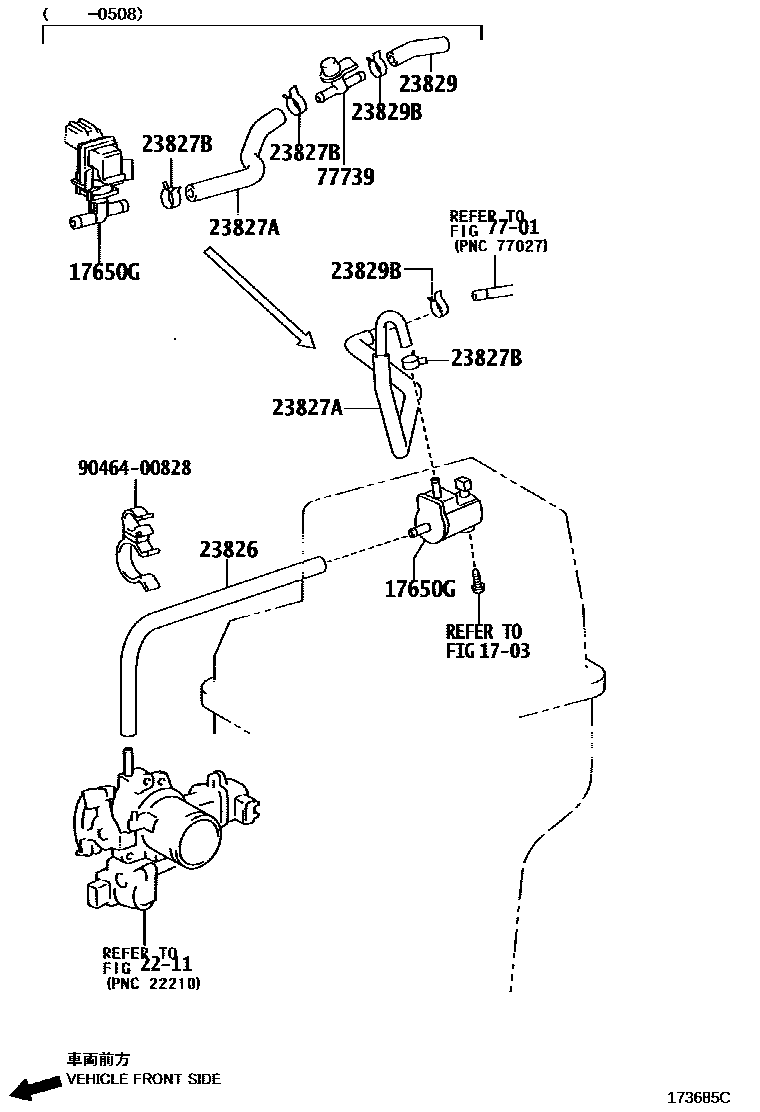

VACUUM PIPING

1703AIR CLEANER

→ Go to FIG 17-03

17650GVALVE, DUTY VACUUM SWITCHING

main90910-12263i1NZFE..NCP31200304-200508

main90910-12276i1NZFE..NCP31200508

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

23826HOSE, FUEL VAPOR FEED, NO.1

main95328-07036i1NZFE..NCP31200304

23827AHOSE, FUEL VAPOR FEED, NO.2

main23827-21020i1NZFE..NCP31200304-200508

main23827-21110i1NZFE..NCP31200508

23827BCLIP(FOR FUEL VAPOR FEED HOSE, NO.2)

main96132-51300×2i1NZFE..NCP31200304-200508

23829HOSE, FUEL VAPOR FEED, NO.3

main23829-21020i1NZFE..NCP31200304-200508

23829BCLIP(FOR FUEL VAPOR FEED HOSE)

main96132-51300×2i1NZFE..NCP31200304-200508

7701FUEL TANK & TUBE

→ Go to FIG 77-01

77739VALVE, EVAP SERVICE PORT

main77739-33010iNCP31200304-200508

9046400828

main90464-00828

11 parts on this diagram · 1 diagram in section
